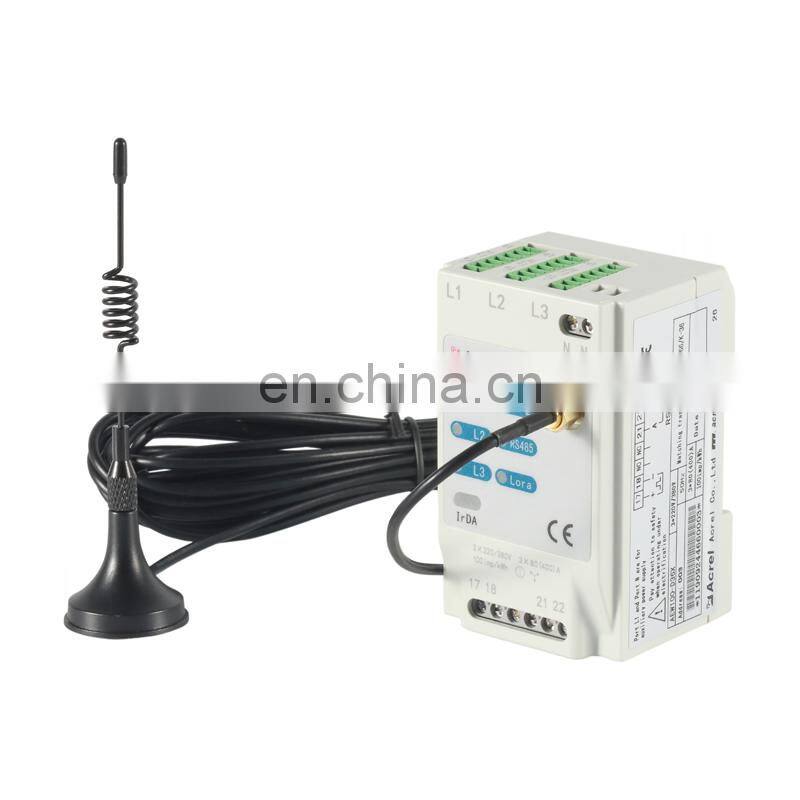

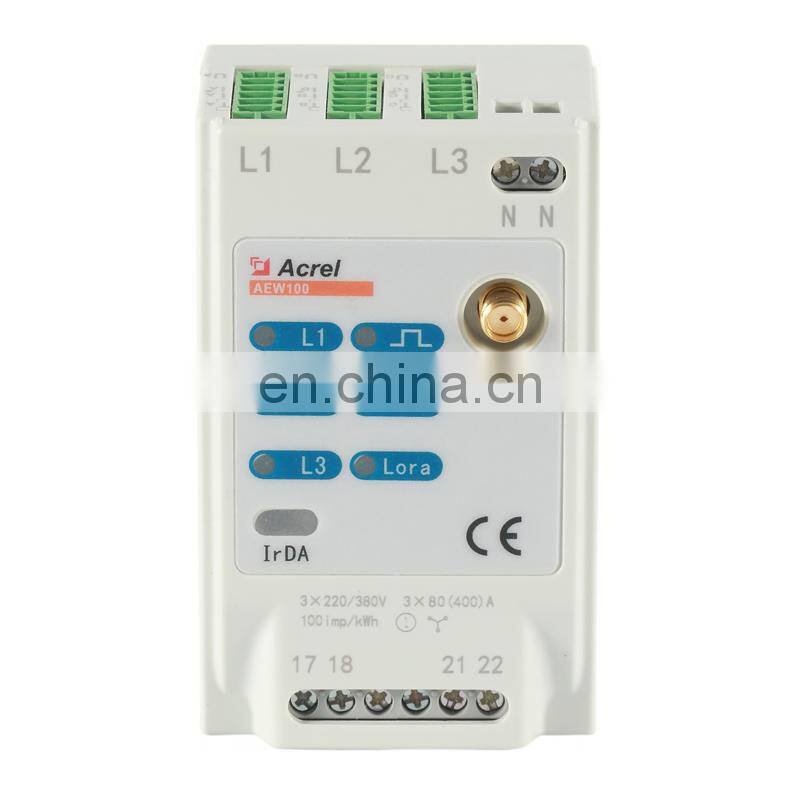

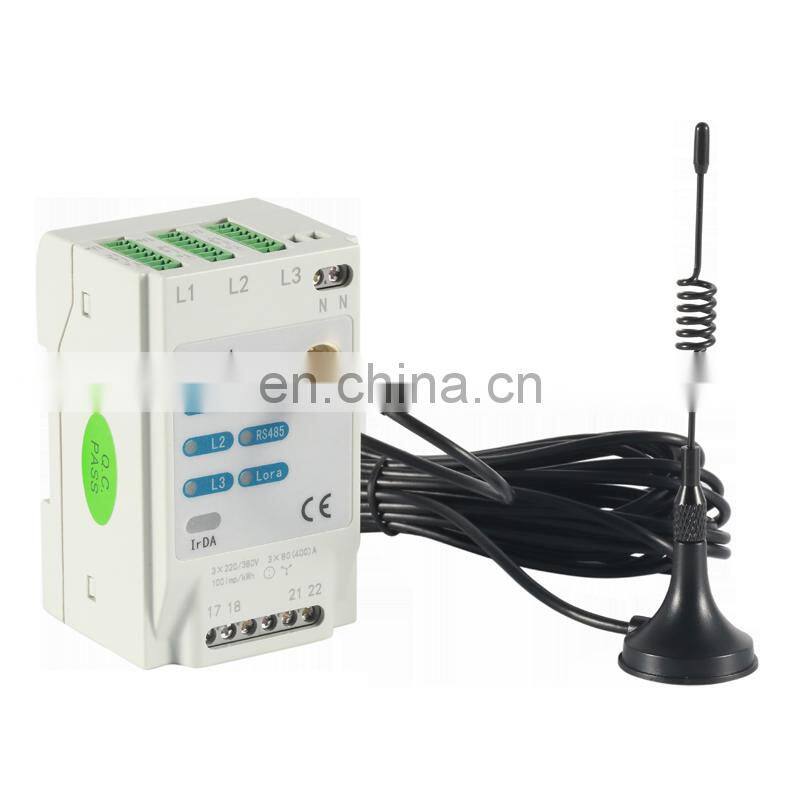

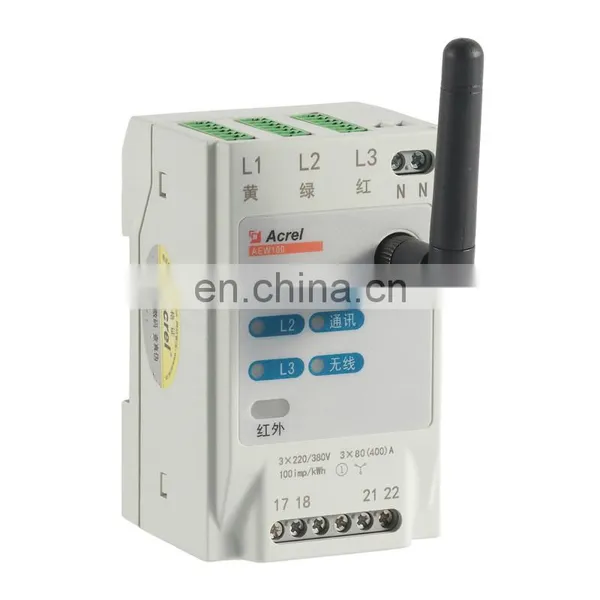

AEW100 Wireless Power Meter
|
|
AEW 100 is a multifunction power meter. There are functions like RS485 communication and Lora communication on 470MHz. With build-in MODBUS-RTU protocol, AEW100 can match most of the system integrate requirement. AEW100 has the advantage of higher accuracy, more compact and easy installing. |
| Information | parameter | Company profile | Certificate |
Characteristic
* Communication: Wireless transmission on 470MHz
Infrared communication
Communication interface: RS485
* Rated U and I: 3×220/380V,3×20(100)A, 3×40(200)A
Function
|
Accuracy : 1 Class Frequency : Range:45Hz~60Hz Energy metering Active kWh (positive and negative) Electrical measurement : U,I, P,Q,S,PF,F Pulse output : Active pulse output LED display(L1,L2,L3)powered display, pulse, communication, wireless status
|
|
|

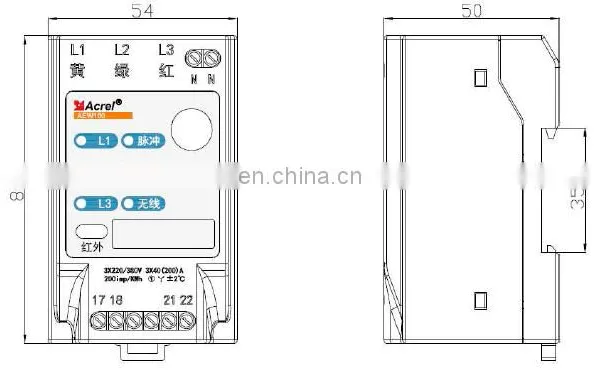

Dimension(L*W*H)
88*54*50mm
Wireless
Transmission on 470MHz and maximum distance in open space is 1km
Starting current: 0.4%Ib
|

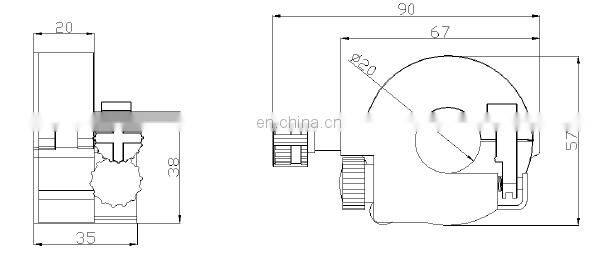

Split core current transformer

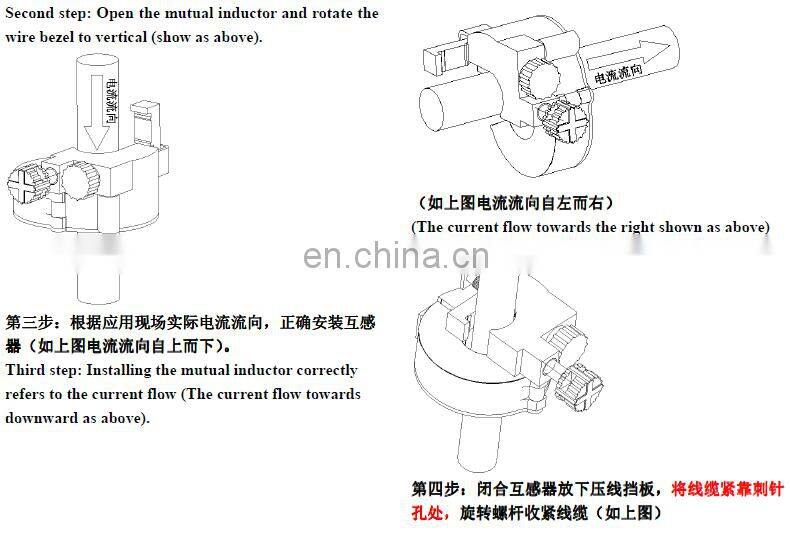

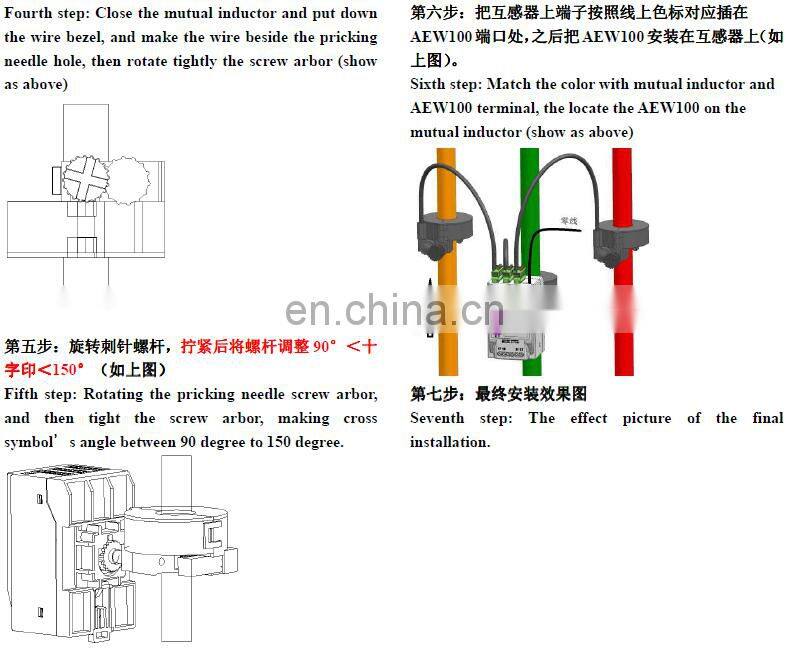

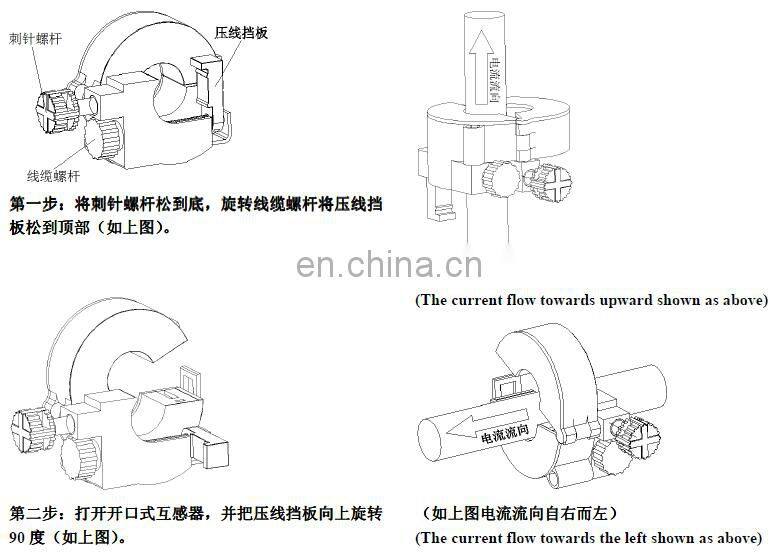

Installing description
| Information | parameter | Company profile | Certificate |
Parameter
| Information | parameter | Company profile | Certificate |
About us
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
| Information | parameter | Company profile | Certificate |

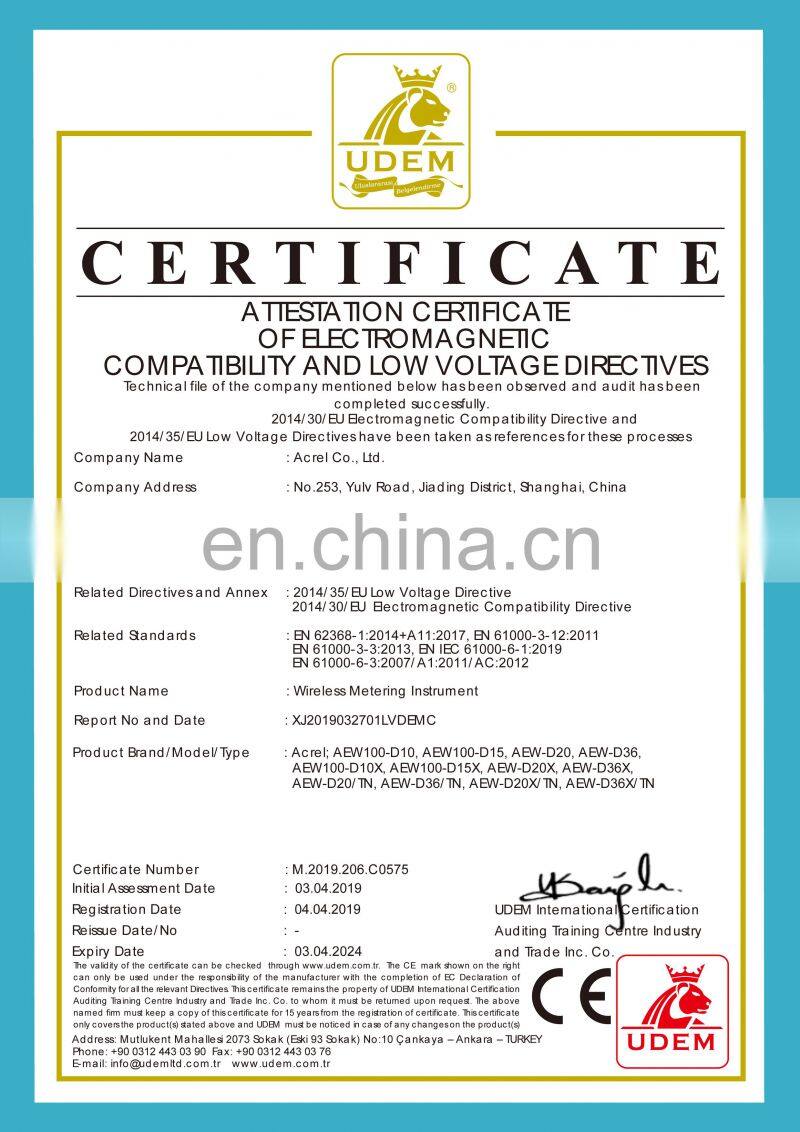

Certificate
Packing
Shipping
