ADW300 Wireless Meter
|
|
ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads. |
| Information | parameter | Company profile | Certificate |
Characteristic
* Rated U and I: 3×220/380V,3×380V, 3×57.7/100V,3×100V
*Display: LCD dispaly
| Option Functions |
* Communication: RS485(Modbus-RTU)
* K : 4DI/2DO
* T : 4 Channels temperature measure
* L : 1 Channel residual current measure
* LR : Lora wireless communication
* 2G : 2G wireless communication
* NB : NB -IOT wireless communication

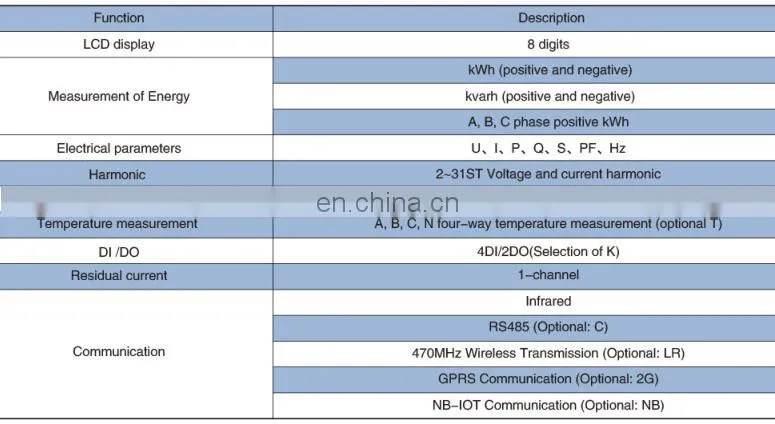

Function
|
Accuracy Active energy: Class 0.5S Reactive energy: Class 2 Frequency 50/60HZ(Optional),range: 45~65HZ Pulse output Active pulse output and Reactive pulse output(or Clock pulse output) Consumption <10VA (Single phase)
|
|
|
Dimension(L*W*H)
72*87.8*71.5mm
Starting current
0.4%Ib
|
| Information | parameter | Company profile | Certificate |

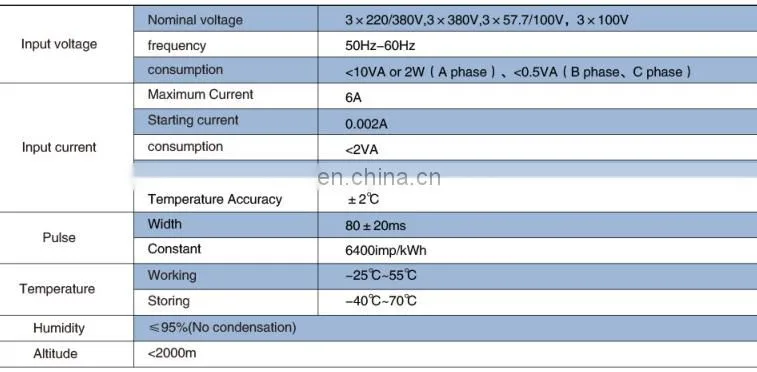

Parameter
| Quotation |
| Information | parameter | Company profile | Certificate |
About us
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
