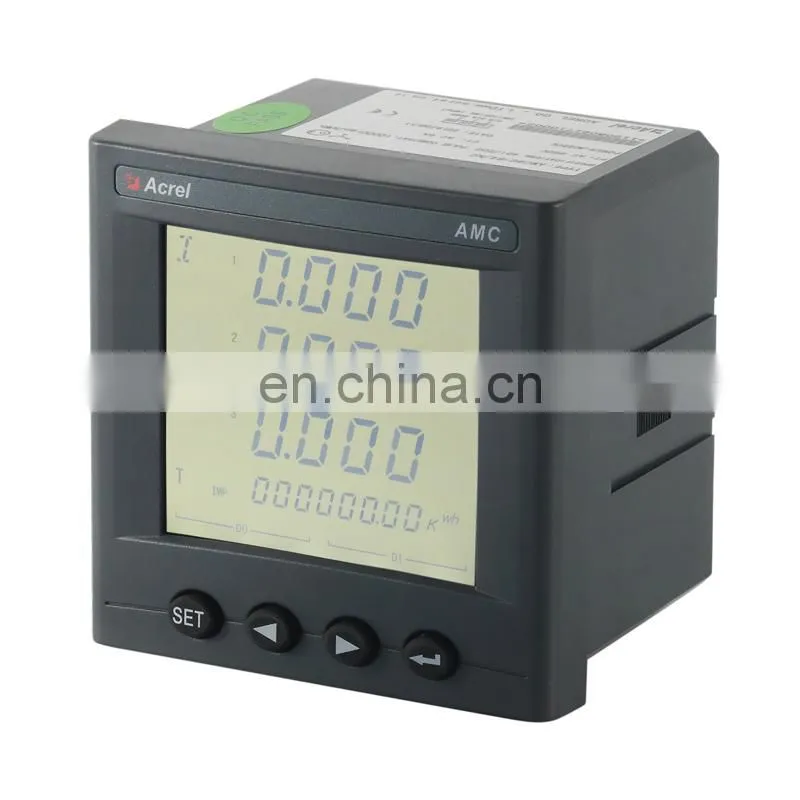

AMC96L-E4/KC intelligent power collection and monitoring device
|
|
* Four keys to communication and set parameters
* Checks the 31st harmonic content and total harmonic content
* Accuracy for Voltage,current and power:class 0.5s,Active powe:class 0.5s,Reactive power:class 2
|
| Information | parameter | Company profile | Certificate |
Characteristic
* Communication: RS485, Modbus-RTU DL/T645-07/97
* Display: 8 digits LCD display U,I,P,Q,PF,kWh and other energy consumption,power measure
* Rated U and I: Voltage:AC 3×100,3×380,3×57.7/100V,3×220/380V;Current:AC 1A,5A

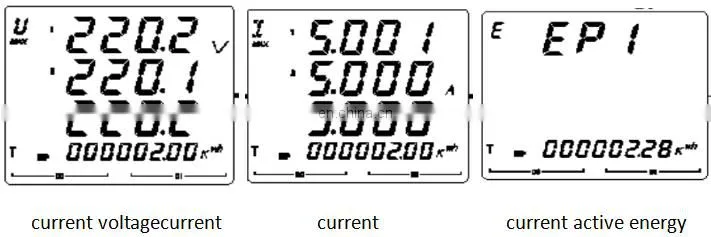

LCD Display
Function
|
Accuracy active energy:Class 0.5S Frequency Range: 45-65Hz Power Supply AC/DC 85-265V Pulse output 1600-160000imp/kWh Input consumption Voltage:Power consumption: <0.5VA; |
|
|
Installation
Embedded installing
Dimension(L*W*H)
Faceplate(L×W):96*96mm
Cutout(L×W):92*92mm Housing(L×W×H):90*90*77.8mm Switch relay
DC 30V/3A AC 220V/3A
Starting current
0.1%
|
Wiring
Typical connection
| Information | parameter | Company profile | Certificate |

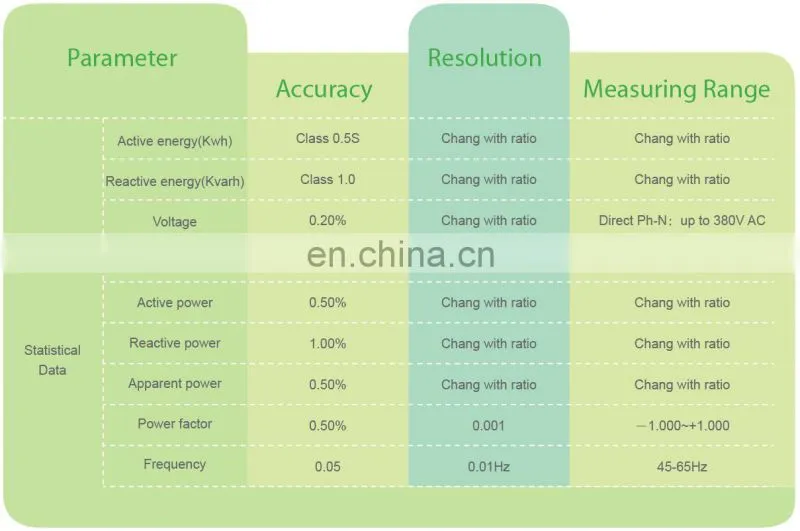

Parameter
| Information | parameter | Company profile | Certificate |
About us
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
| Information | parameter | Company profile | Certificate |
Certificate
Packing
Shipping
