IEC61032 Figure 9 Short Pin Test Probe 13 With CNAS Calibration Certificate
US$ 60 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-TP13
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
1 days
Related Products
-
IEC61032 Figure 10 Test Probe 14US$ 90 - 400MOQ: 1 Piece -
IEC61032 Figure 11 Test Probe 17US$ 60 - 400MOQ: 1 Piece
-
IEC61032 Figure 12 Small Child Finger Probe Test Probe 18US$ 60 - 200MOQ: 1 Piece
-
IEC61032 Figure 13 Children Finger Probe Test Probe 19 With 5.6mm FingerUS$ 60 - 400MOQ: 1 Piece
-
IEC61032 Figure 14 Test Corn Probe 31US$ 60 - 400MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PG-TP13
Power
Other, None
Usage
Universal Testing Machine
IEC61032 Figure 9 Short Pin Test Probe 13 with CNAS Calibration Certificate
1. Introduction:
It is designed according to IEC61032 figure 9. The pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536)
2. Specification:
diameter of test pin |
head 3mm, bottom 4mm |
length of test pin |
15mm |
diameter of baffle |
25mm |
thickness of baffle |
4mm |
material |
insulating material, metal |

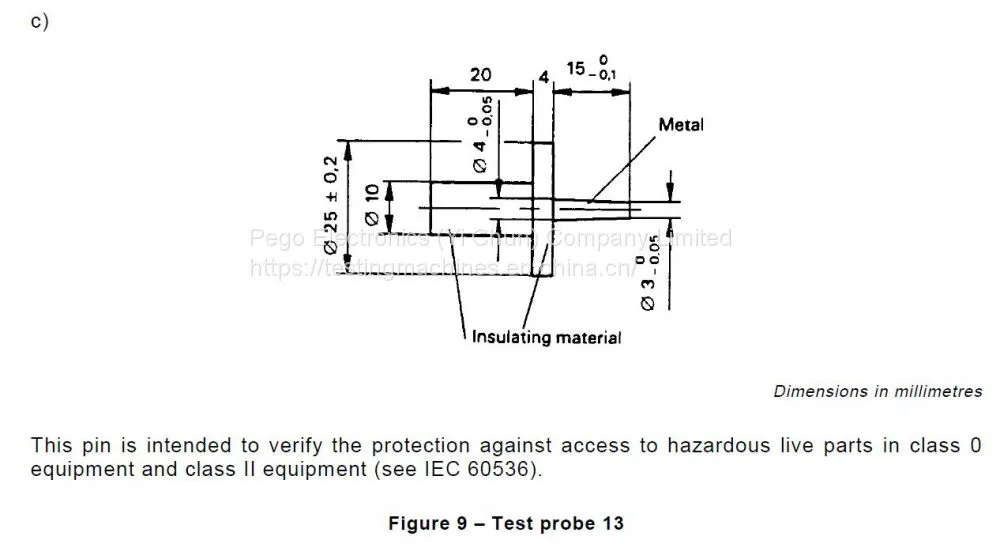

3. Picture:
