IEC61032 Finger Test Probe Figure 8 Test Probe 12
US$ 60 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-TP12
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
1 days
Related Products
-
IEC61032 Figure 9 Short Pin Test Probe 13 With CNAS Calibration CertificateUS$ 60 - 400MOQ: 1 Piece -
IEC61032 Figure 10 Test Probe 14US$ 90 - 400MOQ: 1 Piece
-
IEC61032 Figure 11 Test Probe 17US$ 60 - 400MOQ: 1 Piece
-
IEC61032 Figure 12 Small Child Finger Probe Test Probe 18US$ 60 - 200MOQ: 1 Piece
-
IEC61032 Figure 13 Children Finger Probe Test Probe 19 With 5.6mm FingerUS$ 60 - 400MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PG-TP12
Power
Other, None
Usage
Universal Testing Machine
IEC61032 Finger Test Probe Figure 8 Test Probe 12
1. Introduction：
It is designed according to IEC61032 figure 8. This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.

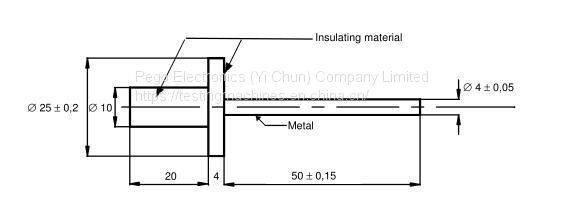

2. Specification:
diameter of test probe |
4mm |
length of test probe |
25mm |
diameter of baffle |
25mm |
thickness of baffle |
4mm |
Material |
Insulating material (handle), metal (test probe) |
3. Picture:
