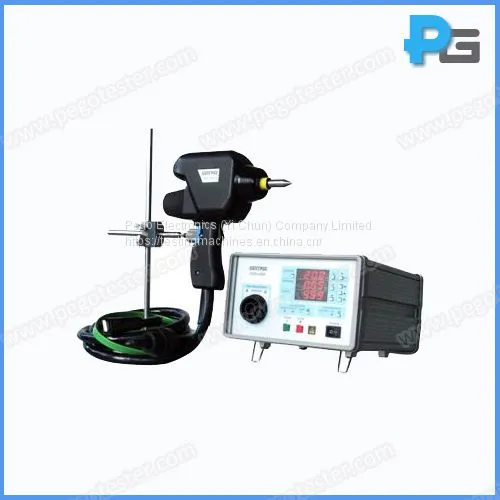

IEC61000-4-2 Electrostatic Discharge Generator
1. Introduction:
ESD simulator (ESD gun) is completely meet the requirements of IEC61000-4-2 and GB/T17626.2. The ESD generator is designed for the assessment of electrical and electronic equipment to withstand ESD performance. Electrostatic discharge generator is widely apply to the fields of industry control equipment, household appliance, chemical electronics,communication electronics,components, auto control equipment and etc.
2. Features:
1) The air discharge completely meet the standard requirement to keep the voltage for 5s above, and do not affect by air humidity, with good repeatability.
2) LCD touch screen, easy to operate and simple to update the software.
3) Built in IEC standard voltage, with auto trigger and user-defined function.
4) HV protection, over current protection and short circuit protection.
5) With 1000 groups memories.
3. Parameters:
Model |
ESD-2000Q |
ESD-2005Q |
|
Output voltage |
Contact discharge |
0.1－20kV ±3％ |
0.1－30kV ±3％ |
Air discharge |
0.1－20kV ±3％ |
0.1－30kV ±3％ |
|
Holding time |
>5s |
||
Polarity of output voltage |
Positive, negative, positive/negative auto |
||
Trigger mode |
Single,counting,20pps,other |
||
Discharge interval: |
0.05~99.99s |
||
Numbers of discharge: |
1~9999 |
||
Energy storage capacitance: |
150pF ±10％(replaceable) |
||
Discharge resistor: |
330Ω ±10％（replaceable) |
||
Waveform of contact discharge |
Meet the standards of EN/IEC 61000-4-2，GB/T 17626.2 |
||
Rising time: |
0.8ns ±25％ |
||
First peak current |
7.5A ±15％ @ 2kV |
15A ±15％ @ 4kV |
|
22.5A ±15％ @ 6kV |
30A ±15％ @ 8kV |
||
Current at 30ns |
4.0A ±30％ @ 2kV |
8.0A ±30％ @ 4kV |
|
12.0A ±30％ @ 6kV |
16.0A ±30％ @ 8kV |
||
Current at 60ns |
2.0A ±30％ @ 2kV |
4.0A ±30％ @ 4kV |
|
6.0A ±30％ @ 6kV |
8.0A ±30％ @ 8kV |
||
Environment: |
Temperature:15°C－35°C;Humidity:10%－75% |
||
Power supply: |
AC220±10％，50/60Hz，300W |
||
Dimension: |
260mm(W)×170mm(H)×360mm(D) |
||

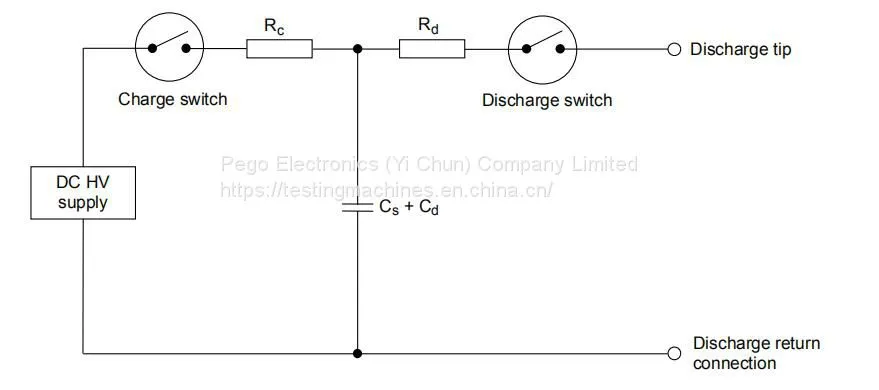

Equivalent circuit diagram:
