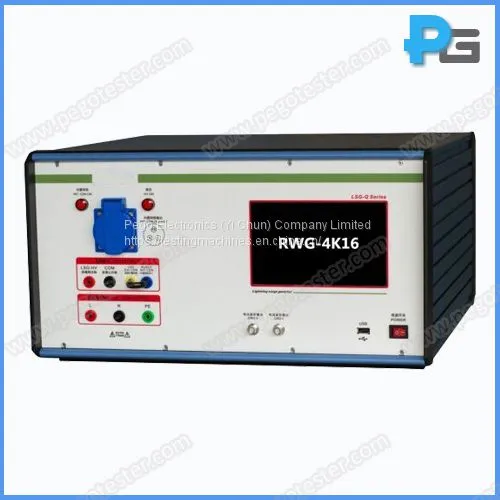

IEC61000-4-12 RWG-4K16 Ring wave Generator
1. Introduction:
Ring wave generator is completely meet the requirements of IEC61000-4-12, GB/T17626.12 and ANSIC62.41/45.Ring wave generator is used for the simulating electrical network, the power supply of the reactive load the control line switch, as well as sensing the ring wave of the low voltage cables terminal equipment caused by the disconnection of the power circuit, fault and insulation breakdown or lightning stroke. It is widely used in electronic equipment.
2. Parameters:
Voltage Oscillation frequency (open): |
100kHz±10% |
Output voltage(open): |
（250V~4000V）±10% |
Frontier(open circuit voltage,T1,10%~90%): |
0.5μs±30% |
Frontier(short circuit voltage,T2,10%~90%): |
≤0.9μs |
Short circuit current at 3500V(PK1): |
292A±10% @12Ω |
117A±10%@30Ω | |
Interval: |
1s~99s |
Impulse times: |
1~9999times |
Output mode: |
Positive, negative, positive/negative auto |
Output Impedance: |
12Ω，30Ω |
Phrase: |
asynchronous, synchronous |
Coupling and decoupling network(CDN): |
16A single Phrase or 20A 2phrases/5wires |
