Calibrated IEC60529 IP5X and IP6X Sand Dust Chamber
The sand and dust test chamber helps to evaluate the ability of the equipment to withstand the effects of dust, it is apply to test various auto parts includes lamps, instrument, electric dust cover, steering system, door lock and etc., as well as inspection of product sealing performance. Meet the test requirement of IP5X and IP6X enclosure protection levels as specified in IEC60529.
The dust chamber is controlled by 7 inch touch screen and PLC system, the interior of the cabinet is equipped with lighting and power supply, which can be used for live dust-proof test of the sample to simulate a more realistic use environment. There is a mesh sample support plate inside the box for Dust recycling, it is made of stainless steel and has a load capacity of 50KG.
Model |
PG-SC-100 |
PG-SC-225 |
PG-SC-500 |
PG-SC-1000 |
Working dimension(mm) |
400*500*500 |
500*600*750 |
800*800*800 |
1000*1000*1000 |
Working power |
AC 380V±10%, 50Hz |
|||
Temperature range |
RT~+70℃ |
|||
Temperature evenness |
≤2℃ |
|||
Temperature fluctuation |
≤±0.5℃ |
|||
wire diameter of metal net |
50μm |
|||
Wire interval |
75μm |
|||
Airflow velocity |
≤ 2.5m/s |
|||
Time range |
1S~999H (adjustable) |
|||
Vibration time |
1S~999H (adjustable) |
|||
Dust concentration |
2~4kg/m3 |
|||
Sand and dust |
Dry powder, portland cement paste |
|||
Power socket for EUT |
IP66, 220V/16A |
|||
Circulatory system |
Dust recycling |
|||
Working condition |
Temperature:15℃～35℃, humidity:≤85%R.H. |
|||
Configuration |
Observe window equip with window wiper, lamp |
|||
Power supply |
2KW, AC220V±10%, 50Hz |
|||

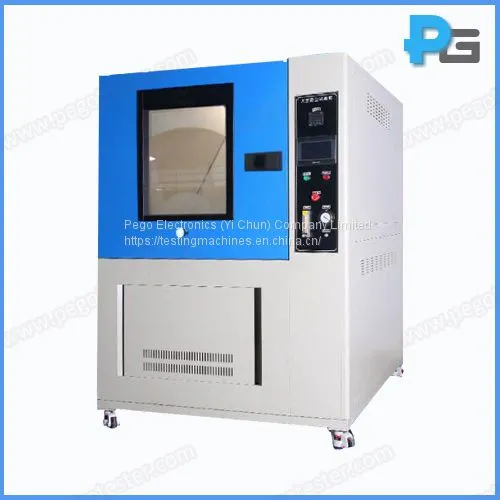

Picture:
