IEC61000-4-5 Lightning Surge Genenator with 6KV Output Voltage
1. Introduction:

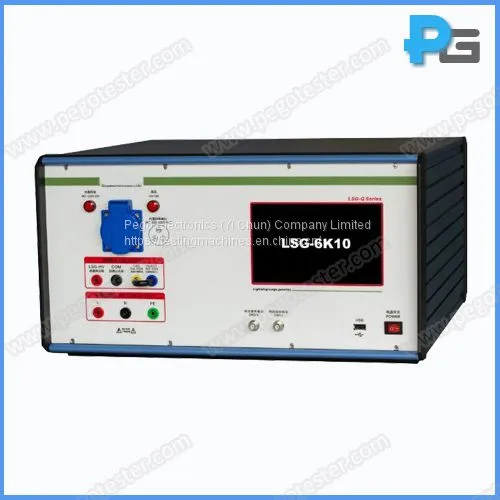

LSG-6K10 surge generator is designed according to IEC61000-4-5 and GB/T17626.5,and completely meet the requirements of the standards. It is widely used in the fields of industry control equipment, house-holding appliance,medical electronics, communications electronics,components, auto control equipment and etc.
2. Features:
1. 7 inches LCD touch screen, with plentiful functions, easy to operation and update the software.
2. User can design the test program, and has 1000 groups memories.
3. Monitoring the surge voltage and current waveform by work with an external oscilloscope.
4. Built in single phrase 10A (16A) network, makes the equipment smaller and convenient.
5. With high-strength plug in the panel, EUT can connect with the equipment convenient and reliable.
6. Monitoring the work voltage and current of the EUT. Overvoltage protection and overcurrent protection.
7. Intelligent test the surge output, warning at voltage error and no output.
8. Intelligent judge the abnormal of high voltage and surge output.
3. Parameters:
Output voltage (open) |
6kV (Max) ±5％ 6KV |
Front time |
1.2μs ±30％ |
Time to half-value |
50μs ±20％ |
Output current (short) |
3kA±5％ (max) |
Front time |
8μs ±20％ |
Time to half-value |
20μs ±20％ |
Output polarity |
Positive, negative, positive/negative automatically |
Output impedance |
2Ω±10％ |
Trigger mode |
Synchronization,asynchronization |
Inject phase |
Freely set at 0－360°，resolution:1° |
Trigger mode |
Auto or manual, single |
Surge times |
1-9999 times |
Memories |
1000 groups |
Surge interval |
20-9999s |
Accuracy: |
5％ |
CDN |
AC：single phrase 300V，10A（16AMax），50/60Hz |
DC：300V，10A（16AMax） | |
EUT power supply |
AC110-220V±10％，50/60Hz |
Coupling mode |
L-N,L-PE，N-PE，L+N-PE |
Working environment |
Temperature:15°C－35°C humidity:0%－75% |
Power supply |
AC220±10％，50/60Hz |
dimension |
470mm(W)×260mm(H)×500mm(D) |
Weight |
About 30kg |
4. Waveform:
