IEC61000-4-4 EFT-5K16 Electrical Fast Transient Generator

Electrical Fast Transient / Burst Generator

1. Introduction:

EFT-5K series electrical fast transient generators is designed according to IEC61000-4-4. They are widely applied to the fields of industry control appliance, household appliance, medical equipment,components, auto control equipment and etc.

The electrical fast transient/ burst generator is to simulate the electrical fast transient or burst, the repetitive fast transient test is a test with bursts consisting of a number of fast transients, coupled into power supply, control, signal and earth ports of electrical and electronic equipment.

The test voltage of burst generator is from 0.25KV to 5KV, which can cover all the test levels, and user can define the test level. The high amplitude, short rise time, high repetition rate are completely meet the requirement of IEC61000-4-4.

The electrical fast transient/burst generator is built in a 380V/16A CDN.

EMC Test equipment includes: EMI receiver, ESD generator, surge generator, electrical fast transient generator, voltage dips short interruptions and voltage variating generator, ring wave generator and etc.

2. Features:

1) 7 inch LCD touch screen, easy to operation and update the software

2) 1000-group memories

3) Built-in 3-phrase 5-wires coupling and decoupling network (20A)

4) Adopt imported high-power non-inductive resistor to make sure the waveform stable and no deformation

5) The coupling network adpots the newest technology with low attenuation and plentiful power

6) Built-in temperature-humidity sensor to monitor the environment at real time

7) With self-diagnosis function to judge the abnormal of high voltage and impulse output

3. Parameter:

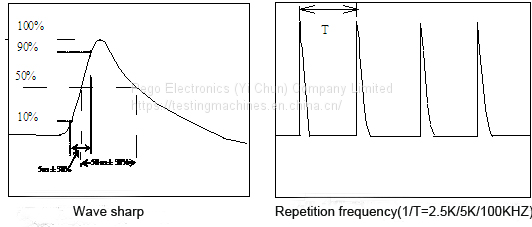

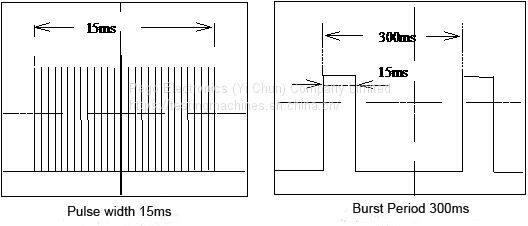

4. Wave sharp of the pulse
