The KRD20 pneumatic bump test machine is a fully automatic pneumatic lift vertical bump test system, designed to replace traditional mechanical cam-type test benches. Featuring a novel structure, high automation, easy operation and low maintenance, it simulates repeated impact loads that products may encounter during transportation, handling and operation, to evaluate their functional reliability and structural integrity under bump environments. Widely applied in industries such as aerospace, automotive electronics, telecommunications and packaging manufacturing, this equipment performs various standard bump tests to replicate real-world shock profiles and impact energy, supporting product structure optimization and reliability verification. It complies with international test standards including IEC 60068-2-29:1987 and IEC 60068-2-27:2008.
Fully pneumatic driven, clean and environmentally friendly, good repeatability and high reliability.
Control the frequency of collisions by adjusting the gas pressure to achieve continuous high-frequency collisions.
Test time and collision frequency can be set arbitrarily, and it will stop automatically after the test is completed
Shock test for battery packs more than 500kg, we recommend use KRD20 bump test machine
KRD20 bump test machine is suitable for large size battery pack, and with middle acceleration and large pulse duration, such as:
1. 16g@60ms
2. 24g@16ms
3. 25g@15ms
4. 50g@11ms
5. 50g@15ms
The traditional bump test specs meet IEC 60068-2-29:1987:
1. 10g@16ms
2. 15@6ms
3. 25g@6ms
4. 40g@6ms
5. 100g@2ms
The latest test shock/bump specs in IEC 60068-2-27:2008 that can be achived by bump test machine:
1. 10g@16ms
2. 10g@11ms
3. 15g@6ms
4. 15g@11ms
5. 20g@11ms
6. 25g@6ms
7. 30g@6ms
8. 40g@6ms
9. 50g@3ms
10. 100g@2ms
Technical Specifications
|
Model Parameters |
KRD 20－50 |
KRD 20－100 |
KRD 20－200 |
KRD 20－500 |
KRD 20－800 |
KRD 20－1000 |
KRD 20－1500 |
KRD 20－2000 |
KRD 20－3000 |
Load (kg) |
50 |
100 |
200 |
500 |
800 |
1000 |
1500 |
2000 |
3000 |
Table Size (mm) |
500×500 |
600×600 |
800×800 |
1000×1000 |
1500×1500 |
1800×1800 |
2000×2000 |
2500×2000 |
2500×2500 |
Shock Waveform |
Half sine waveform |
||||||||
|
Peak Acceleration (g) |
3～150 |
3～120 |
3～100 |
3～80 |
4～60 |
5～50 |
5～50 |
5～40 |
5～30 |
|
Pulse Duration (ms) |
2～30 |
3～30 |
5～30 |
6~30 |
6~30 |
8~30 |
11~30 |
||
Bump Rate (Times/Min) |
1~120 |
1~100 |
1-80 |
1~60 |
1-30 |
1-20 |
|||
Overall Dimension (mm) |
1050×1050 ×1300 |
1090×1090 ×1300 |
1050×1050 ×1280 |
1300×1300 ×1650 |
1500×1500 ×1600 |
1800×1800 ×1600 |
2000×2000×1850 |
2500×2000×1950 |
2500×2500×2100 |
Weight (kg) |
1500 |
1980 |
1925 |
3475 |
2800 |
7500 |
8500 |
9500 |
11000 |
Power Supply |
1-phase AC220V±10% 50Hz |
||||||||
Air Source |
≤0.8Mpa |
||||||||
Working Environment |
Temperature range 0 ~ 40℃, Humidity≤80% (non-condensing) |
||||||||
Standards |
IEC 60068-2-29:1987 IEC 60068-2-27:2008 |
||||||||
Note: The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
Standards
IEC 60068-2-29:1987
IEC 60068-2-27:2008– Test Ea: Shock
Test Results

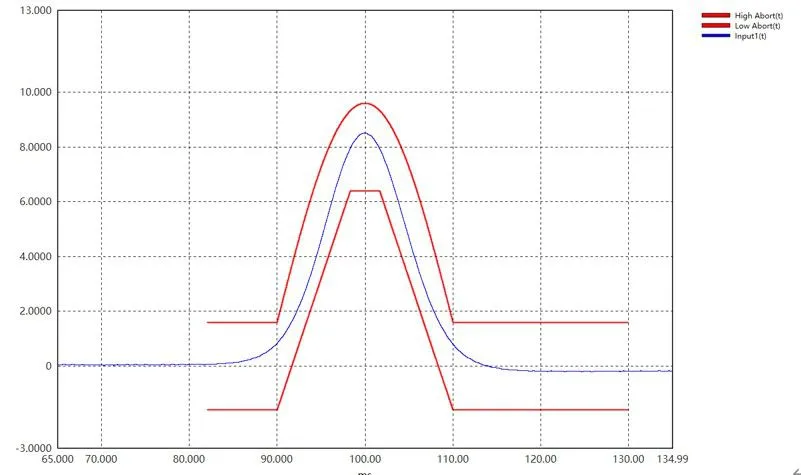

Target peak acceleration: 8g; Pulse width: 20ms; Green polyurethane pad; Height: 25mm
Target peak acceleration: 75g; Pulse width: 4ms; Yellow polyurethane pad; Height: 9mm
Send Inquiry to This Supplier
