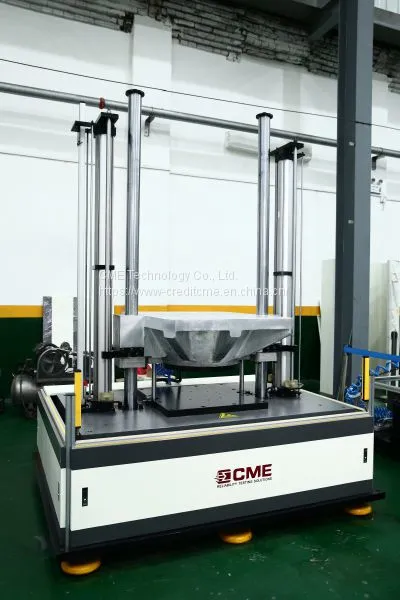

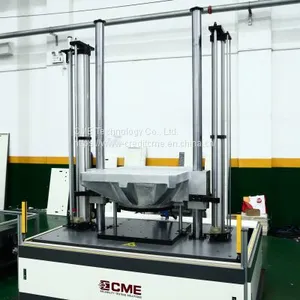

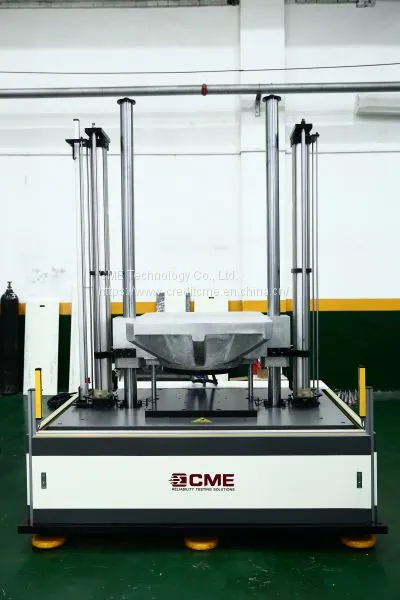

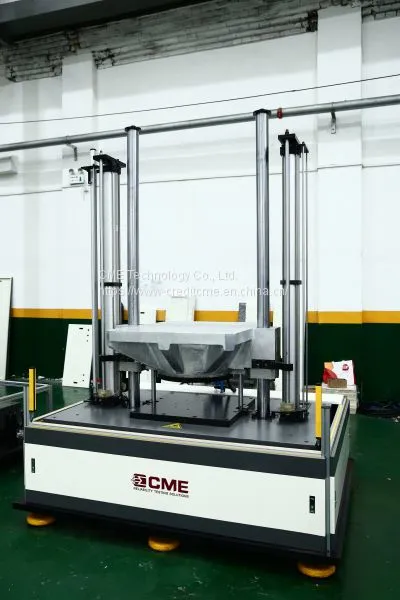

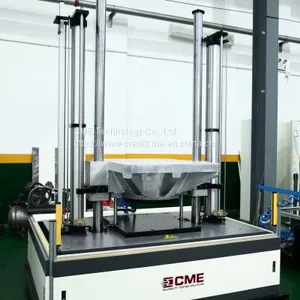

Help CenterChinese Manufacturer Hot Sale KRD10 Series Hydraulic Vertical Shock Testing Equipment
Related Products
-
Wholesale Customized Pneumatic Horizontal Shock Test Equipment for Product ReliabilityNegotiableMOQ: 1 Set -
High G Shock Testing High Energy Shock Test Machine for Product ReliabilityNegotiableMOQ: 1 Set
-
KRD20 Series High Accuracy Automatic Pneumatic Bump Test Machine for Electronic ProductsNegotiableMOQ: 1 Set
-
MIL-S-901D Standard High Impact Shock Testing Equipment for Ship Board MachineryNegotiableMOQ: 1 Set
-
Hot Selling Pneumatic Horizontal Shock Test Equipment for ProductsNegotiableMOQ: 1 Set
KRD10 series is a fully automatic hydraulic lifting vertical shock test system. It is vertical shock test equipment with novel design, high degree of automation, simple operation and convenient maintenance. It is used to measure and determine the impact resistance of products or packaging, and assess the functional reliability and structural integrity of the test product in a shock environment. The KRD10 series hydraulic shock test system can perform various conventional classic shock tests to realize the shock wave and shock energy that the product is subjected to in the actual environment, thereby improving the system or optimizing the structure of the product. This equipment meets the requirements of MIL-STD-202, MIL-STD-750, MIL-STD-810, MIL-STD-883, IEC68-2-27 and other standards.
l Windows-based stable control system, full-automatic remote-control interface
l Multi-track guide posts combined with good lubricity and noise free hydraulic balance lifting system to achieve stable shifting
l Automatic control of lifting height with high accuracy and good repeatability
l Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter
l Built-in brake mechanism to avoid secondary rebound collisions and more secure positioning of the table
l Multiple waveforms: it can perform conventional half-sine waves, post-peak sawtooth waves, or square waves
l The self-buffer & vibration isolation base does not require a special foundation, and easy to install
l One-stop test: built-in test standards meet various requirements to help users to complete test in one stop
Technical Specifications
|
Parameters |
KRD 10－2 (Manual) |
KRD 10－5 |
KRD 10－25 |
KRD 10－50 |
KRD 10－100 |
KRD 10－200 |
KRD 10－400 |
KRD 10－500 |
KRD 10－600 |
KRD 10－1000 |
KRD 10－1500 |
KRD 10－3000 |
|
Rated Load (kg) |
2 |
5 |
25 |
50 |
100 |
200 |
400 |
500 |
600 |
1000 |
1500 |
3000 |
|
Table Size (mm) |
115×115 |
200×200 |
300×300 |
500×500 |
600×600 |
800×600 |
800×800 |
1000×800 |
1000×1000 |
1200×1000 |
1500×1200 |
2000×1500 |
|
Peak Acc. (g) |
Half-sine |
5~3k |
5~2k |
5~1.5k |
10~750 |
10~600 |
10~450 |
10~400 |
10~300 |
10~300 |
10~250 |
10~150 |
15~100 |
|
Post-peak Sawtooth |
10~200 |
10~100 |
10~50 |
||||||||||
Trapezoid |
/ |
15~200 |
15~100 |
15~60 |
15~50 |
30~50 |
|||||||
Pulse Duration (ms) |
Half-sine |
0.3~40 |
0.5~40 |
0.6~60 |
1.5~60 |
2~60 |
2.5~60 |
3~60 |
3.5~60 |
4~60 |
4.5~60 |
6~60 |
11~40 |
|
Post-peak Sawtooth |
3~18 |
6~18 |
|||||||||||
Trapezoid |
/ |
3~18 |
6~18 |
||||||||||
Overall Dimensions (mm) |
450× 180× 2100 |
1000× 900× 2350 |
1400× 1200× 2300 |
1600× 1400× 2300 |
1700× 1500× 2300 |
1700× 1500× 2300 |
1900× 1500× 2550 |
1900× 1500× 2550 |
1900× 1800× 2550 |
1900× 1800× 2650 |
2200× 2100× 2650 |
2700× 2500× 3000 |
|
Weight (kg) |
200 |
1000 |
1800 |
3000 |
4000 |
4200 |
4800 |
5000 |
7000 |
8000 |
10000 |
15000 |
|
|
Working Environment |
Temperature range 0 ~ 40℃, Humidity≤80% (non-condensing) |
||||||||||||
Power |
Control measurement: 1-phase AC220V±10% 50Hz Oil source: 3-phase 380V±10% 50Hz |
||||||||||||
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment |
||||||||||||
Standards |
MIL-STD-810 IEC68-2-27 UN38.3 IEC62281 IEC62133-2 UL2054 IEEE1625 SAEJ2929 IEC62660-2 ISO12405-3 UL2580 |
||||||||||||
Note: 1. The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
2. Post-peak Sawtooth and Trapezoid waveforms are optional.
Standards
Transportation Safety Standards (UN 38.3 / IEC 62281)
Product Safety Standards (IEC 62133-2 / UL 2054 / UL 2580)
Electric Vehicle Traction Battery Standards (IEC 62660-2 / SAEJ2929 / ISO 12405-3)
MIL-STD-810 Method 516.8 – Functional Shock
Test Results
Target peak acceleration: 100g, pulse width: 11ms, green pad 38mm, target height 620mm
Send Inquiry to This Supplier
