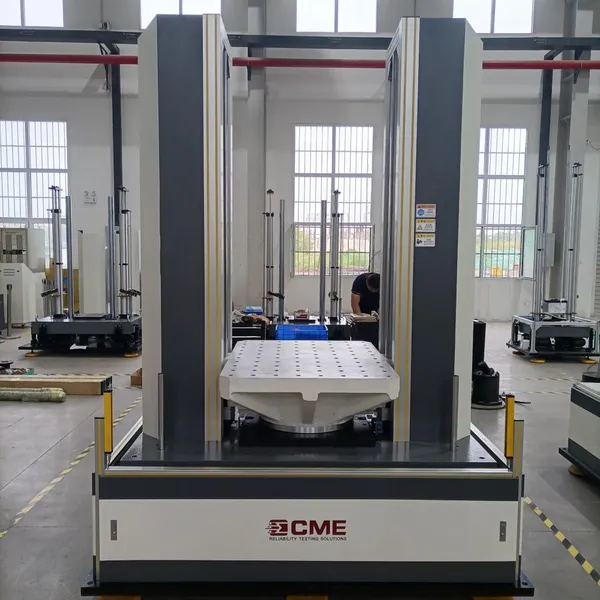

KRD11 series pneumatic vertical shock/bump test system is featured with advanced design, high degree of automation and reliability, simple operation and convenient maintenance. The system meets the requirements of both shock and collision test, can perform conventional half-sine wave, post-peak sawtooth wave, square wave and other waveform shock tests.
l Pneumatic drive, simple structure and high reliability
l Pollution free, without hydraulic leak risk and keep the environment clean.
l Pneumatic drive greatly improves the shock test efficiency, maximum shock rate up to 120 times / min.
l It can easily realize large pulse width and small overload test.
l With a fast shock rate comparing to motor or hydraulic driven collision table, it has higher reliability and better collision waveform.
l The speed and rate of shock can be easily controlled by adjusting the gas pressure.
l IPS-2000 series shock control and measurement system can perform manual shock, continuous shock, single shock, and interval shock.
l Built-in brake mechanism ensures the safety of operation in any situation.
Technical Specifications
|
Model Parameters |
KRD 11－5 |
KRD 11－15 |
KRD 11－25 |
KRD 11－50 |
KRD 11－100 |
KRD 11－200 |
KRD 11－400 |
KRD 11－600 |
KRD 11－800 |
KRD 11－1000 |
KRD 11－2000 |
|
Rated Load (kg) |
5 |
15 |
25 |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
||
Table Size (mm) |
150×150 |
200×200 |
300×300 |
500×500 |
600×600 |
800×600 |
800×800 |
1000×800 |
1000×1000 |
1200×1200 |
1500×1200 |
|
Peak Acc. (g) |
Half-Sine |
5-2500 |
5-2000 |
5-1500 |
10-750 |
10-600 |
10-450 |
10-400 |
10-300 |
10～300 |
10～250 |
10～150 |
|
Post-Peak Sawtooth |
10-200 |
10-100 |
10-50 |
|||||||||
Trapezoid |
/ |
15-200 |
15-100 |
15-60 |
15-50 |
|||||||
Pulse Duration (ms) |
Half-Sine |
0.4～40 |
0.5～40 |
0.6～60 |
1.5～60 |
2～60 |
2.5～60 |
3～60 |
3.5～60 |
4～60 |
4.5～60 |
6～60 |
|
Post-Peak Sawtooth |
3～18 |
6～18 |
||||||||||
Trapezoid |
/ |
3～18 |
6～18 |
|||||||||
|
Bump Waveform (Optional) |
Half-sine Waveform |
|||||||||||
|
Bump Peak Acceleration （g） |
5~150 |
5~120 |
5~100 |
5~80 |
5~60 |
5~40 |
/ |
|||||
Bump Pulse Duration (ms) |
2~30 |
3~30 |
4 ~ 30 |
5 ~ 30 |
/ |
|||||||
|
Bump Rate (Times/Min) |
10~120 |
10~100 |
10~80 |
10~60 |
10~40 |
10~30 |
/ |
|||||
Overall Dimension (mm) |
1000×1000 ×2100 |
1000×1000 ×2160 |
1510×1300 ×2400 |
1690×1240 ×2350 |
1710×1160 ×2350 |
1910×1500 ×2700 |
1910×1500 ×2500 |
1900×1500 ×2450 |
2000×1500 ×2450 |
1900×1800 ×2550 |
2200×1800 ×2550 |
|
Weight (kg) |
1300 |
2300 |
3000 |
3070 |
3900 |
4500 |
5000 |
5200 |
5600 |
6200 |
7300 |
|
Working Environment |
Temperature range 0 ~ 40℃, Humidity≤80% (non-condensing) |
|||||||||||
Power |
1-phase AC220V±10% 50Hz |
|||||||||||
Air source |
≤0.8MPa |
|||||||||||
|
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800~1000mm shall be reserved around the equipment |
|||||||||||
Standards |
MIL-STD-810F IEC68-2-27 MIL-STD-202 MIL-STD-750 MIL-STD-883 UN38.3 IEC62281 IEC62133-2 UL2054 IEEE1625 SAEJ2929 IEC62660-2 ISO12405-3 UL2580 |
|||||||||||
