QK-20 Notch Sample-making Machine For Impact Tester
- 35 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
XC Analog Plastic Impact Testing Machine
-
EHB-100A 100KN 0.3 Grade Compression Type Proving Ring
-
EHB-600B 600KN Proving Ring for Compression Machine Calibration
-
TGJ-6 Plastic Pipe Compression Testing machine
-
PLG-C Computer Control Resonant High Frequency Fatigue test instrument
-
YAW Computerized Press Force Testing Machine
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | QK-20 | Power | Hydraulic |
Product Description

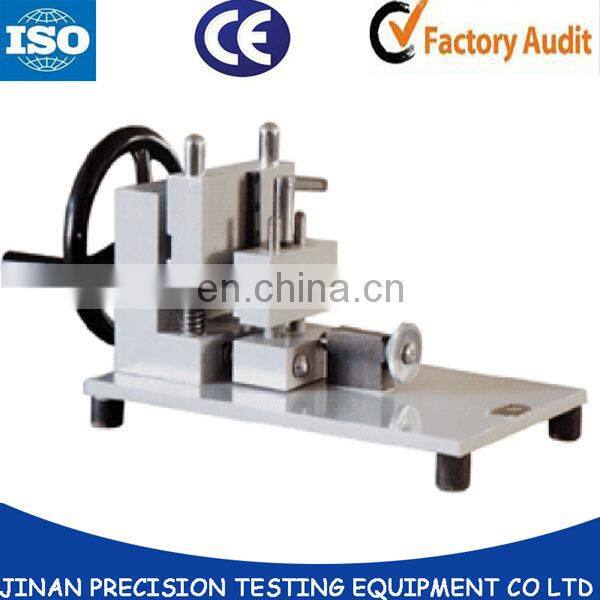

QK-20 Notch Sample-making Machine For Impact Tester
Applications:
Model QK-20 notch cutter is designed to make impact test specimen of simple beam and
cantilever beam, and it possesses the features of simple structure, easy operation, stable
performance, and it is the necessary equipment for making notch impact specimen.
Working principle;
Adopt the sine mechanism of for-bar linkage to transfer the drive of hand-wheel into linear
motion of vertical slide block to cut the impact specimen.
Specifications:
1. Cutter shape and dimension:
Mode A: 45°±1° R0.25±0.05mm
Mode B: 45°±1° R1±0.05mm
Mode C: 2±0.2 R 0.8±0.1mm
2. Max. Travel: 20mm
3. Dimension: 460x250x240mm
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
--------------------------------------------------------------------------------------------------------------------------------------------------------
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
WAW-C Hydraulic unviersal testing machine
| Model | WE-100C |
| Max. Testing Load (kN) | 100 |
Load range(kN) and Min | 0-20/0.05 |
Max. tensile space | 560 |
Max. Compression space | 530 |
Max. Distance Between Two | 400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Compressive strength testing machine for concrete
| Model | YES-1000 |
| Load display accuracy | ±1% |
Distance between upper | 320mm |
| Diameter of lower platen | 300 mm |
| Piston stroke | 30mm |
| Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------
Strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston | 690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
TORSION TESTING MACHINE
| Item | NJS-30 |
| Max torque(Nm) | 30 |
| Torque resolution (Nm) | 0.01 |
| Accurate measuring range of torsion (Nm) | 0.6-30 |
| Full-scale reading of torsion angle (º) | 9999.9 |
| Torsion angle resolution (º) | 0.01 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLS Dyanmic testing machine
| Model | PLS-50 |
| Static | ±50 |
| Dynamic | 50 |
| Function generator Range of frequency(Hz) | 0.01~20HZ |
| Stroke of piston(mm) | ±75 |
| Distance between columns | 500 |
RTH CREEP TESTING MACHINE
| Working Temp. range | 400°C~1200°C |
| Length of effective soaking zone | 150mm |
| Furnace pipe: | φ90mm |
| Furnace: | φ300mm |
| Furnace life: | ≥3000hours |
| Timing error | ±0.2% |
Our product range:
1. Electromechanical Universal Testing Machine
2. Hydraulic universal testing machine
3. Spring testing machine
4. Fatigue testing machine
5. Creep and rupture testing machine
6. Horizontal tensile testing machine
7. Torsion testing machine
8. Cold bending testing machine
9. Cupping testing machine
10. Impact testing machine (Nist)
11. DWTT drop weight testing machine.
12. Compression testing machine
13. Friction and wear testing machine
