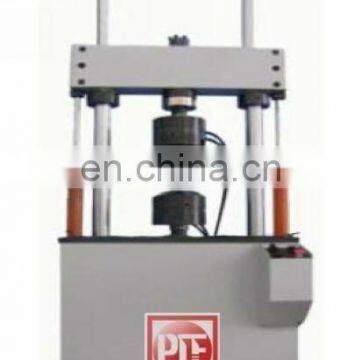

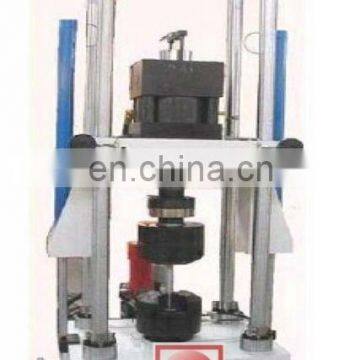

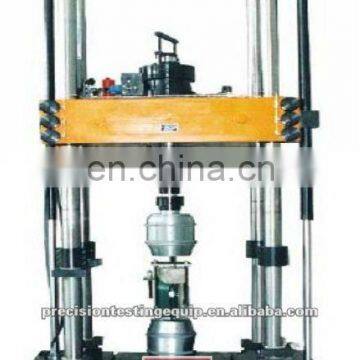

PLS Series Dynamic electronic Fatigue laboratory Testing machine
Applications
PLS Electro-hydraulic servo testing machine is produced according to the dynamic servo test technology, and utilizes the design methods of unitization, standardization and modularization, which enhance the stability and reliability of the system. The machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth test
Specifications
Model |
PLS-50 |
PLS--100 |
PLS--200 |
PLS--500 |
PLS--750 |
PLS-1000 |
|
|
Load capacity (kN) |
Static |
±50 |
±100 |
±200 |
±500 |
±750 |
±1000 |
Dynamic |
50 |
80 |
160 |
400 |
600 |
800 |
|
Measurement accuracy |
Load |
±1.0% of reading |
|||||
Displacement |
±1.0%FS of each file |
||||||
Deformation |
±1.0% of reading |
||||||
|
Function generator Range of frequency(Hz) |
0.01~20HZ |
||||||
Stroke of piston(mm) |
±75 |
||||||
Distance between columns (mm) |
500 |
565 |
700 |
820 |
820 |
1000 |
|
Distance between grips |
50~600 |
||||||
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
What else can we supply?
1. Electromechanical Universal Testing Machine, LDW sereis, WDW sereis, WDW-D series etc
2. Hydraulic Universal Tesitng Machine WAW series, WAW-E sereies, WAW-C sereis.
3. Impact Test Machine JB series, JBW series, JBDW-Series etc (NIST Certificate)
4. Hardness Tester
5. Polisher and Grinding Machine
6. Polisher and Grinding Machine
7. Torsion Test Machine
