YAW-3000F Computer Control Electro-Hydraulic Servo Compression Testing Machine
(Maxtest software)
Applications:
By adopting electro-hydraulic servo controlled technology, 3000KN Electro-hydraulic Servo
Control Compression Testing Machine is designed for compression test to concrete, cement,
component, etc building materials and also metal and other materials. It is the ideal equipment
for quality control, R&D and education.
Main configurations & Features:
1. This testing machine consists of Load frame, hydraulic pumping station, compression test
fixture, electric & hydraulic servo control system, etc.
2. Load frame: 4-column frame structure, oil cylinder bottom-mounted. It consists of base,
column, cylinder, Load cell, etc.
3. High precision load cell to measure load, photoelectrical encoder to measure
displacement.
4. Hydraulic pump station system: servo pumping station.
5. Control system: Full digital hydraulic servo control, which includes load and displacement.
PCI measuring & control amplification unit, servo valve driving unit & software system etc.
Load and displacement close-loop control. It can complete load speed, displacement
speed, load keeping and displacement keeping control modes.
6. Computer data processing automatically, the printer can print test report.
Specifications:
Max. load: 3000KN
Measuring range: 60KN-3000KN
Load accuracy: ≤±1%
Load measurement resolution: 1:100000
Ram stroke: 200mm
Resolution of piston movement: 0.01 mm
Distance between upper and lower plate: 450mm
Distance between columns: 500x400mm
Test Speed: 0.5-50mm/min
Upper Compression plate diameter: 300mm
Low compression plate size: 400x400mm
Loading speed: 0-40KN/s, adjustable
Load frame dimension: 900x800x1940mm
Oil source dimension: 1110x650x865mm
Safety Features:
1. The sample has a tendency to fly on breakage. So safety shield is provided.
2. When the load is over 2-5% of max load, the machine will stop automatically.
3. Limit switch is offer for safety.
Main configurations:
1. Load frame: 1 set
2. Servo pump station: 1 set
3. Control cabinet: 1 set
4. Control valve: 1 set
5. Computer and special servo controller: 1 set
6. Measure and control software system: 1 set
7. Hp printer: 1 set
8. Compression attachment: dia 300mm 1set
9. Spacer for adjust the test space: 3pcs
10. Protection shield
Optional Accessories:
1. Splitting device
2. TM-2 Concrete Mechanical extensometer

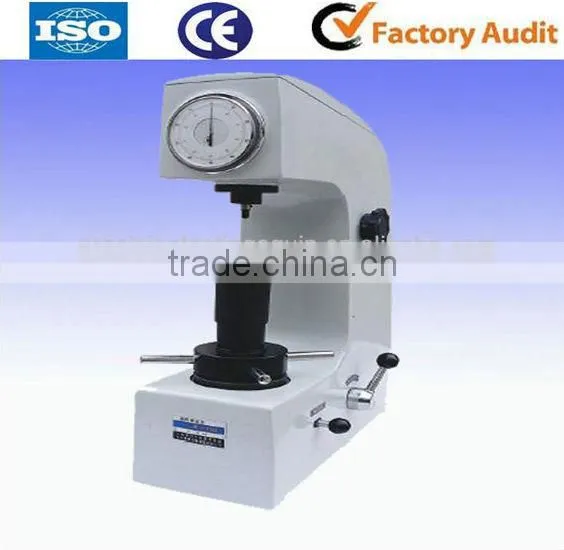

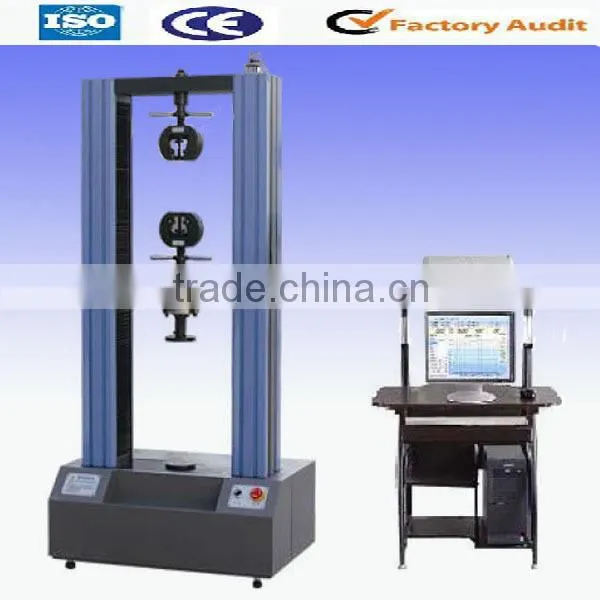

Related products,please click the below pics to check the products:

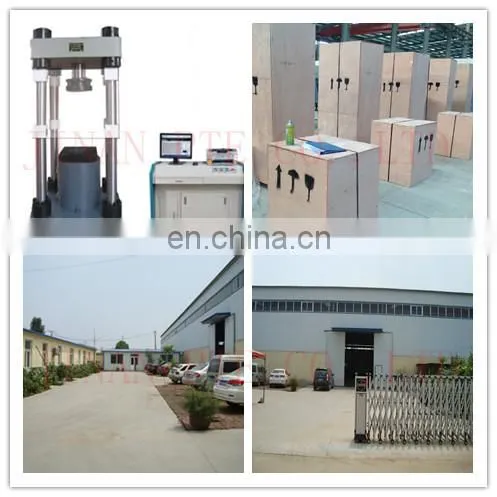

Factory:
