PLS-750 Electro-hydraulic Servo Dynamic and Static Fatigue Tester

PLS-750 Electro-hydraulic Servo Dynamic and Static Fatigue Tester photo-1
PLS-750 Electro-hydraulic Servo Dynamic and Static Fatigue Tester photo-2

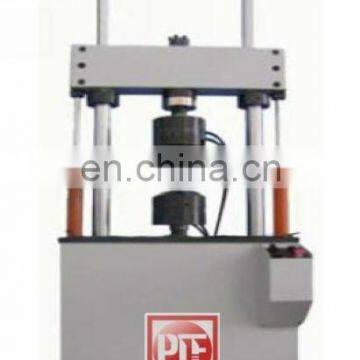

PLS-750 Electro-hydraulic Servo Dynamic and Static Fatigue Tester photo-3

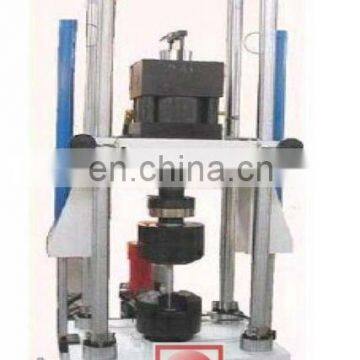

PLS-750 Electro-hydraulic Servo Dynamic and Static Fatigue Tester photo-4
PLS-750 Electro-hydraulic Servo Dynamic and Static Fatigue Tester photo-5

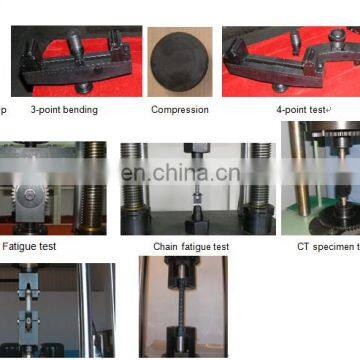

PLS-750 Electro-hydraulic Servo Dynamic and Static Fatigue Tester photo-6
US$ 5,500 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
PTE
Place of Origin:
Shandong, China
Model Number:
PLS-750
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name PTE
Place of Origin Shandong, China
Model Number PLS-750
Power Electronic
Product Description

Product Characteristic:

PLS series dynamic and static Electro-hydraulic servo testing machine is produced according to the dynamic servo test technology, and utilizes the design methods of unitization, standardization and modularization, which enhance the stability and reliability of the system. The machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth tests and other mechanics tests for various kinds of materials, and it widely used in the fields of aviation and aerospace, ship-making and military industries.

Model
 PLS-750
Mean load max(kN) Static 820
±750
Force amplitude(kN) Dynamic
 600
Function generator Range of frequency(Hz)
0.01~20HZ
Stroke of piston(mm)
 ±75
Range of frequency(Hz)
60~300HZ
Distance between columns
(mm)
820
Distance between grips
50-600
Detailed Images
Packing & Delivery

1. Inner package: dust-proof plastic bag

2. Outer package: standard export wooden case with pallet

3. Special packages: according to buyer's requirements

4. The packages suitable for international transport by sea, by air or any other delivery methods

Our Company

Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.

Our Service

1. Pre-service

--24 Hours online service for your consult.

--Help choose right model,and a series of service,person,advise.

2. Middle service

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Choose payment term you convienent.

--Promptly production and delivery,inform you in time.

--Can provide invoice value as you like to decrease your tax.

3. After sale service

--1 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Free change for some parts

--Remote control technical consult

--Free installation DVD

--Maintenance plan
