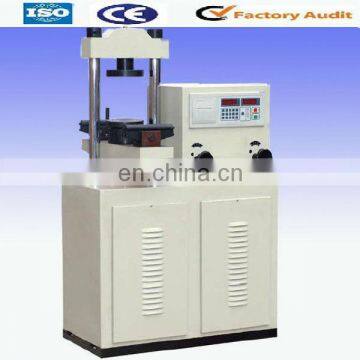

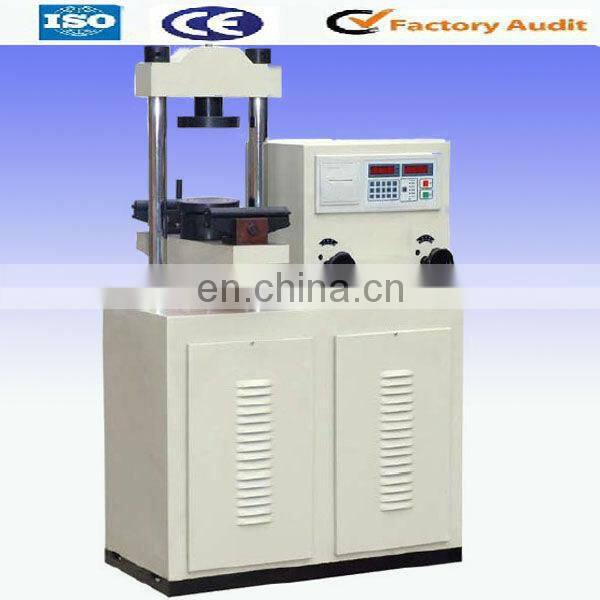

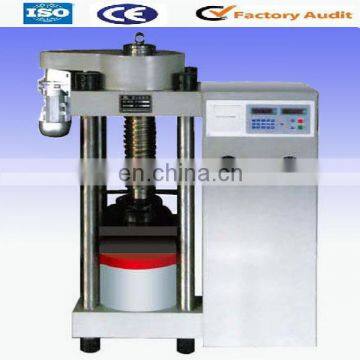

YES 300kn compresion universal Testing machine
YES-300 Digital Display Compression Testing Machine is applicable for the compressive, flexural and splitting tensile strength tests of mortar, hollow brick, cement and products, refractory bricks, engineering ceramics, engineering plastics and products, stone, wood and other building materials. The machine adopts the hydraulic loading. The pressure endured by the samples can be directly read out in the digital gauge dynameters
Feature:
1, High performance load frame, with high stiffness and stability;
2, Hydraulic loading, wide speed adjusting range;
3, Digital display testing load, speed, peak value etc;
4, with overload, over voltage, over current protection function
Specification:
Max load | 300KN |
Accuracy | ≤±1% |
Rated pressure of oil pump | 25Mpa |
Flexure fixture roller diameter | Dia 30mm |
Distance between upper and lower rollers | 165mm |
Distance between two upper rollers | 150mm |
Distance between two lower rollers | 450mm |
Upper and lower platen size | Dia 155mm |
Distance between upper and lower platen | 230mm |
Power | 3ph, 0.75kW |
Dimension | 850x600x1340mm |
Net weight | Approx. 500KG
|
1.Packing with high quality standard to ensure safety when transportation.
2.Low Delivery Freight,because we are close to Qingdao Seaport.
3.Prompt shipment and keep you informed for delivery.
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.
1. How many years do your company in testing machine field?
More than 20 years.
2.Could you pls tell me the warranty?
1 year warranty time
3.What will you do if the machine cannot work during the warranty time?
Our egineer will be your place to fix it.
4.Do you have CE or any other certificate?
CE and ISO Certificate.
5.What is your payment way?
T/T or L/C ,as your like.
