PLS Low Cycle Compression Fatigue Testing Machine

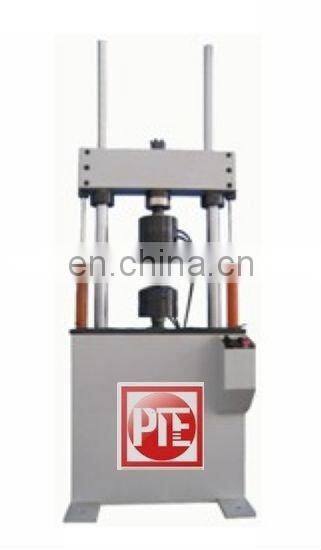

PLS Low Cycle Compression Fatigue Testing Machine photo-1

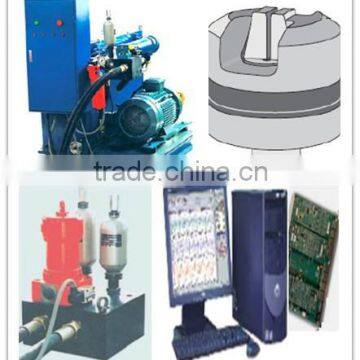

PLS Low Cycle Compression Fatigue Testing Machine photo-2

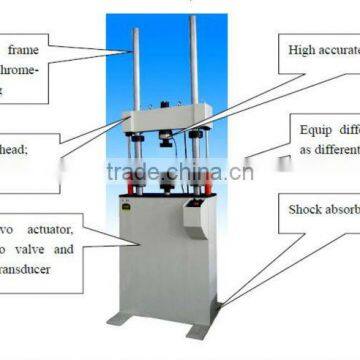

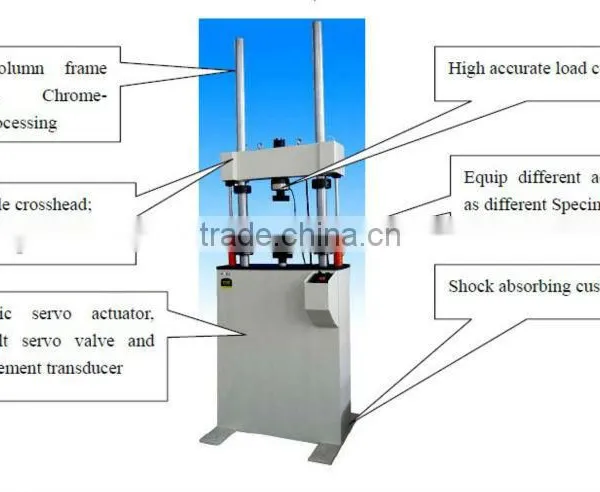

PLS Low Cycle Compression Fatigue Testing Machine photo-3

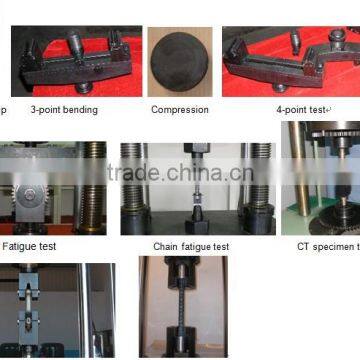

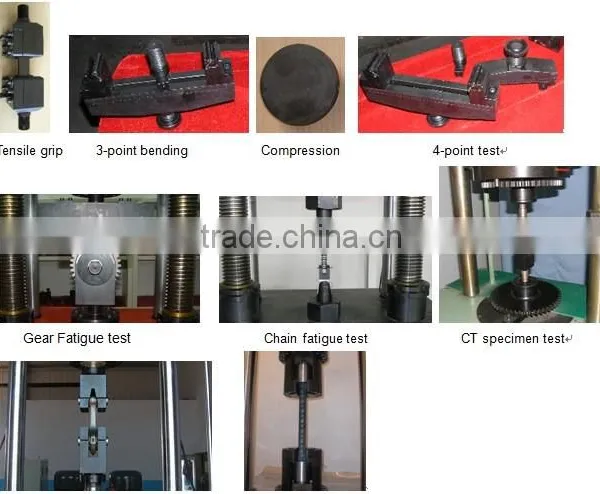

PLS Low Cycle Compression Fatigue Testing Machine photo-4

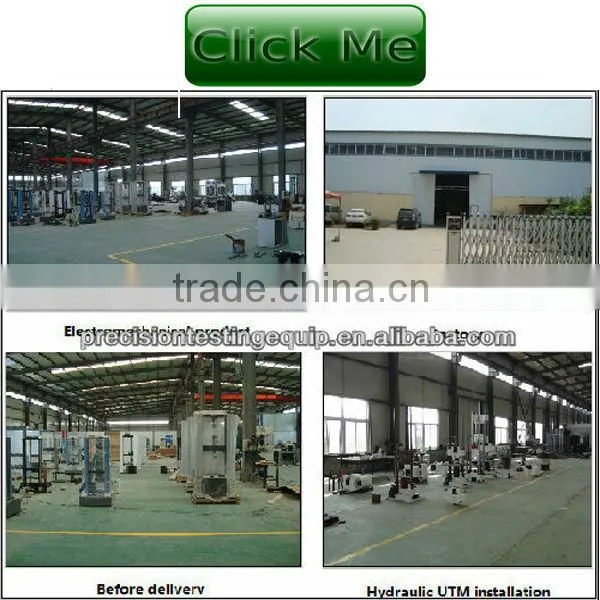

PLS Low Cycle Compression Fatigue Testing Machine photo-5
PLS Low Cycle Compression Fatigue Testing Machine photo-6
US$ 500 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
PTE
Place of Origin:
Shandong, China
Model Number:
PLS
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name PTE
Place of Origin Shandong, China
Model Number PLS
Usage Vibration Testing Machine
Product Description

Applications

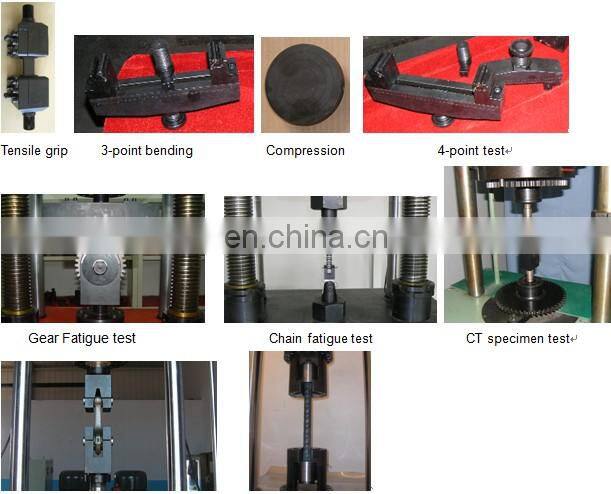

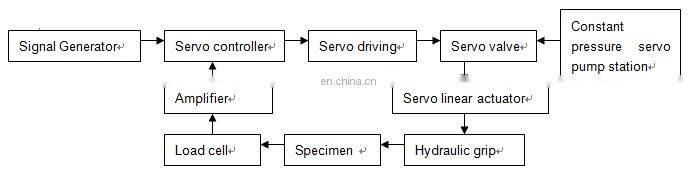

PLS Electro-hydraulic servo testing machine is produced according to the dynamic servo test technology, and utilizes the design methods of unitization, standardization and modularization, which enhance the stability and reliability of the system. The machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth test

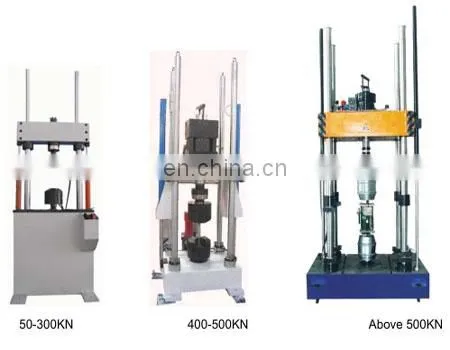

Model
PLS-50
PLS--100
PLS--200
PLS--500
PLS--750
PLS-1000
Load capacity
(kN)
Static
±50
±100
±200
±500
±750
±1000
Dynamic
50
80
160
400
600
800
Measurement accuracy
Load
±1.0% of reading
Displacement
±1.0%FS of each file
Deformation
±1.0% of reading
Function generator Range of frequency(Hz)
0.01~20HZ
Stroke of piston(mm)
±75
Distance between columns (mm)
500
565
700
820
820
1000
Distance between grips
50~600

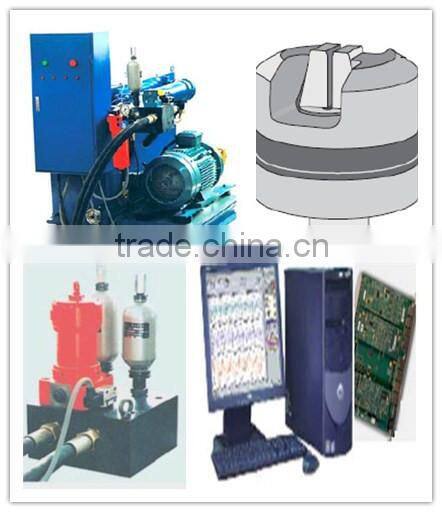

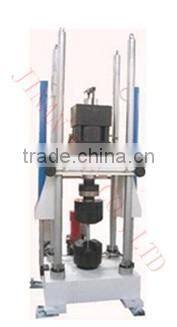

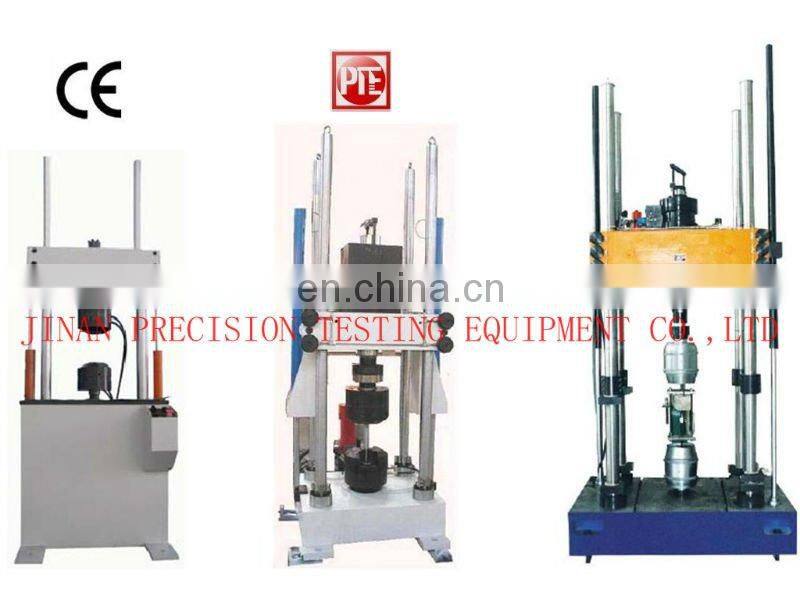

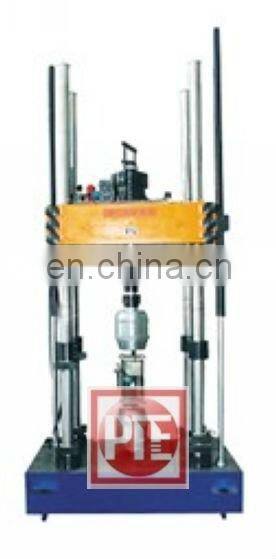

Detailed Images
Packing & Delivery

Packaging Detail:

1. Inner package: dust-proof plastic bag

2. Outer package: standard export wooden case with pallet

3. Special packages: according to buyer's requirements

4. The packages suitable for international transport by sea, by air or any other delivery methods

Our Service

1. Pre-service

--24 Hours online service for your consult.

--Help choose right model,and a series of service,person,advise.

2. Middle service

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Choose payment term you convienent.

--Promptly production and delivery,inform you in time.

--Can provide invoice value as you like to decrease your tax.

3. After sale service

--1 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Free change for some parts

--Remote control technical consult

--Free installation DVD

--Maintenance plan
