Help CenterPLS-200 Servo Control Electro-hydraulic Static Dynamic Fatigue Testing Machine
Related Products
-
PLG-300C Computer Control Resonant High Frequency Universal Fatigue Testing MachineUS$ 18,888 - 68,888MOQ: 1 Set -
Dynamic and Static Eelectronic Universal Fatigue Testing MachineUS$ 5,000 - 30,000MOQ: 1 Set
-
PLS-750 Electro-hydraulic Servo Dynamic and Static Fatigue TesterUS$ 5,500 - 15,000MOQ: 1 Set
-
PLG-20C Computer Control Resonant Lab Equipment Fatigue TesterUS$ 1,500 - 5,000MOQ: 1 Set
-
PLS Series High Precise Dynamic Fatigue Laboratory Testing MachineUS$ 800 - 2,000MOQ: 1 Set

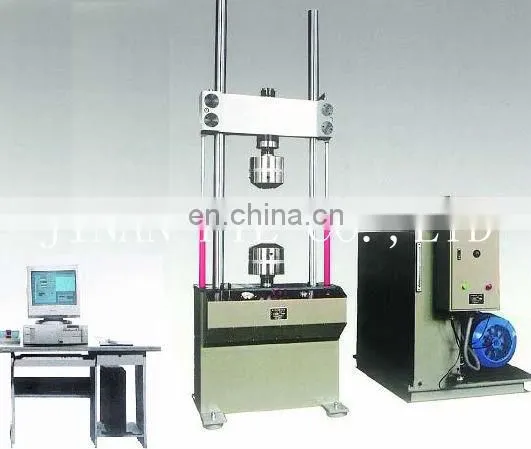

PLS-200 is designed according to the dynamic servo test technology, and it mainly used to achieve dynamic fatigue performance tests to various kinds of components, compound materials and string materials (such as nylon, etc) and biomaterials.
It can also do static mechanical performance tests, such as tensile and compression tests to different materials.
1. Max. Static load: ±200kN
2. Max. Dynamic load: ±200kN
3. Load accuracy: ±1%
4. Max. Amplitude of the actuator: 30mm, and indicating accuracy is better than ±0.5%FS
5. Frequency range: 0.1-10Hz
6. Effective test space: 1000mm
7. Column distance: 500mm
8. Constant pressure servo pump station: Flow 30L/min
9. Controller: PC full digital servo controller
9.1 Test wave form: sine wave, triangular wave, rectangular wave, ramp wave, trapezoidal wave, half sine wave, square wave, etc.
9.2 Adopting multiple channels and parameters digital close loop control, high resolution feedback sampling and signal adjusting technology, it can realize automatic adjustment of system PID value and synchronous high speed data sampling and feedback of all channels.
9.3 Multiple control modes are optional: load (Stress), deformation (strain), displacement, etc.
9.4 Automatic calibration and zero set
9.5 Digital display of axial load, axial displacement (deformation), test frequency and other parameters, all channels can work together and each channel can finish measuring, displaying and control task independently.
9.6 Software: Friendly-interface, easy-operation, it can run in window 98/2000/XP and has the following function: test condition and parameter setting, data processing, saving test data in different forms, replaying test course and data after test finishes, importing test data to Word, Excel, Access MATLAB and other soft wares, editing ,sorting and fitting curve; creating and printing test report.
1. Load frame 1 set
2. 30L/min Constant pressure servo oil source 1 set
3. 200KN servo actuator 1 set
4. Electro-hydraulic servo valve 1 set
5. 200KN Load cell 1 set
6. PC Servo Controller 1 set
7. Test accessories for Spring compression 1 set
8. Electromagnetic valve 1 set
9. Piping system and seals 1 set
10. Connecting cables and connector 1 set
11. Computer 1 set
12. Printer 1 set
13. LVDT for measuring displacement: 1 set
Please click on the image to view related products
JBW-N Low Temp JBDW Non metal material Impact tester
Electromechanical UTM Hydraulic UTM Compression Testing Machine

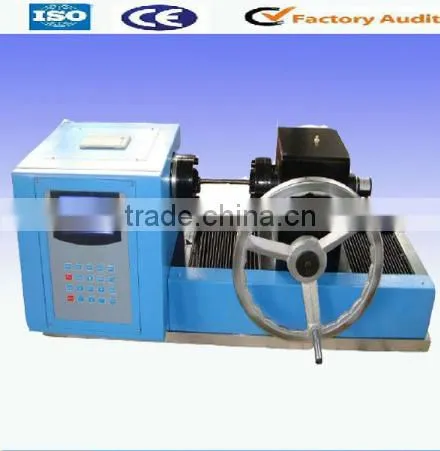

Friction and Wear Tester Creep Testing Machine Torsion Tester

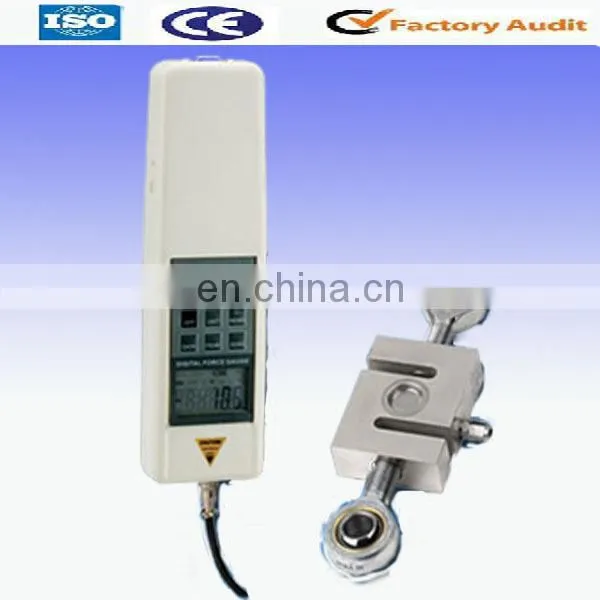

Melt Flow Indexer Hardness Tester Force Gauge
Packed in 2 plywood cases
Pre-service---Trade manager 24 Hours online service (skype:hilary8689)
Middle Service ---Recommend the suitable model and give competitive price
After serivce---2 years guarantee,Free installation CD/DVD, Remote control technical consult , oversea trainning,Provide newest software vision when update
OUR COMPANY-JINAN PRECISION TESTING EQUIPMENMT CO.,LTD (PTE)
PTE- A Material Testing Machine Manufacturer --
About PTE
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.
Welcome to enquiry and prompt reply will be done by our professional technical and sales person.
