BS 215 Standard Aluminum Conductor Steel Reinforced Overhead Application ACSR Bare Conductor
US$ 2 - 10
/ Meter
1000 Meters(Min. Order)
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
-
ASTM - B232 All Aluminum Steel Reinforce Overhead Application ACSR Bare Conductor
-
Overhead Conductor Aacsr for Power Transmission Line
-
Aluminum Stranded Conductor Steel Core Overhead ACSR Cables Price
-
150mm ACSR Dog Conductor Bare Flexible Aluminum Conductors Steel Reinforced Overhead Cable
-
ASTM Standard Peachbell/Rose/Poppy All Aluminum Conductor AAC
-
High Quality Acsr Conductor 120mm Cable Stranded Wires
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | ACSR | Type | High Voltage | |
| Application | Overhead | |||
| Conductor Material | Aluminum |
Product Description
Product Description
Application of BS 215 standard Overhead aluminum conductor steel reinforced ACSR bare conductor
1.Transmission and distribution of electric power had large span.
2.Transmission and distribution of electric power with high and very high voltage.
3.Electric power distribution from Power Station to sub cities.
2.Transmission and distribution of electric power with high and very high voltage.
3.Electric power distribution from Power Station to sub cities.
Standard
ASTM B231
BS EN 215
DIN/VDE 48201
IEC 61089
Other National Standards can also be applied

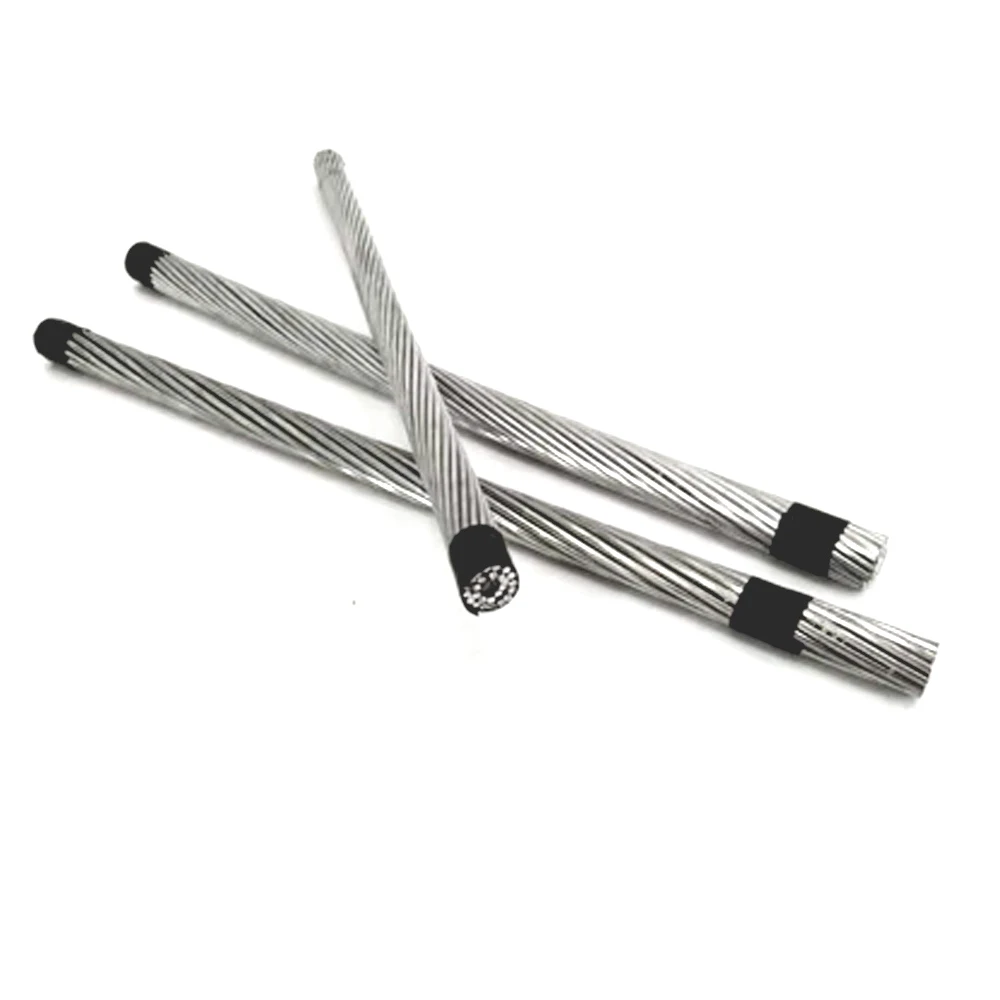

Construction of BS 215 standard Overhead aluminum conductor steel reinforced ACSR bare conductor
ACSR bare conductor are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.
The additional corrosion protection is available through the application of grease to the cores or infusion of the complete cable with grease.
By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be
reached.
Specification
Specification of ACSR bare conductor under BS215 Standard.
Code name | Area | Approx. overall diameter | Weight | Nominal breaking load | ||||||||||
Nominal Alum. | Alum. | Steel | Total | Alum. | Steel | Total | ||||||||
mm2 | mm2 | mm2 | mm2 | mm | kg/km | kg/km | kg/km | kN | ||||||
MOLE | 10 | 10.62 | 1.77 | 12.39 | 4.50 | 29 | 14 | 43 | 4.14 | |||||
SQUIRREL | 20 | 20.94 | 3.49 | 24.43 | 6.33 | 58 | 27 | 85 | 7.88 | |||||
GOPHER | 25 | 26.25 | 4.37 | 30.62 | 7.08 | 72 | 34 | 106 | 9.61 | |||||
WEASEL | 30 | 31.61 | 5.27 | 36.88 | 7.77 | 87 | 41 | 128 | 11.45 | |||||
FOX | 35 | 36.66 | 6.11 | 42.77 | 8.37 | 101 | 48 | 149 | 13.20 | |||||
FERRET | 40 | 42.41 | 7.07 | 49.48 | 9.00 | 117 | 55 | 172 | 15.20 | |||||
RABBIT | 50 | 52.88 | 8.82 | 61.70 | 10.05 | 145 | 69 | 214 | 18.35 | |||||
MINK | 60 | 63.18 | 10.53 | 73.71 | 10.98 | 173 | 82 | 255 | 21.80 | |||||
SKUNK | 60 | 63.27 | 36.93 | 100.30 | 12.95 | 175 | 290 | 465 | 53.00 | |||||
BEAVER | 70 | 74.82 | 12.47 | 87.29 | 11.97 | 205 | 97 | 302 | 25.70 | |||||
HORSE | 70 | 73.37 | 42.80 | 116.17 | 13.95 | 203 | 335 | 538 | 61.20 | |||||
RACOON | 75 | 79.20 | 13.20 | 92.40 | 12.30 | 217 | 103 | 320 | 27.20 | |||||
OTTER | 80 | 83.88 | 13.98 | 97.86 | 12.66 | 230 | 109 | 339 | 28.80 | |||||
CAT | 90 | 95.40 | 15.90 | 111.30 | 13.50 | 262 | 124 | 386 | 32.70 | |||||
HARE | 100 | 105.00 | 17.50 | 122.50 | 14.16 | 288 | 137 | 425 | 36.00 | |||||

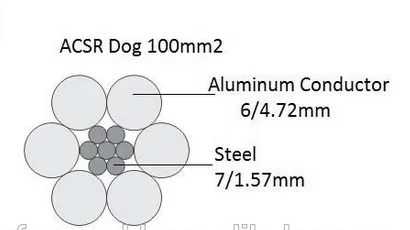

DOG | 100 | 105.00 | 13.50 | 118.50 | 14.15 | 288 | 106 | 394 | 32.70 | |||||
HYENA | 100 | 105.80 | 20.44 | 126.20 | 14.57 | 290 | 160 | 450 | 40.90 | |||||
LEOPARD | 125 | 131.30 | 16.80 | 148.10 | 15.81 | 360 | 132 | 492 | 40.70 | |||||
COYOTE | 125 | 132.10 | 20.10 | 152.20 | 15.89 | 365 | 157 | 522 | 46.40 | |||||
COUGAR | 125 | 130.30 | 7.25 | 137.50 | 15.25 | 362 | 57 | 419 | 29.80 | |||||
TIGER | 125 | 131.10 | 30.60 | 161.70 | 16.52 | 362 | 240 | 602 | 58.00 | |||||
WOLF | 150 | 158.00 | 36.90 | 194.90 | 18.13 | 437 | 289 | 726 | 69.20 | |||||
DINGO | 150 | 158.70 | 8.80 | 167.50 | 16.75 | 437 | 69 | 506 | 35.70 | |||||
LYNX | 175 | 183.40 | 42.80 | 226.20 | 19.53 | 507 | 335 | 842 | 79.80 | |||||
CARACAL | 175 | 184.20 | 10.30 | 194.50 | 18.05 | 507 | 80 | 587 | 41.10 | |||||
PANTHER | 200 | 212.00 | 49.50 | 261.50 | 21.00 | 586 | 388 | 974 | 92.25 | |||||
LION | 225 | 238.50 | 55.60 | 294.20 | 22.26 | 659 | 436 | 1095 | 109.60 | |||||
BEAR | 250 | 264.00 | 61.60 | 325.60 | 23.45 | 730 | 483 | 1213 | 111.10 | |||||
GOAT | 300 | 324.30 | 75.70 | 400.00 | 25.97 | 896 | 593 | 1489 | 135.70 | |||||
SHEEP | 350 | 374.10 | 87.30 | 461.40 | 27.93 | 1034 | 684 | 1718 | 155.90 | |||||

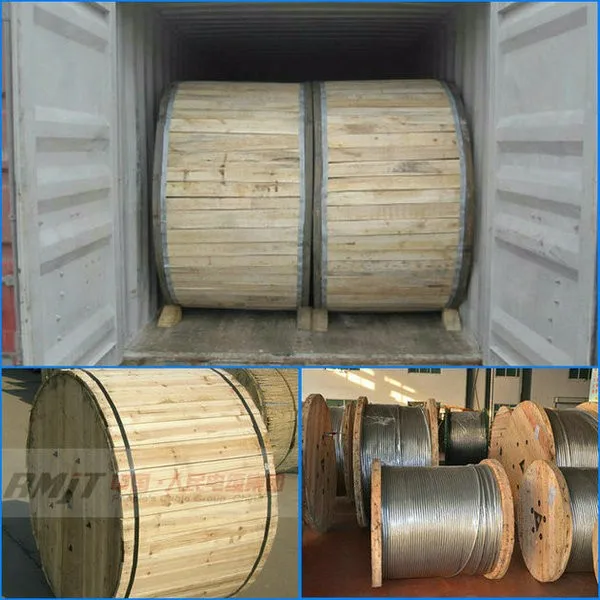

Pakaging & Shipping

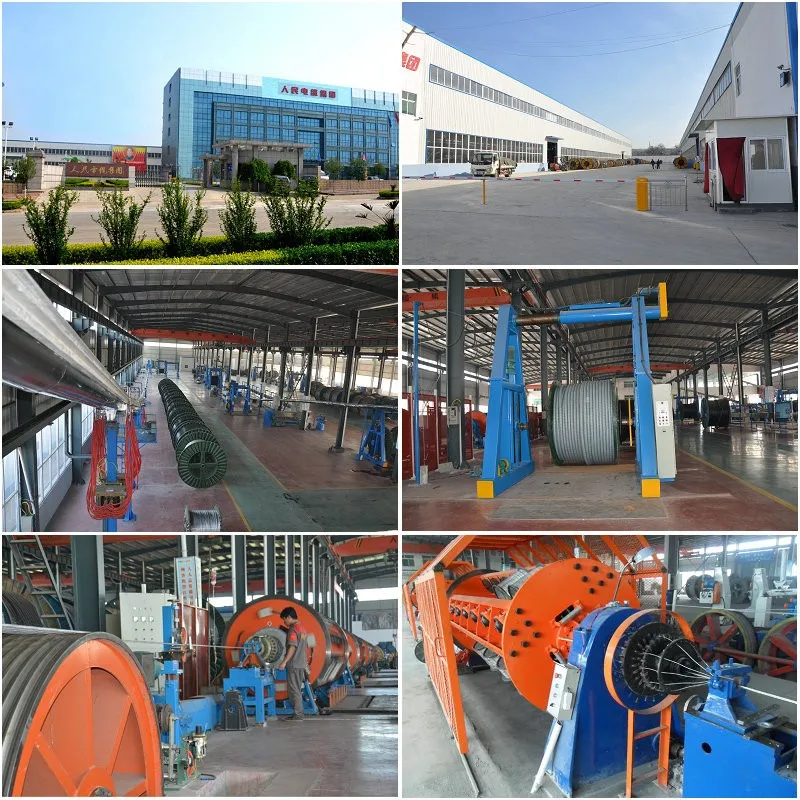

Company exhibition
