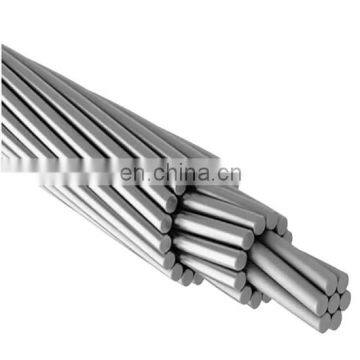

Aluminum Alloy Bare AAAC conductor Cairo
1. Applicaton of Aluminum Alloy Bare AAAC conductor Cairo
Used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics.Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.
2. Features of Aluminum Alloy Bare AAAC conductor Cairo
-Large span and long crossing is possible. Tensile strength is much higher than All Aluminum Conductor.
-Lower tower is possible. Light in weight and and better sag characteristic approx 1.3-1.4 times better than AAC.
-Better Ampacity and Overload safely as well as its corrosion resistance.
-Excellent and comprehensive performance could save your cost and time in tower construction, installation and maintenance.
3. Construction of Aluminum Alloy Bare AAAC conductor Cairo
-Concentric-lay stranded
-The AAAC conductor is manufactured from a heat-treated, magnesium- silicide high-strength 6201 T81 aluminum alloy.
-Popular Aluminum Strands 7, 19, 37or more wires.
4. Standards of Aluminum Alloy Bare AAAC conductor Cairo
-ASTM B399
-BS 50183
-DIN 48201
-IEC 61089
-Other National Standards can also be applied
5. Technical parameter of Overhead application ASTM-B399 Aluminum Alloy AAAC conductor Cairo
| Code word | Conductor size | Stranding | Section area | Diameter of conductor | Linear mass | Rated strength | D.C. resistance at 20 ℃ | Current Rating |
| AWG (MCM) | No./mm | mm2 | mm | Kg/km | kgf | Ω/km | A | |
| Akron | 7/1.68 | 15.51 | 5.04 | 42.7 | 502 | 2.1598 | 78 | |
| Alton | 48.69(4) | 7/2.12 | 24.67 | 6.35 | 67.56 | 799 | 1.586 | 114 |
| Ames | 77.47(2) | 7/2.67 | 39.26 | 8.02 | 107.5 | 1275 | 0.8547 | 149 |
| Azusa | 123.3(1/0) | 7/3. 37 | 62.46 | 10.11 | 171 | 2019 | 0.5365 | 197 |
| Anaheim | 155.4(2/0) | 7/3.78 | 78.75 | 11.35 | 215.16 | 2447 | 0.4264 | 226 |
| Amherst | 195.7 (3/0) | 7/4.25 | 99.2 | 12.75 | 271.5 | 3079 | 0.3373 | 258 |
| Alliance | 246.9 (4/0) | 7/4.77 | 125.1 | 14.3 | 342.6 | 3885 | 0.2678 | 299 |
| Butte | 312.8 | 19/3.26 | 158.5 | 16.31 | 434 | 4976 | 0.2112 | 332 |
| Canton | 394.5 | 19/3.66 | 199 | 18.31 | 547.4 | 6016 | 0.1676 | 392 |
| Cairo | 456.4 | 19/3.98 | 235.8 | 19.89 | 645.7 | 7097 | 0.1431 | 417 |
| Darien | 559.5 | 19/4.36 | 283.5 | 21.79 | 776.3 | 8525 | 0.1181 | 499 |
| Elgin | 652.4 | 19/4.71 | 330.6 | 23.55 | 970.6 | 9942 | 0.1012 | 517 |
| Flint | 740.8 | 37/3.59 | 375.4 | 25.15 | 1028 | 11013 | 0.08944 | 540 |
| Greeley | 927.2 | 37/4.02 | 469.8 | 28.14 | 1287 | 13868 | 0.07133 | 627 |
Our products meet standards of GB/T, ASTM B232, ASTM B711, ASTM B524,ASTMB549-88,ASTMB415,BS215 Part2 , CSA C49 ,DIN48204, DIN48206, IEC61089
and so on.As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.
