Home > Products > Bare Conductor > Overhead BS Standard aluminum dog conductor ACSR 100mm2

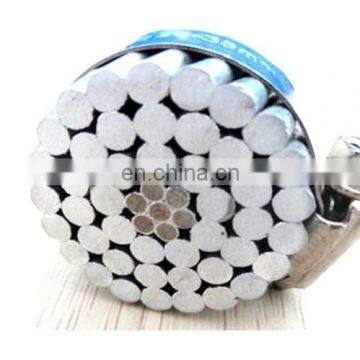

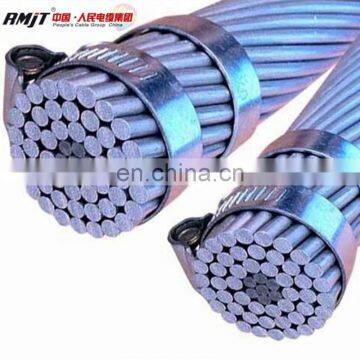

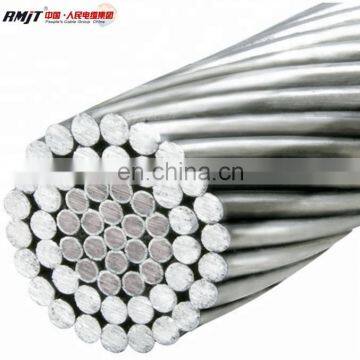

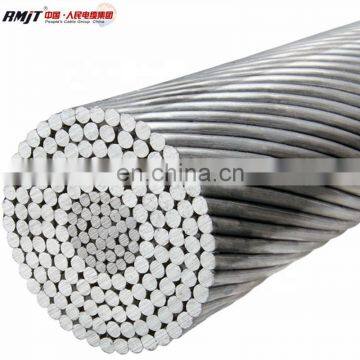

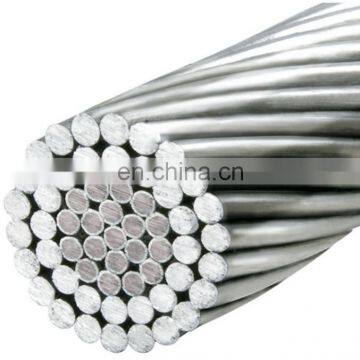

Overhead BS Standard aluminum dog conductor ACSR 100mm2
US$ 0.5 - 4.5
/ Meter
1 Meter(Min. Order)
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
-
Overhead ACSR AACAAAC ACSS ACCC AACSR ACAR Bare Conductor
-
All Aluminum Bare Conductor ACSR conductor
-
1.8mm 2.5mm Galvanized Guy of Steel Cable Wire
-
ASTM B232 477MCM Overhead Bare ACSR Hawk Conductor 10kv Cable
-
AAAC 300 sqmm Rabbit Conductor sq
-
240/40 ACSR Aluminum Conductor AAC Conductors Bare Conductor
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | ACSR | Type | Medium Voltage | |
| Application | Overhead | |||
| Conductor Material | Aluminum |
Product Description
Product Description
Application of Overhead BS Standard aluminum dog conductor ACSR 100mm2
-Used as bare overhead transmission cable and as primary and secondary distribution cable.
-ACSR offers optimal strength for line design.
-Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Features of Overhead BS Standard aluminum dog conductor ACSR 100mm2
-Very efficient conductivity and high tensile strength.
-Most economical solution for overhead power transmission and distribution projects.
-Excellent weather-resistance property.-Dependable and stable performance up to 40 years.

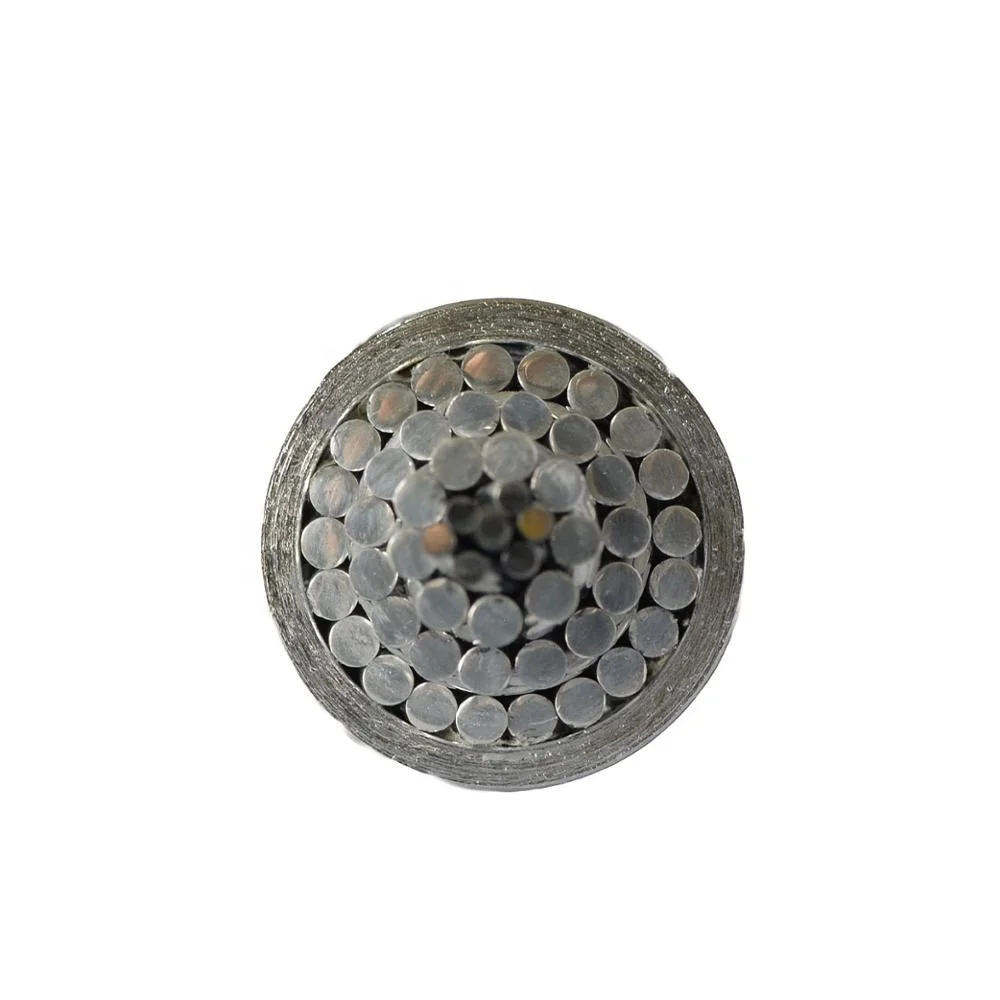

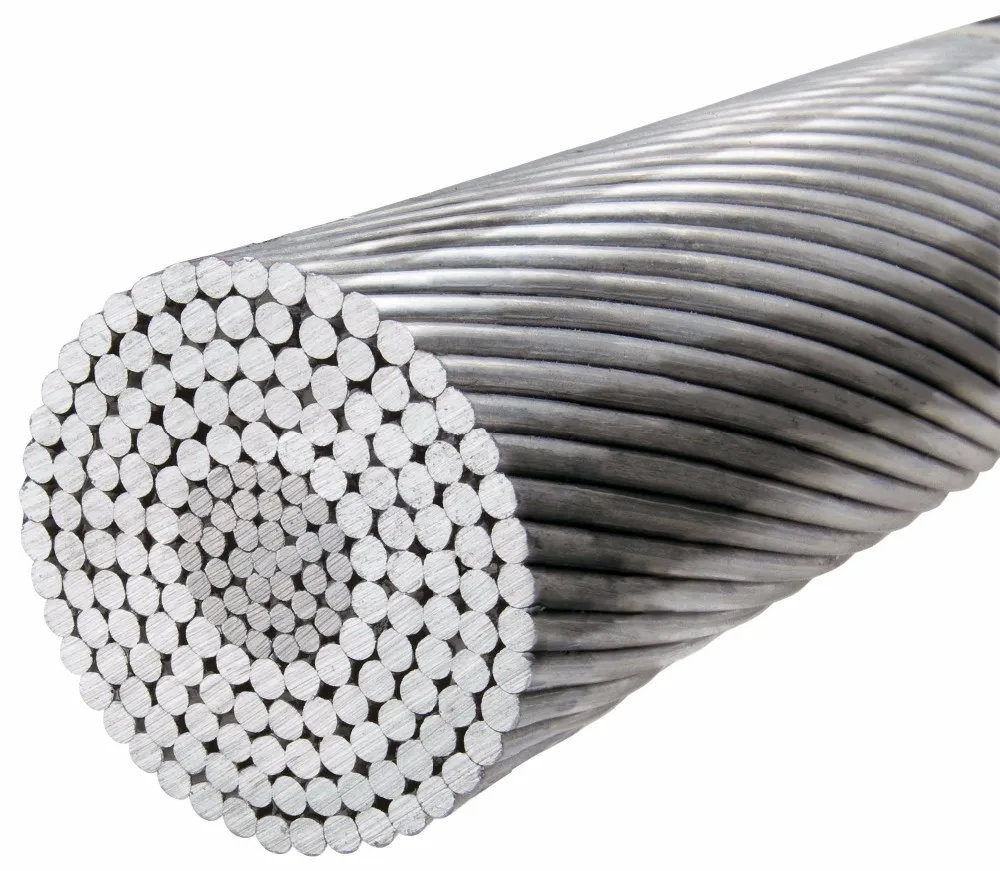

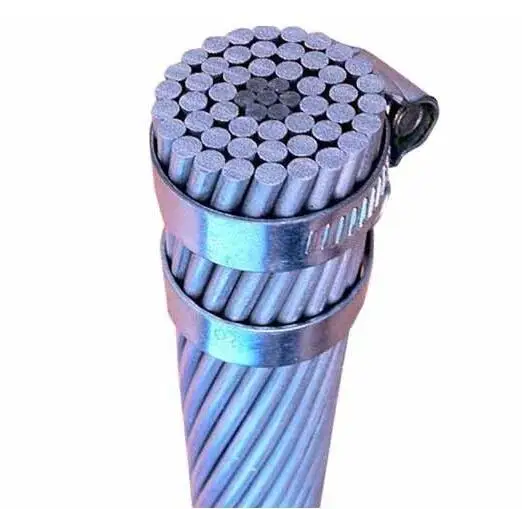

Construction of Overhead BS Standard aluminum dog conductor ACSR 100mm2
-Concentric-lay stranded
-1 up to 4 Layers Aluminum wires stranded, 6 to 84 Aluminum wires.-1 up to 3 Layers Steel Wires as Core, 1 to 19 Steel Wires.
-Al/St 6/1, 7/1, 8/1, 12/7, 16/19, 18/1, 24/7, 26/7, 30/7, 30/19, 36/1, 54/7, 54/19, 72/7, 76/19, 84/19.
-Coating of zinc, Zn-5A1-MM, high-strength, Extra and Ultra available.
-Can-do both left-hand lay and right-hand lay.
Specification of bare conductor ACSR conductor dog
Rare or special specification also available by your referred document or by your simple.
Grease or other special finish available as you required.
Standards of bare conductor ACSR cable
-ASTM B232
-BS 215-2
-DIN 48204
-IEC 61089
-CSA C49
-AS / NZS 3607
-Other National Standards can also be applied.
Specification
Specification
Technical parameter of BS 215 part-2 bare conductor ACSR conductor dog
Code Name | Norminal Alum. mm2 | No./Dia.of Stranding Wires | mm2 | Approx. Overall Dia. mm | Approx. Weight kg/km | ||
Aluminum No./mm | Steel No./mm | ||||||
MOLE | 10 | 6/1.50 | 1/1.50 | 12.39 | 4.50 | 43 | |
SQUIRREL | 20 | 6/2.11 | 1/2.11 | 24.43 | 6.33 | 85 | |
GOPHER | 25 | 6/2.36 | 1/2.36 | 30.62 | 7.08 | 106 | |
WEASEL | 30 | 6/2.59 | 1/2.59 | 36.88 | 7.77 | 128 | |
FOX | 35 | 6/2.79 | 1/2.79 | 42.77 | 8.37 | 149 | |
FERRET | 40 | 6/3.00 | 1/3.00 | 49.48 | 9.00 | 172 | |
RABBIT | 50 | 6/3.35 | 1/3.35 | 61.70 | 10.05 | 214 | |
MINK | 60 | 6/3.66 | 1/3.66 | 73.71 | 10.98 | 255 | |
SKUNK | 60 | 12/2.59 | 7/2.59 | 100.30 | 12.95 | 465 | |
BEAVER | 70 | 6/3.99 | 1/3.99 | 87.29 | 11.97 | 302 | |
HORSE | 70 | 12/2.79 | 7/2.79 | 116.17 | 13.95 | 538 | |
RACOON | 75 | 6/4.10 | 1/4.10 | 92.40 | 12.30 | 320 | |
OTTER | 80 | 6/4.22 | 1/4.22 | 97.86 | 12.66 | 339 | |
CAT | 90 | 6/4.50 | 1/4.50 | 111.30 | 13.50 | 386 | |
HARE | 100 | 6/4.72 | 1/4.72 | 122.50 | 14.16 | 425 | |
DOG | 100 | 6/4.72 | 7/1.57 | 118.50 | 14.15 | 394 | |
HYENA | 100 | 7/4.39 | 7/1.93 | 126.20 | 14.57 | 450 | |
LEOPARD | 125 | 6/5.28 | 7/1.75 | 148.10 | 15.81 | 492 | |
COYOTE | 125 | 26/2.54 | 7/1.91 | 152.20 | 15.89 | 522 | |
COUGAR | 125 | 18/3.05 | 1/3.05 | 137.50 | 15.25 | 419 | |
TIGER | 125 | 30/2.36 | 7/2.36 | 161.70 | 16.52 | 602 | |
WOLF | 150 | 30/2.59 | 7/2.59 | 194.90 | 18.13 | 726 | |
DINGO | 150 | 18/3.35 | 1/3.35 | 167.50 | 16.75 | 506 | |
LYNX | 175 | 30/2.79 | 7/2.79 | 226.20 | 19.53 | 842 | |
CARACAL | 175 | 18/3.61 | 1/3.61 | 194.50 | 18.05 | 587 | |
