ACSR conductor price list All Aluminum Bare Conductor
APPLICATION:
Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support.
ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
FEATURES:
ACSR conductors are recognized for their record of economy, dependability and favorable strength/weight ratio. ACSR conductors combine the light weight and good conductivity of aluminum with the high tensile strength and ruggedness of steel.
In line design, this can provide higher tensions, less sag and longer span lengths than obtainable with most other types of overhead conductors.

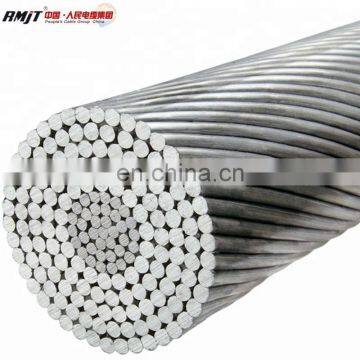

The steel strands are added as mechanical reinforcement. The cross-sections above illustrate some common stranding
CONSTRUCTION:
ACSR is a composite concentric-lay-stranded conductor.
The steel strand or strands form the central core of the conductor, around which is stranded one or more layers of aluminum 1350-H19 wires.
The steel core may consist of a single strand or a concentric-stranded cable of 7, 19, 37 or more wires. The sizes and stranding listed on the following pages are those most frequently used for overhead lines.
STANDARDS:
ASTM B232, BS 215 Part 2 , DIN 48204, IEC 61089, JIS C3110-78, NF C34-120
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Delivery:
Port: Tianjin, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as triplex overhead service conductors(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).
People's Cable Group Co.,Ltd
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
Please click the bule words of the detailed products, you can find the specifications in the new website。
ASTM/BS/CSA/IEC standard overhead acsr Parrot/Martin/Snowbird/Mallard conductor acsr conductor
high tensile strength ACSR DOG conductor with BS 215 part 2 with factory price
ACSR LYNX
For more information, please kindly contact us freely!
Welcome your inquiry of ACSR bare conductor, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.
