Overhead Bare 95/15 150/20 Aluminium Conductor Steel Core ACSR Conductor Cable
US$ 1 - 99
MOQ: 1 Meter
Key Specifications
Get Latest Price
Brand Name:
RMJT
Place of Origin:
Henan, China
Model Number:
ACSR Conductor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
35mm2 70mm2 Bare Hard Drawn Stranded Copper ConductorUS$ 3 - 20MOQ: 100 Meters -
Overhead Application BS Standard Aluminum Alloy AAAC Bare ConductorUS$ 1 - 5MOQ: 1 Meter
-
10mm 16mm 25mm 35mm Overhead Aluminium ConductorsUS$ 0.1 - 8.99MOQ: 1000 Meters
-
Overhead Electric Cables Bare / 50mm/ 795mcm / ACSR Conductors And Acsr Wire Cable Conductor Low Voltage Cables SuppliersUS$ 0.33 - 0.35MOQ: 1000 Meters
-
Chinese Hot Sale Overhead Cable 240mm2 Aaac ConductorUS$ 285 - 300MOQ: 10 Kilometers
Brand Name
RMJT
Place of Origin
Henan, China
Model Number
ACSR Conductor
Application
Overhead
Product Description
1. Brief Description

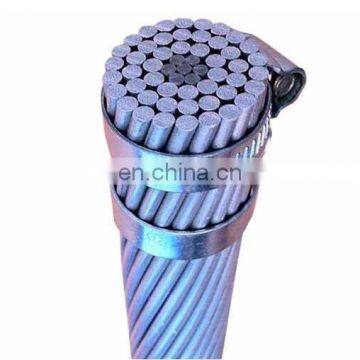

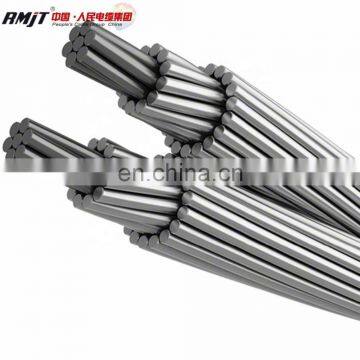

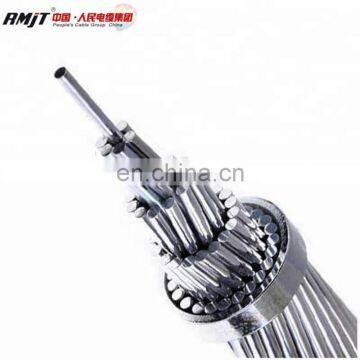

ACSR(Aluminum Conductor Steel Reinforced),consisting of a galvanized steel core which is surrounded by concentric layers of aluminum wires, and can becorrosion resistant if necessary. It is widely used in the overhead power distribution system.
2.Features:
a. high tensile strength
b. better sag properties
c. economic design
d. best suited for transmission lines with long spans
3.Application:
ACSR conductor have been widely used in power transmission lines with various voltage.
Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
4.Standard:
We can supply this conductor according to different recognized standards,
such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110,
and customers’ special specifications also can be satisfied.
5.Package:
In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
6.Material:
Conductor: AL1350 pure aluminum
Steel core: G1A or G2A steel wire
Zinc coating steel wire
Technical parameters:
Size | Number / Diameter of wire | Calculated Cross Section Area | Approx. Overall Diameter | Approx. Weight of Conductor | Calculated Breaking Load | |||||||||
AL | GSW | AL | GSW | |||||||||||
mm² | No. / mm | No. / mm | mm² | mm² | mm | kg/km | kN | |||||||
16 | 6 / 1.84 | 1 / 1.84 | 16 | 2.7 | 5.52 | 64 | 6.08 | |||||||
25 | 6 / 2.30 | 1 / 2.30 | 24.9 | 4.2 | 6.9 | 101 | 9.13 | |||||||
40 | 6 / 2.91 | 1 / 2.91 | 39.9 | 6.7 | 8.73 | 161 | 14.4 | |||||||
63 | 6 / 3.66 | 1 / 3.66 | 63.1 | 10.5 | 10.98 | 255 | 21.63 | |||||||
100 | 6 / 4.61 | 1 / 4.61 | 100.1 | 16.7 | 13.83 | 405 | 34.33 | |||||||
125 | 18 / 2.97 | 1 / 2.97 | 124.7 | 6.9 | 14.85 | 397 | 29.17 | |||||||
125 | 26 / 2.47 | 7 / 1.92 | 124.6 | 20.3 | 15.64 | 503 | 45.69 | |||||||
... | ||||||||||||||
Attention: We can provide more information than above data, if you need.The above are just some examples.
