Manufacturer 498.1mm2 Aluminium Alloy Conductor BSEN50183 Overhead / Bare Tranminssion Line/ AAAC Totara

All aluminum alloyConductor AAAC Tatara

Applications:

AAAC aluminum alloy conductorsare extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction. The aluminum alloy conductors are used in place of single-layer ACSR conductors (i.e., #6 to #4/0 AWG) to reduce power losses in overhead distribution and transmission lines. The inductive effect of the ACSR’s steel core is eliminated, hence increasing the operating efficiency of the line.

Product Construction:

Complete Conductor:

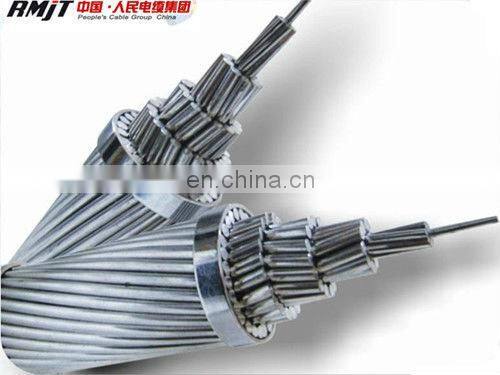

AAAC is a high-strength aluminum alloy, concentric lay-stranded conductor. It is similar in construction and appearance to the AAC all-aluminum conductor.

The AAAC conductoris manufactured in accordance with the requirements of the latest issue of ASTMB399. The AAAC conductor is manufactured from a heat-treated, magnesium-silicate high-strength 6201T81 aluminum alloy.

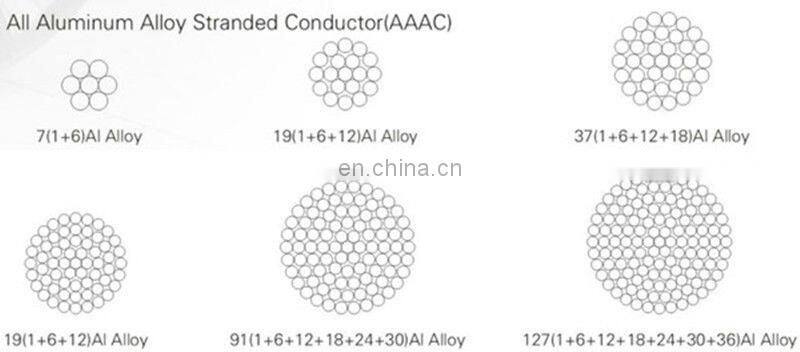

The aluminum strandsconsist of a concentric stranded cable of 7, 19, 37, 91, 127 wires. The single wires’ diameter ranges from 1.7mm to 4.77mm.

AAAC6201 Applied International Standard:

ASTM B399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors

ASTM-B711 Concentric-Lay-Stranded Aluminum-Alloy Conductors, Steel

Reinforced (AACSR) (6201)1

BS3242 Aluminum Alloy Stranded conductor

DIN48021 Aluminum Alloy 6201 Conductor

SS4240814  Alloy, Swedish conductors, AL-59, ACSR, AAAC

IEC61089 Round wire concentric lay overhead electrical stranded conductors

IEC60104 Aluminum-magnesium-silicon alloy wire for overhead line conductors

Code name by all Standards:
