Help CenterBare Aluminum AAC Marigold 1113 AWG/MCM Conductor ASTM B231
Related Products
-
ASTM B399 927.2MCM Overhead Bare Aluminum Alloy AAAC Greeley ConductorUS$ 0.1 - 4MOQ: 1000 Meters -
Alumoweld/Aluminium Clad Steel Strand ACS Conductor Earth WireUS$ 1,220 - 1,225MOQ: 10 Tons
-
Chinese Top Factory 3.35mm Galvanized Steel Core Wire ACSR Rabbit ConductorUS$ 640 - 660MOQ: 5 Kilometers
-
Chinese Manufacture Various Standards and Specifications AAAC/ACSR/ACAR ConductorUS$ 0.2 - 1MOQ: 2000 Meters
-
100mm 477 MCM ASTM AAC ACSR Bare Overhead Pure Aluminum Conductor Price Power CablesUS$ 0.1 - 2.7MOQ: 1000 Meters
aac marigold conductor Marigold All Aluminium Conductors (AAC)
aac marigold conductor aac marigold conductor All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM (AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228
(AAAC) Conductor as per ASTM-B-399-1992
(AAAC) Conductor as per BS-3242-1970
(AAAC) Conductor IS: 398-IV-1994
(ACSR) as per ASTM-B-233-1992
(AAC) as per BS-215-1-1970
(AAC) as per IS-398-1: 1976
(AAC) as per ASTM-B-231-1990
(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191
aac marigold conductor AAC(All aluminum conductor) are suited for overhead power line.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power
Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Specifications
ACSR bare conductor meets or exceeds the following ASTM specifications:
aac marigold conductor
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Notes
aac marigold conductor
Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.
Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq. Ft sun, 0.5 coefficients of emissivity and absorption.
aac marigold conductor aac marigold conductor aac marigold conductor
| All Aluminium Stranded Conductors (Class A & Class AA) ASTM B-231 | |||||||

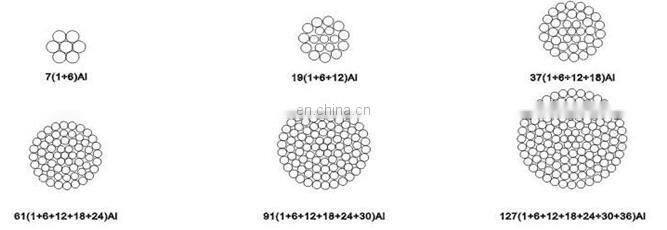

| Code name | Area | Stranding and wire diameter | Approox. Overall diameter | Weight | Nominal breaking load | Nom. DC resistance at 20 deg. | |
| Nominal | Actual | ||||||
| AWG or MCM | mm2 | mm | mm | kg/km | kN | ohm/km | |
| LARKSPUR | 1033.5 | 523.68 | 61/3.307 | 29.76 | 1444 | 80.12 | 0.055 |
| BLUEBELL | 1033.5 | 523.68 | 37/4.244 | 29.72 | 1444 | 78.63 | 0.055 |
| MARIGOLD | 1113 | 563.93 | 61/3.432 | 30.89 | 1555 | 86.28 | 0.0511 |
| HAWTHORN | 1192.5 | 604.26 | 61/3.551 | 31.05 | 1666 | 92.45 | 0.0477 |
| NARCISSUS | 1272 | 644.51 | 61/3.668 | 33.02 | 1777 | 98.61 | 0.0447 |
aac marigold conductor aac marigold conductor aac marigold conductor
aac marigold conductor aac marigold conductor aac marigold conductor
aac marigold conductor aac marigold conductor aac marigold conductor
aac marigold conductor aac marigold conductor aac marigold conductor
aac marigold conductor aac marigold conductor aac marigold conductor
aac marigold conductor aac marigold conductor aac marigold conductor
