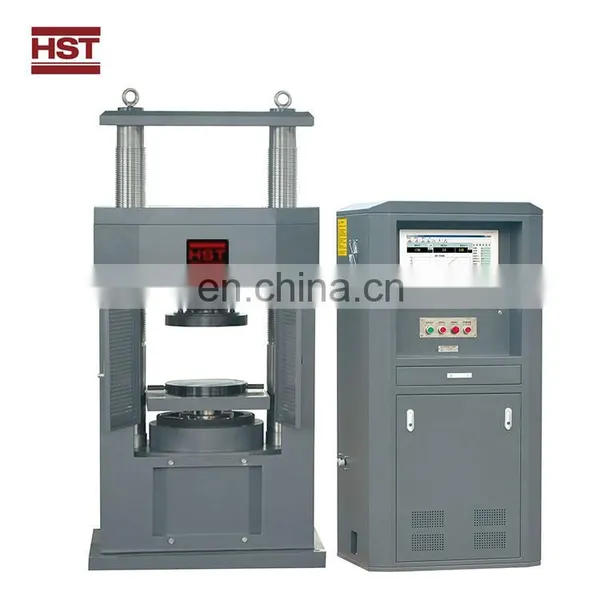

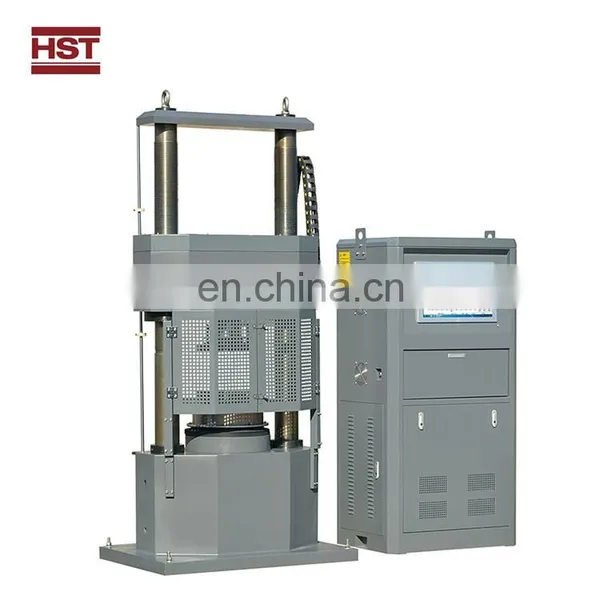

YAW-300D Computer Controlled Full Closed-loop Constant Stress Brick Compression Testing Machine
1. Introduction:
This machine adopt Ac servo drive, precision reduction gears drives the ball screw, with high test accuracy, low noise. More used computer control, with constant test force, constant stress, test force keep and control mode. Can test cement compression and flexual performance.
2. Main Specs:
Max compression test force |
300kN |
Max flexual test force |
10kN |
Test force range |
2%~100%FS |
Test force accuracy |
≤±1% |
Load speed |
0.1~9.9KN/S |
Displacement indicate error |
±1% |
Displacement resolution |
0.01mm |
Displacement speed adjust |
0.01~50mm/min |
Control and deal mode |
Computer constant control and auto dealing |
Effective test width |
230mm |
Space between upper and lower |
200mm (optional) |
Effective compression space |
50mm |
Compression plate size |
140mm |
Machine size |
800×385×1490mm |
Power supply |
220V,50Hz,1500W |
