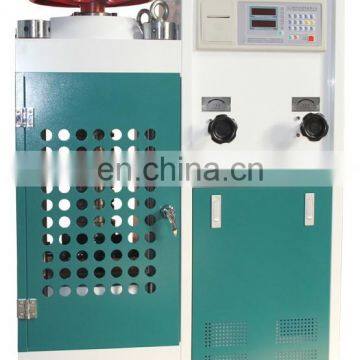

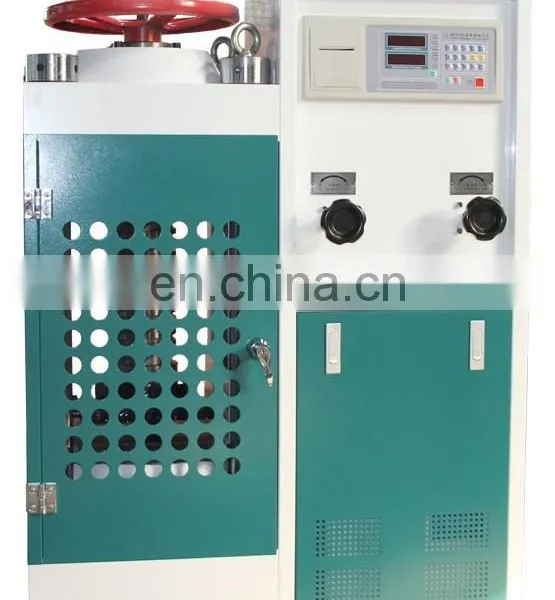

YES 3000kN Digital Display Concrete Cube Crushing Machine
1. Application
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Main Specifications
1. Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
*Space adjusting way: Electric ball screw adjusting to realize the compression space adjusting
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3. Main Specifications
Model |
YES-3000 |
Max test force |
3000kN |
Test space adjusting way |
Manual ball screw adjusting |
Control way |
Manual control loading process |
Accuracy class |
1 class |
Test force range |
300~3000kN |
Test value accuracy |
Better than ±1% |
Test force resolution |
0.01kN |
Hydraulic pump rated pressure |
40MPa |
Oil cylinder stroke |
50mm |
Max distance between upper and lower plate |
320 mm |
Max distance between two columns |
310mm |
Upper and lower pressure plate |
270×270mm |
Main unit dimension |
1030×420×1600mm |
Package dimension |
1200×600×1700mm |
Power supply |
1.0Kw/AC380V |
Weight |
1200kg |
4,Configuration:
4.1 High strength main unit- 1 set
4.2 one-piece Oil source control cabinet-1 set
4.3 High precision pressure sensor-1pc
4.4 Digital display operation instrument- 1 set
4.5 Mini printer- 1 pc;
4.6 Compression grip-- 1 set
2000 YES 2000kN Digital Display Manual Concrete Tester Price
CE Certificate
