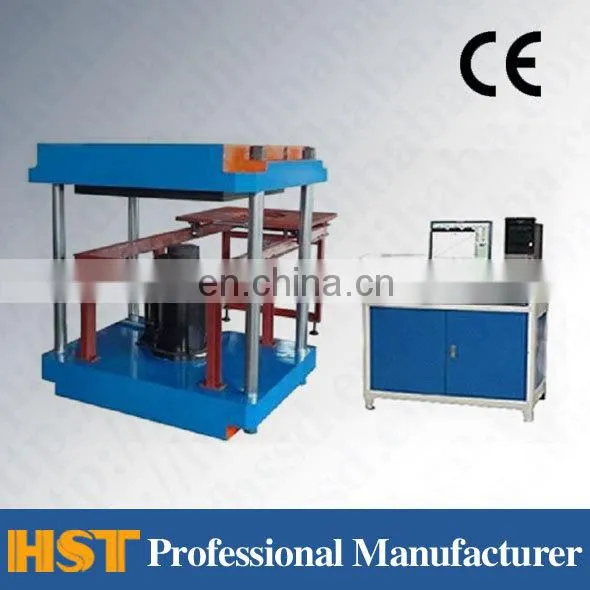

HST-600 Manhole Cover Compression Testing Machine/Universal Testing Machine
1. Applications:
This testing machine is used to manhole covers bearing capacity and deformation test.
2.Specifications
Model |
YJW-60 |
Max test force |
600KN |
Effective test space |
1200mm×1200mm |
Working bench height |
300mm |
Test force accuracy |
≤±1% |
Loading speed |
0.1~30KN/s (computer control or manual speed regulating) |
Piston stroke |
200mm |
Deformation test range |
0-200mm |
Deformation resolution |
0.01mm |
Loading indicate accuracy |
0.1KN |
Loading method |
Electric hydraulic |
Motor power |
1.5KW |
Power source |
380V or 220V |
Machine size(L*W*H) |
1800mm×1500mm×1300mm |
Machine weight |
4000Kg |
3.Main configuration:
1. 600KN main unit----1 set (include: cylinder piston, rigid block,displacement meter,force sensor)
2. oil source control----1 set (include: motor oil pump, change- over valve, manual speed control valve, oil filter, several oil tube .
3. Lenovo computer---- 1 set
4. colour printer----1 set
5. instruction manual, certificate of quality, warranty card, packing list----1 suit
