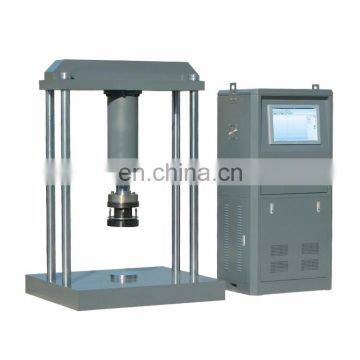

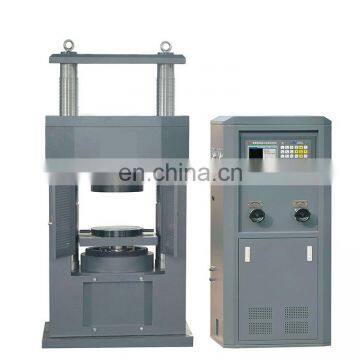

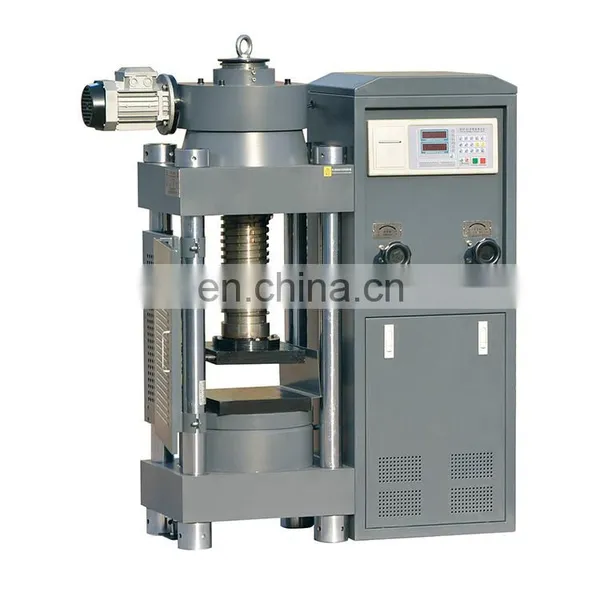

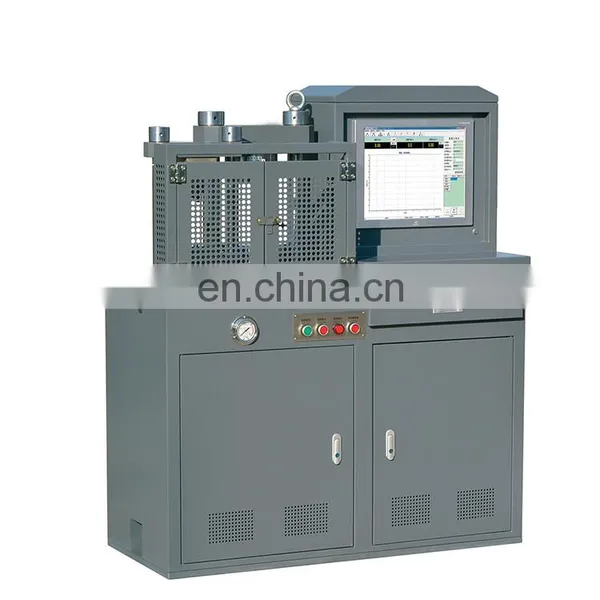

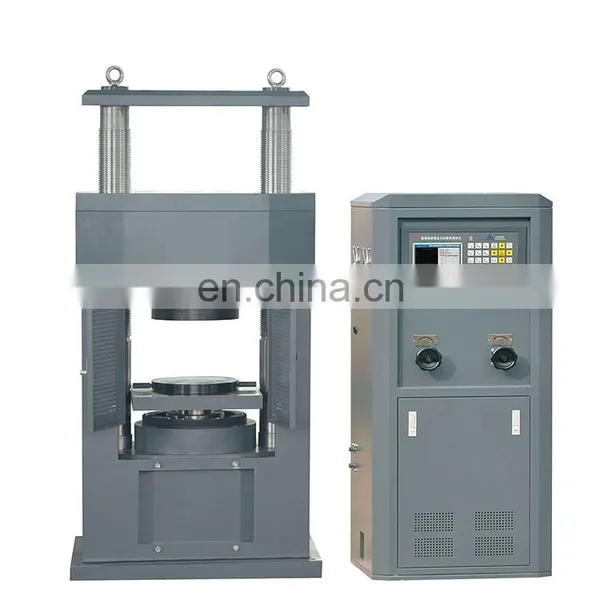

YAW-200G 20Ton 200KN Computerized Mortar Cement Concrete Cubes Pressure Testing Machine
Contact: Mobile/Whatsapp: +86-15866781190 Skype: hstbetty009
YAW-200G 20Ton 200KN Computerized Mortar Cement Concrete Cubes Pressure Tester, Brick Testing Machine
1.Application:
This Series testing machine is mainly used for the test brick,stone,cement,concrete and other materials,the compressive strength test,but also compressive properties of other materials used for testing. This machine is specially designed for the customers group.It can use in the above condition:strict loading progress,special control modulus,frequent space adjustment and bad environment.
2.Features:
2.1 AC servo motor to drive the precise screw operation.
2.2 Control system can realize constant stress,constant displacement,constant deformation and various models of automatic control and any programming control.
2.3 Host underneath, clamping sample quickly.
2.4 The machine all steel forging high strength, good resistance to fatigue.
2.5 AC servo motor and precious screw complete accurate control;Load cell measures load precisely.
2.6 Low noise.
2.7 Peak value holding,automatic saving and printing.
2.8 Automatically check all the related history record according to the test condition,test date and test data.
2.9 Automatic overload protection stop when the load more than full range 2% to 5%.
3.Main Specifications:
Model | YAW-100G | YAW-200G | YAW-300G |
Max. Load | 100KN | 200KN | 300KN |
Test Class | 1 Class | ||
Control Way | Constant Stress And Constant Strain Constant Displacement Closed Loop Control Mode | ||
Load Range | 2%-100%FS | ||
Load Accuracy | Better Than ≤±1% | ||
Displacement Value Accuracy | Better Than ±0.5% | ||
Displacement Value Resolution | 0.005mm | ||
Displacement Rate Control Adjusting Range | 0.005~25mm/min | ||
Effective Compression Stroke | 80mm | ||
Max Distance Between Upper And Lower Platen | 220mm | ||
Central Distance Between The Two Columns | 350mm | ||
Size Of Upper And Lower Platen | Dia 140mm | ||
Power | 220V, 1.5kW, 50Hz | ||
