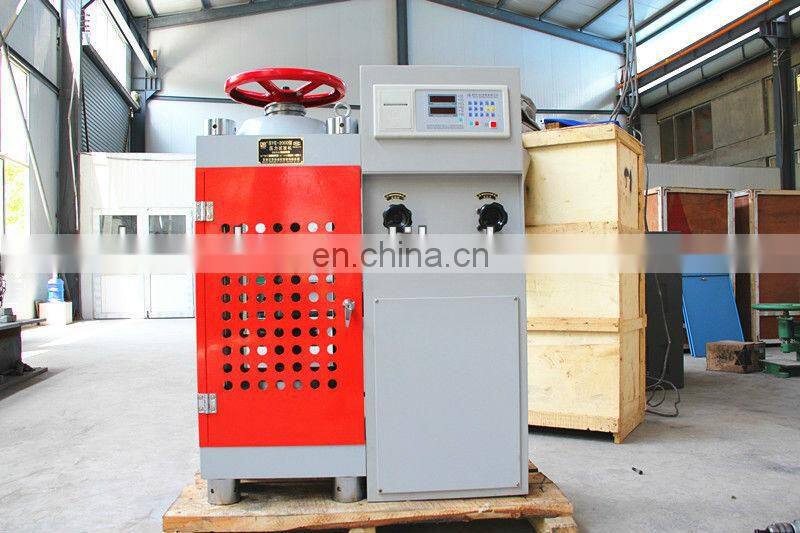

YES 100ton-300ton Digital Display Brick Compression and Bending Test Equipment / Concrete Compressive Strength Test Machine
1. Application
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institutionlines. The test operation and data processing meets standard requirements.
2. Main Specifications
Model | YES-1000 | YES-2000 | YES-2000D | YES-3000D | |
Max. load | 1000kN | 2000kN | 2000kN | 3000kN | |
Class | 1 class | 1 class | 1 class | 1 class | |
Testing space regulating way | Manual ball screw adjust | Electric ball screw adjust | |||
Control way | Manual control load way | ||||
Oil source control cabinet structure form | One-piece bench oil source control cabinet | ||||
Range of test force | 4% ~100%FS | ||||
Indicating value accuracy | ±1% | ||||
Piston route | 50mm | 50mm | 50mm | 80mm | |
Max piston speed | / | / | 50mm/min | 80mm/min | |
Range between the working tables | 320mm | 320mm | 320mm | 340mm | |
Pressure plates size | 250*250mm(Can be customized) | ||||
Display | LCD | ||||
Power supply | 2.1Kw/AC380V | ||||
