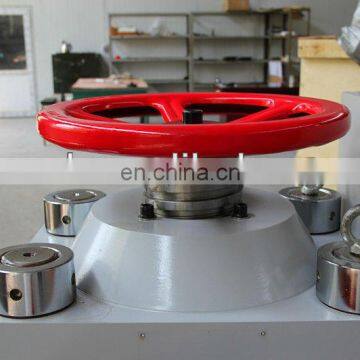

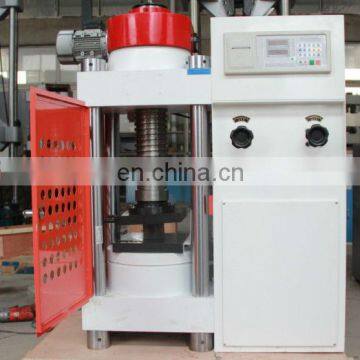

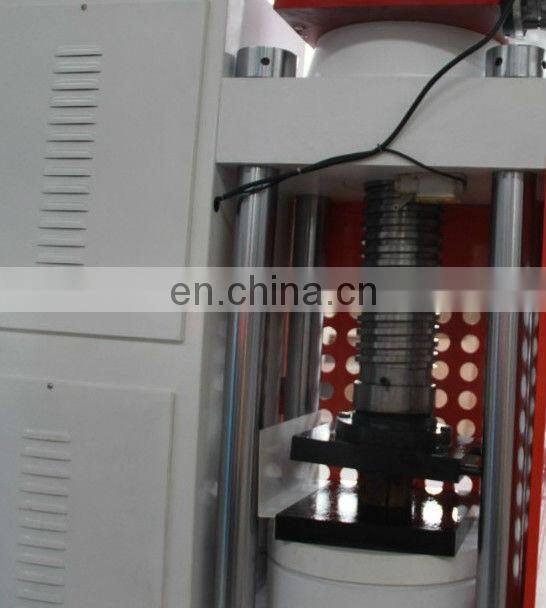

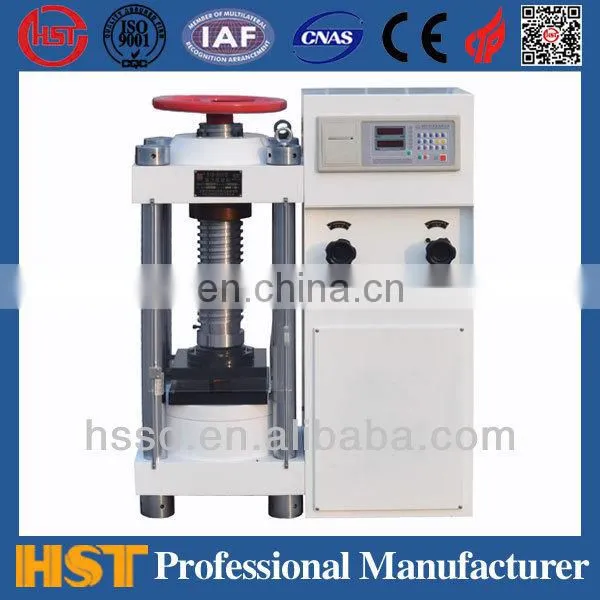

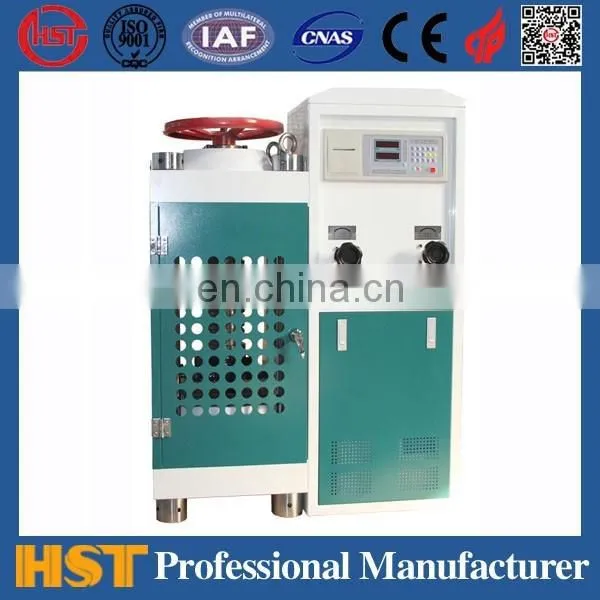

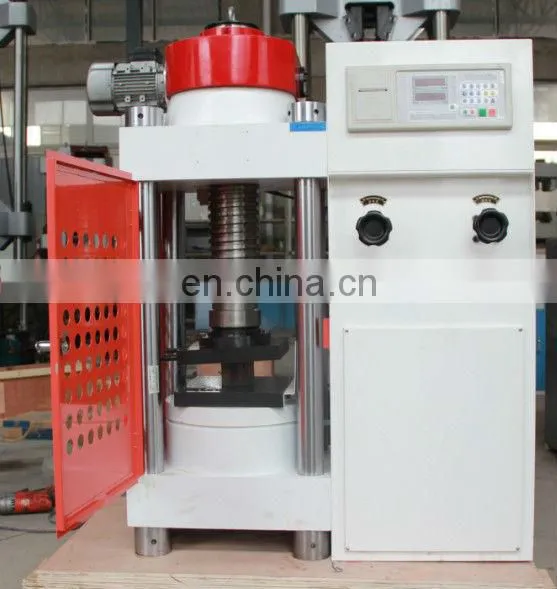

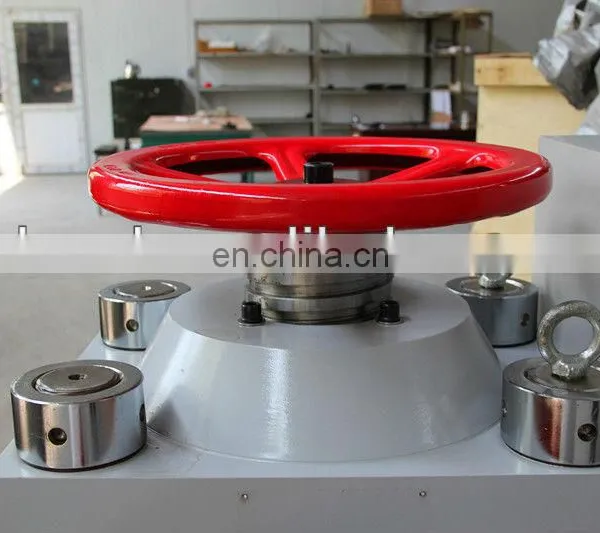

YES-100,200,300 Digital Compression Testing Machine
Contact me: Jessica Skype: jessica-hssd
1. Application
This Series machine adopts loading hydraulically with accurate and reliable test data. In order to guarantee the accuracy of test load readout, it adopts oil pressure transducer to measure the load, after amplifying, the test load, peak value and loading speed can be displayed digitally. The oil source is installed at the bottom of control cabinet in which there is a double-flow high-pressure piston pump driven by the motor. The hydraulic system is controlled manually with the functions of easy operation, safety and reliability. It is widely used for building material compression test.
- 2. Main Specifications
Model | YES-100 | YES-300 |
Max. Load | 100kN | 300kN |
Range of test force | 4% ~100%FS | 4% ~100%FS |
Load display accuracy | ±1% | ±1% |
Piston stroke | 120mm | 120mm |
Max piston speed | 50mm/min | 50mm/min |
Max compression space | 210mm | 210mm |
Distance between upper and lower platen | 340mm | 340mm |
Distance between upper and lower platen | 340mm | 340mm |
Working table size | φ160mm | φ160mm |
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
