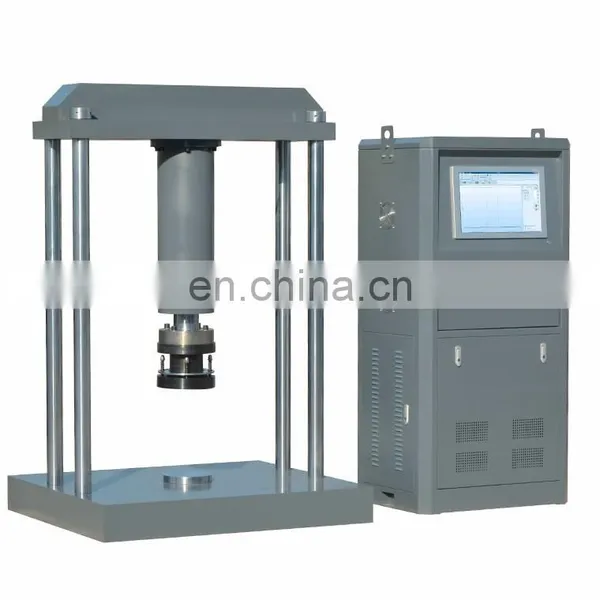

Digital Display Manhole Cover Compression Testing Machine
Main Function & Characteristics:
1.Using hydraulic loading, electronics measurement force, digital display testing force, load peak, test speed, automatic data processing;
2. Using oil inlet and outlet valves to control hydraulic system, easy to operate. It has attractive appearance and proper height of operation and indicating parts, easy for customers to operate;
3. Equipped with miniprinter, it can print test results. It can make compression tests for various well shutters and other materials;
4. Its main machine uses double columns structure and upper oil cylinder. It has a large working table with dimension of 1200*1400mm, easy to install wellshutter, with good stability;
5. With protections functions of overload, over-current, overvoltage, over-speed, etc.
6. Its reserved interface is used for networking interconnection or computer connection to upgrade of the machine.
Main technical specifications:
1. Max. Test force: 1000KN;
2. Measuring range of test force: 1%-100%F. S;
3. Accuracy of test force: Better than ± 1%;
4. Adjusting range of test speed: 0.5-10KN/S;
5. Measuring range of deformation: 0~10mm;
6. Resolution of deformation measurement: 0.01mm;
7. Max. Stroke of piston: 200mm;
8. Compression space: 0~350mm;
9. Dim. Of upper pressure head: Φ 250mm;
10. Dim. Of rigid adjusting shim: Φ 250x40mm; Φ 75x40mm; 250 x 250 x 150mm; 250 x 250 x 75mm;
11. Dim. Of working table: 1200 x 1400mm;
12. Dim. Of main machine (L*W*H): 1800 x 1200 x 2200mm; Dim. Of oil source control cabinet(L*W*H): 570 x 480 x 1230mm;
13. Power supply: 380V± 50Hz; 2.2KW;
14. Weight: About 4000kg.
