HCT -100 Servo Control Concrete Tube Testing Equipment
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
1.Application:

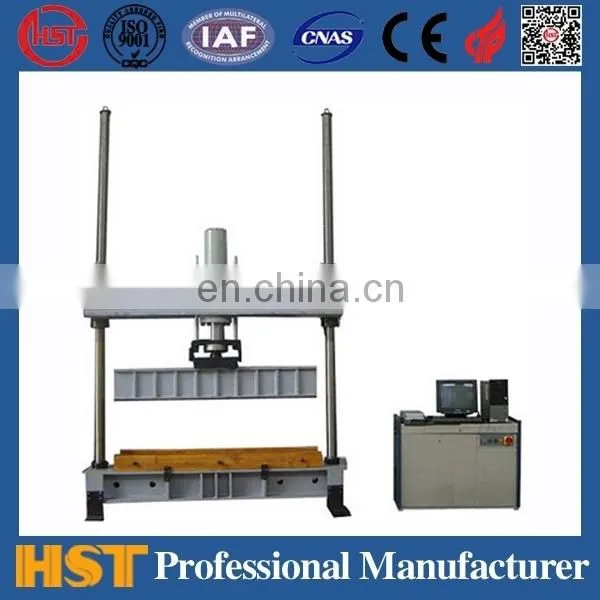

Factory direct supply: HCT -100 Servo Control Concrete Pipe Compression Testing Machine is designed for the radial compression test of drainpipe and other cement pipes which is in accordance with 'Test Method of Concrete and Ferroconcrete Drainpipe'. It is also suitable for the compression test of other metallic and non-metallic pipes. It consists of load frame, oil source, computer and servo unit.
2.Load frame:

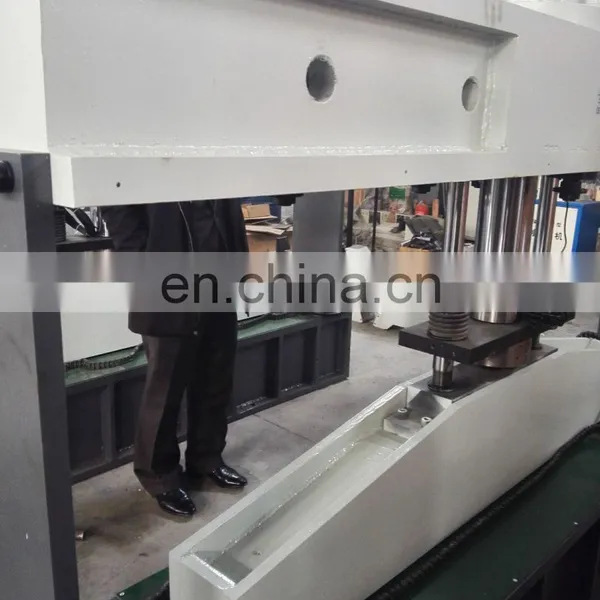

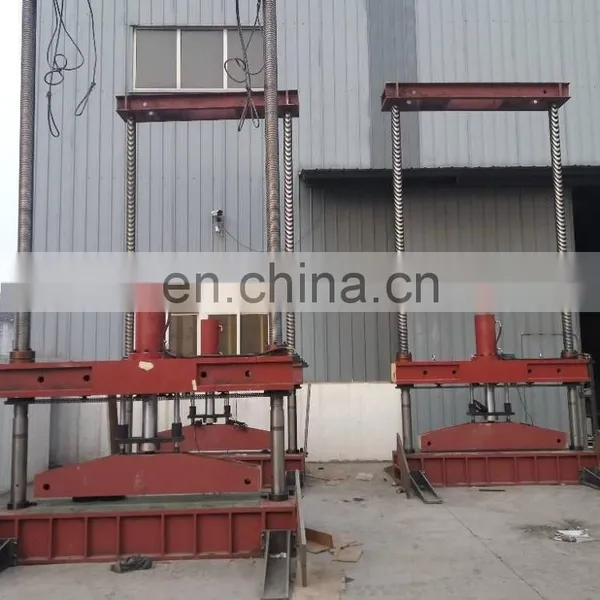

The load frame has dual columns with top actuator.
The base of the load frame is made of steel plate and
it is convenient to take in and off the specimen (drainpipe and other concrete pipe). The oil power source has constant servo with flow 4.1L/min, 26Mpa. The servo valve is Bosch/Moog or Atos. Load is measured by load cell. The deformation can be measured through two digital dial indicators
3.Specification:
No |
Item |
HCT-100 |
HCT-200 |
HCT-500 |
HCT-600 |
HCT-700 |
1 |
Max. Load (kN) |
100 |
200 |
500 |
600 |
700 |
2 |
Measuring range (kN) |
2-100 |
4-200 |
10-500 |
12-600 |
14-700 |
3 |
Load measuring method |
Load cell |
||||
4 |
Precision grade |
±1% |
||||
5 |
Test space (mm) |
1000 |
2000 |
|||
6 |
Upper platen size (mm) |
1000x100x120 (With rubber base plate of 25-30mm, Shore hardness is 45-60) |
2000x120x30, (With rubber base plate of 25-30mm, Shore hardness or 45-60mm) |
|||
7 |
Lower platen size (mm) |
1000x60x30 (With 2 wooden supporting beam, each dimension 110x60x80mm. The net space between two beams is 1/12 of the diameter of pipe) |
2000x(130-300)x150 (With 2 wooden supporting beam, each dimension 1100x60x80mm. The net space between two beams is 1/12 of the diameter of pipe) |
|||
8 |
Compression platens for concrete (mm) |
Ø230 |
Ø230 |
|||
9 |
Piston stroke (mm) |
200 |
200 |
|||
10 |
Space between two columns (mm) |
1200 |
2200 |
|||
11 |
Load speed (mm/min) |
0.5-100 |
≥50 |
|||
12 |
Power |
3 phases, 380V, 50Hz |
||||
13 |
Dimensions (mm) |
1400x350x1950 |
2700x800x4300 |
|||
14 |
Weight (kg) |
Approx. 1800 |
Approx. 4500 |
|||
YES-2000 YAW-2000D YES-300 YAW-300D
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
