Home > Products > Compression Testing Machine > YES-3000ED 300ton 3000kN Hydraulic Compression Test Machine

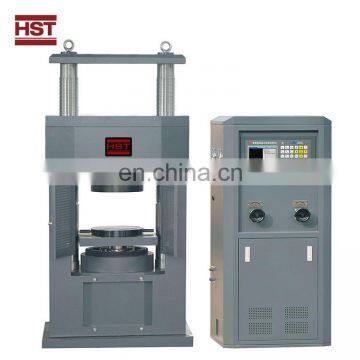

YES-3000ED 300ton 3000kN Hydraulic Compression Test Machine
- 200 Set / Sets per Month
- QINGDAO
- T/T Credit Card
Product Details
Brand Name: | HST | Place of Origin: | Shandong, China | Model Number: | YES-3000ED |
Power: | Hydraulic |
Product Description
YES-3000ED 300ton 3000kN Hydraulic Compression Test Machine
Skype:hstbetty009
Ali: cn1510988092
Mobile/Whatsapp/wechat: +86-15866781190
3000kN Hydraulic Compression Test Machine YES-3000DE
1. Application
Digital display concrete compression testing machine mainly used for concrete and other material
compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Main Specifications
Model | YES-1000ED | YES-2000ED | YES-3000ED |
Max. load | 1000KN | 2000kN | 3000kN |
Class | 1 class | 1 class | 1 class |
Testing space regulating way | Electric ball screw adjust | ||
Control way | Manual control load way | ||
Oil source control cabinet structure form | One-piece bench oil source control cabinet | ||
Range of test force | 100kn-1000kn | 200kn-2000kn | 300kn-3000kn |
Indicating value accuracy | ±1% | ||
Piston stroke | 100mm | 100mm | 150mm |
Max piston speed | 20mm/min | 20mm/min | 20mm/min |
Distance between columns | 400mm | 400mm | 480mm |
Distance between plates | 320mm | 320mm | 340mm |
Upper Pressure plate size | Φ250mm | Φ250mm | Φ320mm |
Lower pressure plate size | 260*280mm | 260*280mm | 320*330mm |
Test force loading speed | 0.02%-2%FS/s | ||
Display | LCD | ||
Power supply | 2.1Kw/AC380V |
