300KW to 10MW Megawatt Horizontal Vertical Francis Hydro Hydraulic Turbine Mixed Flow Hydro Turbine Reaction Turbine Water Hydroelectric Turbine Generator Unit Hydro Power Plant Station Generation Shpp Shepp Project ISO9001 GB IEC

Hydro turbine& hydro generator, hydro turbine generator, water turbine& hydro generator, hydraulic turbine

Hydropower turbine, hydroelectric power turbine, water power turbine

Including small/micro/mini hydro turbine

Generally, hydro turbine includes following kinds:

1. Reaction turbine:

1.1 Francis turbine/mixed-flow turbine

1.2 Axial turbine

1.3 Tubular turbine/through flow turbine

1.4 Diagonal turbine: Deriaz turbine, fixed blade of Deriaz turbine

2. Impulse turbine/action turbine:

2.1 Pelton turbine/scoop turbine

2.2 Inclined jet turbine/angular impulse turbine/Turgo impulse turbine

2.3 Cross-flow turbine

3. Pumped Storage Hydroelectric Generating Sets

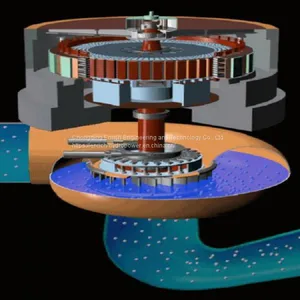

Francis turbine/mixed-flow turbine

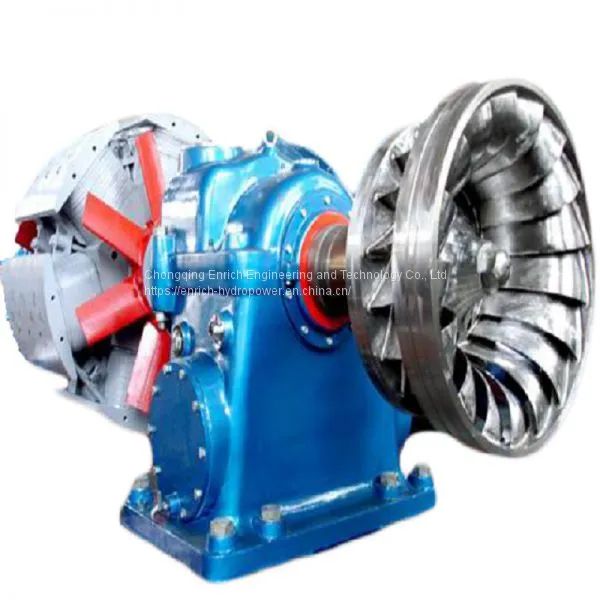

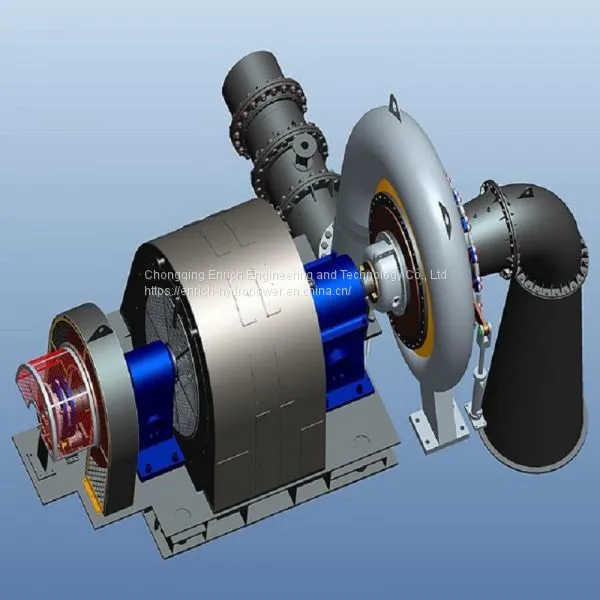

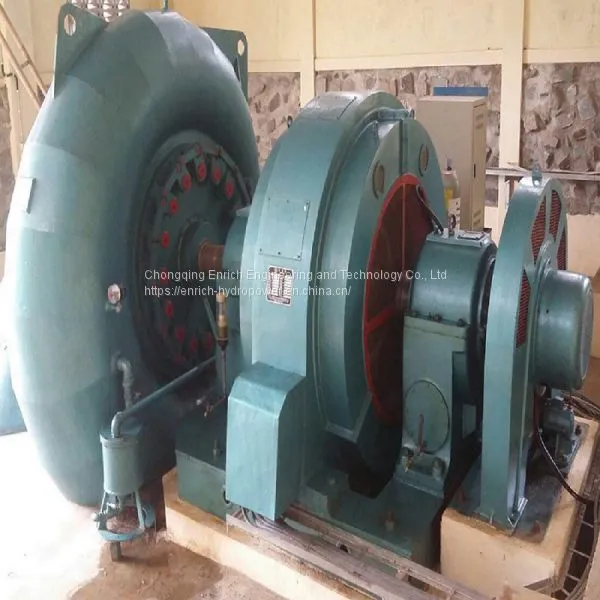

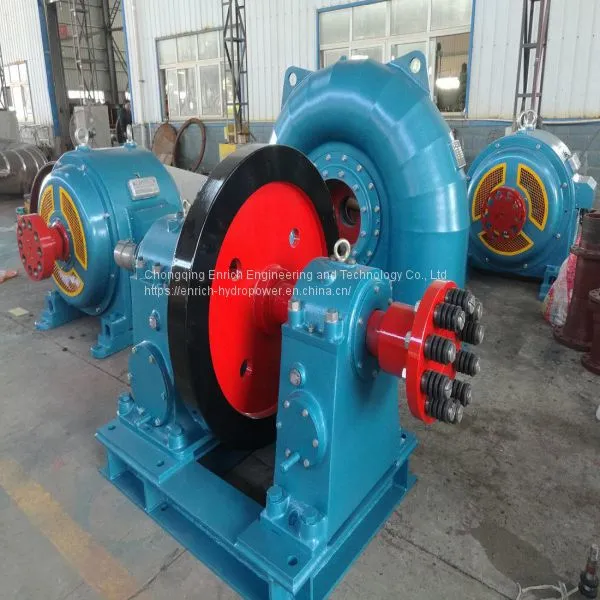

Horizontal Francis Turbine& Vertical Francis Turbine

Francis turbines/mixed-flow turbines are widely used in high, medium and low water heads, ranging from 20m to 400m, with capacities ranging from dozens of KW to several hundred thousand of KW, making them the most widely used models. Horizontal Francis turbines/ mixed-flow turbines usually used in small capacity, and vertical ones in medium and large capacity.

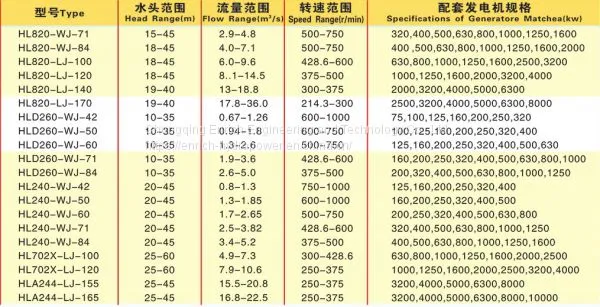

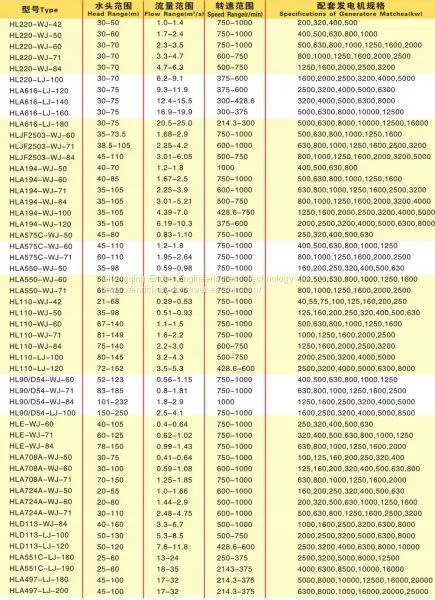

HL,HLA,HLD,HLAD,HLJF,HLB,HLX,HLP,HLVF,

HL220-WJ-50, HLA855-LJ-310,HLD294-LJ-340, HLD46-WJ-60, HLAD294-LJ-290,HLJF3017-LJ-310, HLB93-LJ-163, HLX75C-LJ-230, HLP045-LJ-240, HLVF-IRS-LJ-128…

TURBINE TYPE

e.g. HLD294-LJ-340

      HL—Francis turbine (ZZ for Kaplan; ZD for axial-flow type with fixed blades; GZ for bulb type; CJ for Pelton                 type);

      D294—Runner code;

      LJ – Vertical, metal spiral case (WJ for horizontal, metal spiral case; LH for vertical concrete spiral case; WP                  for horizontal bulb type; WZ for horizontal, shaft-extension tubular type);

      340 – Runner diameter, in centimeters;

GENERATOR TYPE

e.g. SF90-28/6800

       SF— Vertical hydro-generator (SFW for horizontal hydro-generator; SFWG for horizontal bulb type hydro-                     generator);

       90— Rated generator output, in MW or KW;

       28— Number of poles;

       6800— Outer diameter of stator core, in millimeters.

power factor, rated capacity, excitation voltage, excitation current, insulation class, runaway speed, wiring, runner/turbine wheel, water head, conical draft tube, bent draft tube, fly wheel, dumped water ring, anti-cavitation, runner blade, coated runner, casting/forging runner/turbine wheel, runner hub
