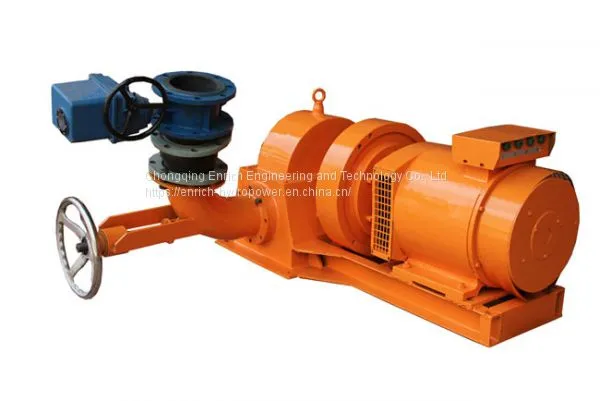

Mini Micro Small Horizontal Hydroelectric Hydro Power Permanent Magnet Generator Alternator Water Impulse Pelton Scoop Turbine Generator for Small Hydroelectric Power Plant
US$ 500 - 12800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Enrich
Place of Origin:
China
Model Number:
CJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
Mini Turgo Impulse Wheel Micro Hydro Water Turbine Generator Water Pipe Turbine Inclined Jet Water Turbine Generator Set Angular Impulse Turbine Permanent Magnet Generator Alternator Dual Double Nozzle for Hydro Power GeneratorUS$ 1000 - 50000MOQ: 1 Set -
Mini Micro Small Low Water Head Hydro Water Shaft-Extension Tubular S-Type Through Flow Hydroelectric Water Powered Turbine Electric Brushless Permanent Magnet Generator Alternator Sets GD Pipe Inpipe Hydro Power ProjectUS$ 800 - 8000MOQ: 1 Set
-
Mini Small Low Water Head Vertical Pressure Volute Axial Coaxial Flow Micro Hydro Water Power Permanent Magnet Kaplan Turbine Generator Alternator Set System With Belt Drive Hydroelectric Generator Running on Water Power StationUS$ 300 - 5880MOQ: 1 Set
-
0.6KW to 5KW Mini Small Micro Alternative Dual Wheel Impact Type Hydroelectric Hydro Hydraulic Power Water Turgo Inclined Jet Turbine Angular Impulse Turbine Generator Pico Turbine Permanent Magnet Excitation Generator For Homes Farm UseUS$ 300 - 1600MOQ: 1 Set
-
Mini Hydroelectric Power Micro Water Hydro Axial Flow Kaplan Propeller Turbine Thoma Turbine Electric Excitation Synchronous Permanent Magnet Brushless Generator Alternator Pico Turbine Generator for HomesUS$ 300 - 1600MOQ: 1 Set
Brand Name
Enrich
Place of Origin
China
Model Number
CJ
Type
Generator
Output Voltage (V)
400
Electricity Generator Type
Hydro Power
Pelton turbine generator unit / Scoop turbine generator unit
Main technical parameters
Model |
Power KW |
Water head m |
Rated flow m3/s |
Speed r/min |
Pipe diameter mm |
CJ22-W-30/1x4.5 |
20 |
60 |
0.06 |
1000 |
200-250 |
CJ22-W-35/1x4.8 |
30 |
70 |
0.065 |
1000 |
200-250 |
CJ22-W-35/1x4.8 |
40 |
80 |
0.07 |
1000 |
200-250 |
CJ22-W-35/1x4.8 |
50 |
90 |
0.08 |
1000 |
200-250 |
CJ22-W-40/1x5.5 |
75 |
100 |
0.1 |
1000 |
200-250 |
CJ22-W-45/1x5.5 |
100 |
125 |
0.113 |
1000 |
250-300 |
CJ22-W-50/1x5.5 |
160 |
170 |
0.13 |
1000 |
250-300 |
CJ22-W-55/1x6 |
200 |
180 |
0.163 |
1000 |
250-300 |
CJ22-W-55/1x7 |
250 |
170 |
0.213 |
1000 |
250-300 |
