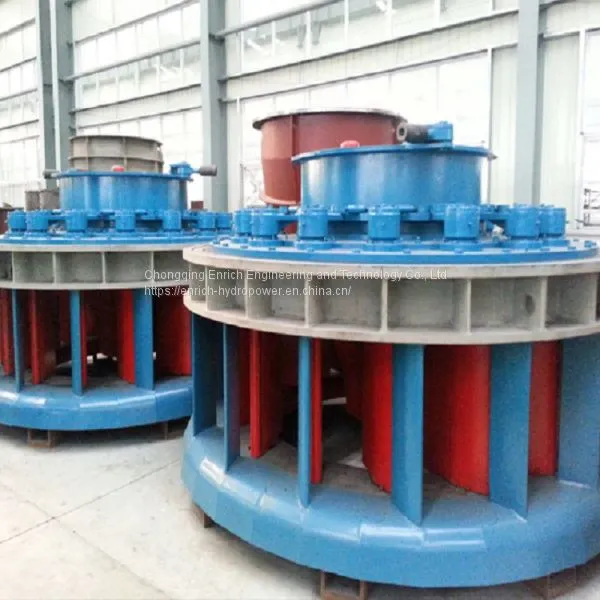

Help CenterRpm Vertical Adjustable Blade Axial Flow Hydro Water Hydraulic Turbine Kaplan Propeller Turbine With Movable Fixed Blades Thoma Turbine Electric Generator Unit for Axial Hydroelectric Hydro Power Generation Generator Plant
Related Products
-
Hydro Water Hydraulic Turbine Generator Kaplan Francis Pelton Impulse and Injection Turbine Stainless Steel Wheel Runner Crown Replacement Change Maintenance Refurbishment Forging Forged Casting Turning CNC Machining EPC ProjectUS$ 600 - 20000MOQ: 1 Set -
5kw to 200kw Mini Small Micro Hydro Water Turbine Power Generator Francis Turbine For Hydro Hydroelectric Power Project Shpp SheppUS$ 500 - 7600MOQ: 1 Set
-
Mini Micro Small Horizontal Hydroelectric Hydro Power Permanent Magnet Generator Alternator Water Impulse Pelton Scoop Turbine Generator for Small Hydroelectric Power PlantUS$ 500 - 12800MOQ: 1 Set
-
Mini Turgo Impulse Wheel Micro Hydro Water Turbine Generator Water Pipe Turbine Inclined Jet Water Turbine Generator Set Angular Impulse Turbine Permanent Magnet Generator Alternator Dual Double Nozzle for Hydro Power GeneratorUS$ 1000 - 50000MOQ: 1 Set
-
Mini Micro Small Low Water Head Hydro Water Shaft-Extension Tubular S-Type Through Flow Hydroelectric Water Powered Turbine Electric Brushless Permanent Magnet Generator Alternator Sets GD Pipe Inpipe Hydro Power ProjectUS$ 800 - 8000MOQ: 1 Set
Axial turbine
Including micro/small/mini turbines
Axial turbine is suitable for low head 2-70m. Propeller turbine with fixed blades is used for small variation of head and power, Kaplan turbine with movable blades is for large variation of head and power.
Generally, Axial turbine includes following kinds:
1. Propeller turbine with fixed blades
2. Kaplan turbine with movable blades/axial-flow adjustable blade propeller turbine/double- adjusted
3. Thoma turbine

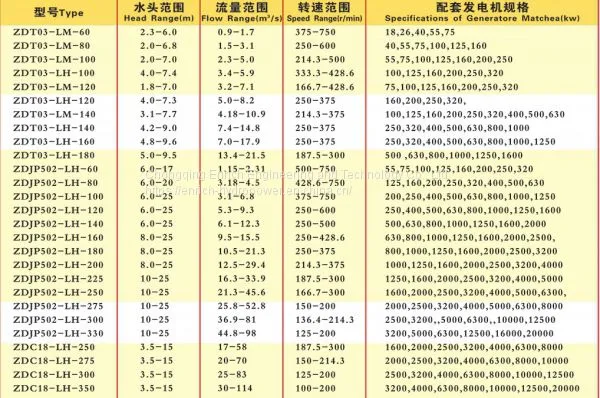

ZD ,ZDD , ZDJP, ZDB ,ZDJK,ZZ,ZZD,ZZJK,ZZA,ZZK,ZTB, ZDD471-LH-330, ZDJP502-LH-298, ZDB501-LJ-210, ZDJK508-LH-295, ZZD505A-LH-450, ZZJK508-LH-540, ZZA834-LH-410, ZZK400-LH-410, ZTB501-LH-178…
LJ, WJ, LH, LMY, WP, WZ
Turbine Type
e.g. HLD294-LJ-340
HL—Francis turbine (ZZ for Kaplan; ZD for axial-flow type with fixed blades; GZ for bulb type; CJ for Pelton type);
D294—Runner code;
LJ – Vertical, metal spiral case (WJ for horizontal, metal spiral case; LH for vertical concrete spiral case; WP for horizontal bulb type; WZ for horizontal, shaft-extension tubular type);
340 – Runner diameter, in centimeters;
