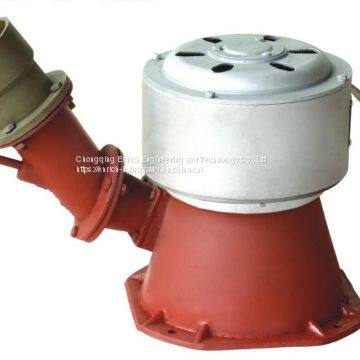

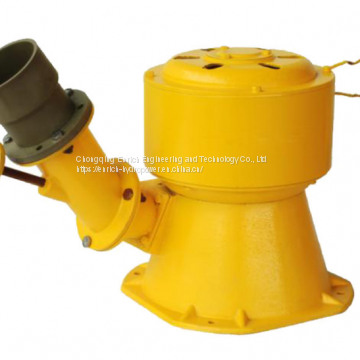

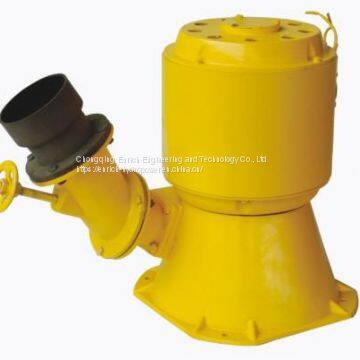

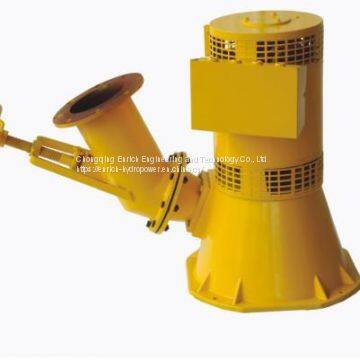

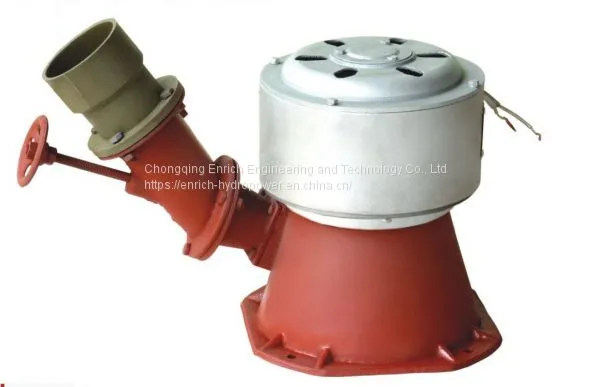

0.6KW to 5KW Mini Small Micro Alternative Dual Wheel Impact Type Hydroelectric Hydro Hydraulic Power Water Turgo Inclined Jet Turbine Angular Impulse Turbine Generator Pico Turbine Permanent Magnet Excitation Generator For Homes Farm Use
US$ 300 - 1600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Enrich
Place of Origin:
China
Model Number:
XJ13-L
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
Mini Hydroelectric Power Micro Water Hydro Axial Flow Kaplan Propeller Turbine Thoma Turbine Electric Excitation Synchronous Permanent Magnet Brushless Generator Alternator Pico Turbine Generator for HomesUS$ 300 - 1600MOQ: 1 Set -
Mini Micro Small Hydro Water Shaft-Extension Tubular S-Type Through Flow Hydroelectric Water Powered Propeller Turbine Electric Brushless Permanent Magnet Generator Alternator Sets for Home UseUS$ 300 - 1600MOQ: 1 Set
-
0.6-3KW Mini Small Dual Wheel Impact Type Hydro Pelton Scoop Impulse Hydraulic Water Turbine Permanent Magnet Electric Brushless Generator Alternator Hidraulicas Turbina Pelton for Home Factory UseUS$ 300 - 500MOQ: 1 Set
-
High Voltage HV Outdoor Switchyard Switching Point Switching Station Substation Hydroelectric Power Station Hydro Electric Power Plant HPP HEPP SHPP SHEPP Solar Power PlantUS$ 10000 - 100000MOQ: 1 Set
-
Hydropower Hydroelectric Power Plant Automation Control System Protection and Monitoring System Relay Protection Cabinet Cubicle HPP HEPP SHPP SHEPPUS$ 10000 - 100000MOQ: 1 Set
Brand Name
Enrich
Place of Origin
China
Model Number
XJ13-L
Type
Generator
Output Voltage (V)
220
Electricity Generator Type
Hydro Power
Pico turbine generator for home use
Inclined jet turbine generator
Main components
No. |
Name |
Function |
1 |
Water turbine |
|
2 |
Generator |
|
3 |
Pipe |
Connecting to water supply |
4 |
Voltage controller |
Stable voltage |
5 |
Frame |
Fix the unit |
6 |
Air switch |
Circuit protection |
Main technical parameters
Model |
Power KW |
Water head m |
Flow m3/s |
Pipe diameter mm |
Size cm |
Weight Kg |
Note |
XJ13-L-10/1x2 |
0.6 |
9-18 |
0.008-0.01 |
75 |
44x34x38 |
30 |
Permanent magnet |
XJ13-L-12/1x2.8 |
1 |
10-25 |
0.008-0.01 |
75 |
45x34x38 |
42 |
|
XJ13-L-12/1x2.8 |
1.5 |
12-28 |
0.008-0.05 |
75 |
45x35x43 |
43 |
|
XJ13-L-13/1x2.8 |
2 |
15-30 |
0.01-0.015 |
110 |
45x38x43 |
55 |
|
XJ13-L-13/1x3 |
3 |
18-40 |
0.015-0.02 |
110 |
47x40x50 |
60 |
|
XJ13-L-18/1x5 |
5 |
20-40 |
0.015-0.025 |
160 |
65x49x78 |
180 |
Excitation |
XJ13-L-18/1x5 |
5 |
30-35 |
0.015-0.025 |
160 |
65x49x78 |
180 |
|
XJ13-L-18/1x5 |
5 |
20-25 |
0.015-0.025 |
160 |
65x49x78 |
180 |
