Hydro turbine& hydro generator, hydro turbine generator, water turbine& hydro generator
Hydraulic turbine, hydropower turbine, hydroelectric power turbine, water power turbine
Including micro/small/mini turbines
1.Reaction turbine
1.1 Francis turbine/mixed-flow turbine
1.2 Axial turbine
1.3 Tubular turbine/through flow turbine
1.4 Diagonal turbine:Deriaz turbine,fixed blade of Deriaz turbine
2. Impulse turbine/action turbine
2.1 Pelton turbine/scoop turbine
2.2 Inclined jet turbine/angular impulse turbine/Turgo impulse turbine
2.3 Cross-flow turbine
3. Pumped Storage Hydroelectric Generating Sets

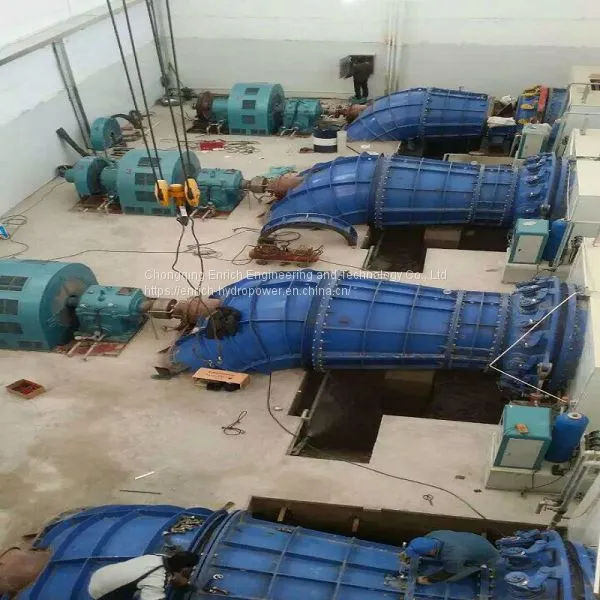

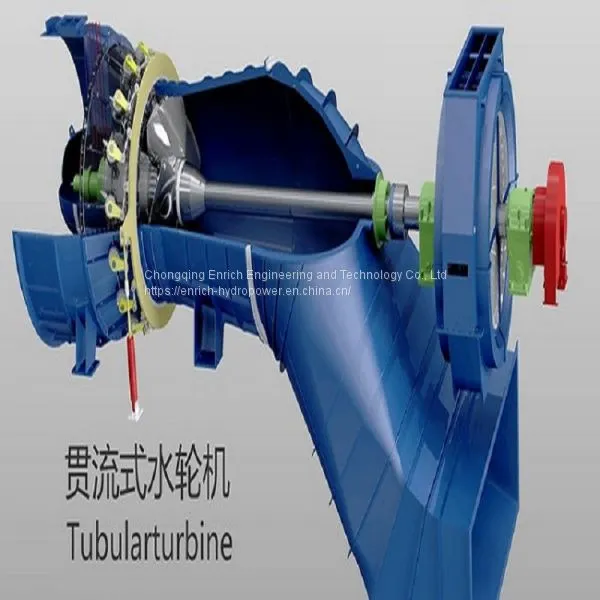

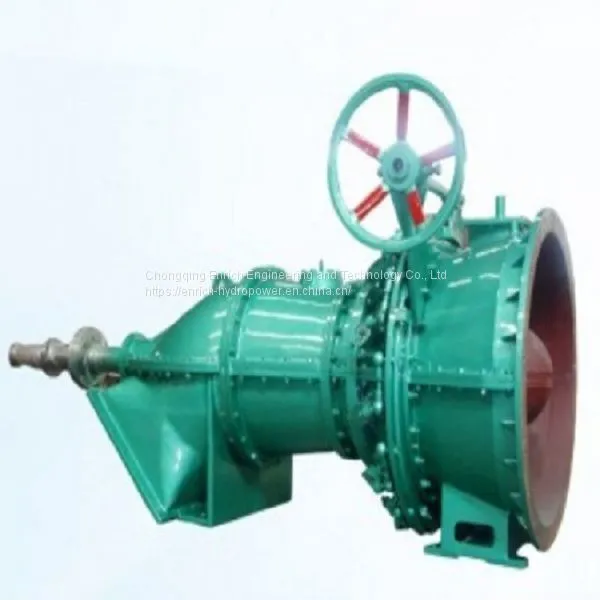

Tubular turbine/through flow turbine
Tubular turbine is suitable for low water head and large discharge, the using head can be 2 to 25m.

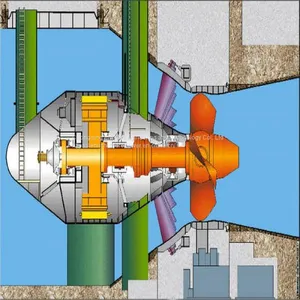

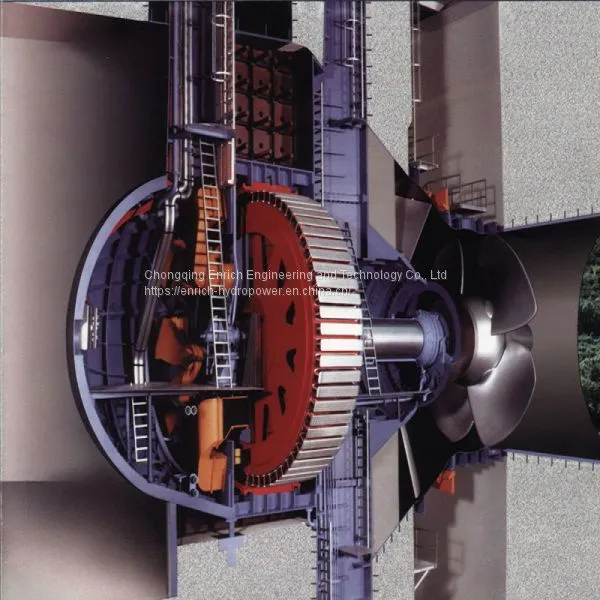

1. bulb turbine
2. pit turbine
3. straight flow turbine/rim-generator unit
4. tubular turbine(S-type turbine)/shaft-extension tubular turbine
GZ,GZB,GZD,GZA, GD,
GZ995-WP-520,GZB845-WP-670, GZD390-WP-460, GZA818-WP-455, GD006-WZ-205…
LJ, WJ, LH, LMY, WP, WZ
Turbine Type
e.g. HLD294-LJ-340
HL—Francis turbine (ZZ for Kaplan; ZD for axial-flow type with fixed blades; GZ for bulb type; CJ for Pelton type);
D294—Runner code;
LJ – Vertical, metal spiral case (WJ for horizontal, metal spiral case; LH for vertical concrete spiral case; WP for horizontal bulb type; WZ for horizontal, shaft-extension tubular type);
340 – Runner diameter, in centimeters;
Generator Type
e.g. SF90-28/6800
SF— Vertical hydro-generator (SFW for horizontal hydro-generator; SFWG for horizontal bulb type hydro- generator);
90— Rated generator output, in MW or KW;
28— Number of poles;
6800— Outer diameter of stator core, in millimeters.
power factor, rated capacity, excitation voltage, excitation current, insulation class, runaway speed, wiring, runner/turbine wheel, water head,conical draft tube, bent draft tube, fly wheel, dumped water ring, anti-cavitation, runner blade, coated runner, casting/forging runner/turbine wheel, runner hub
