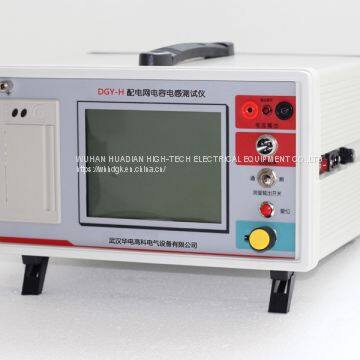

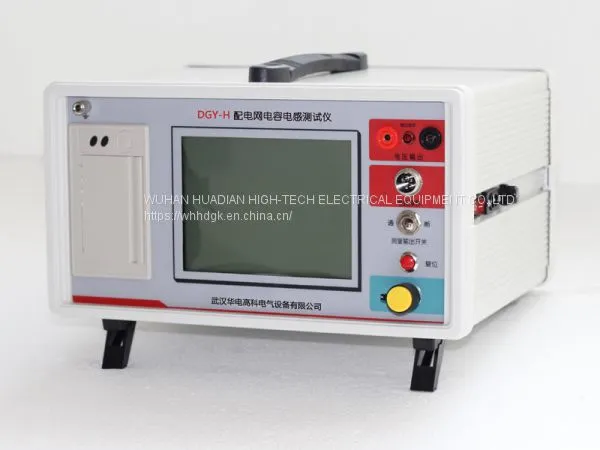

Capacitance And Inductance Tester

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 99 Set / Sets per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

WUHAN HUADIAN HIGH-TECH

Model Number

DGY-H

Product Description

Capacitance And Inductance Tester

Brief introduction

DGY-H Capacitance and inductance test is developed under the direction of reactive power compensation experts, against the problem of field measurement for capacitance value of substation capacitor.

Product features

◆Automatically converse the measuring range.

◆Can store 7168 test data.

◆Large-screen LCD (320x240)display, Chinese menu prompting operation.

◆Achieve the waveform and measurement data display with the same screen to make the testing process more intuitive.

◆With functions of setting, calibration and debugging.

Product parameters

Capacity Measuring Range	0.2µF~2000µF
Capacity Range	5~20000kVAR
Measurement Accuracy	0.2µF~2µF±1% reading±0.02µF
Measurement Accuracy	0.2µF~2000µF±1% reading±2 letters
Inductance Measuring Range	1mH~9.99H
Measurement Accuracy	±1.5% reading±2 letters
Output Test Voltage	AC 26V/500VA; 50Hz
Display Mode	Large liquid crystal display full Chinese character output
Dimension/Weight	370x370x220mm/16kg
Working Condition	Ambiemt temperature: 0℃~+40℃, relative humidity: ≤90%
Working Condition	Power supply: AC220V±10%; 50Hz
