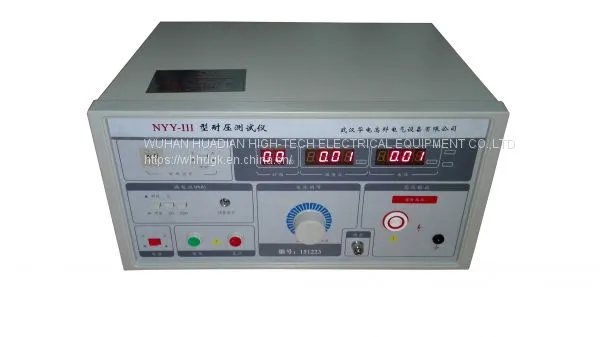

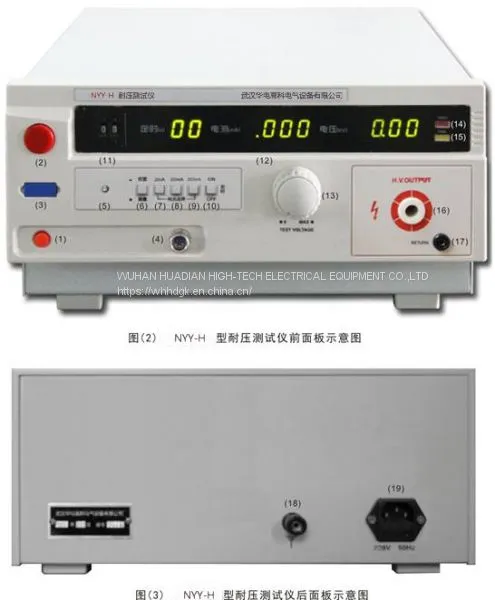

Low Voltage Withstand Voltage Tester
Brief introduction
NNY-III Series withstand voltage tester is researched and developed by our company adopting advanced manufacturing technology, according to the national latest “CCC” test standard with many years of test equipment manufacturing experience. It has features of convenient using, safe and reliable, precision test ect. It is the necessary test equipment of high voltage and low voltage switch, insulating material facories.
Product features
◆Voltage, current reading is clear and intuitive.
◆Convenient and reliable using.
◆Zero position starting up, overcurrent protection.
◆Can arbitrarily set the withstand voltage time, alarm automatically on the set time.
Equipment classification
Model |
Output Voltage |
Output Current |
Current Precision |
Measurement Model |
NNY-I |
0~5kV |
0~600mA |
1.0% |
Manual |
NNY-II |
0~5kV |
0~20~100mA |
0.5% |
|
NNY-II+ |
0~5kV |
0~100mA |
0.5% |
Auto |
NNY-III |
0~5~10kV |
0~100mA |
0.5% |
Product parameter
Output Voltage |
220V±10V |
Leakage Current |
0~600mA |
Power Supply Frequency |
50Hz |
Output Voltage |
0~10kV(adjustable) |
Capacity kVA |
0.2~10kVA |
Measurement Precision |
0.5% |
Note: customize according ti user’s requiements | |||
