AC Resonant Test System for Cables

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WUHAN HUADIAN HIGH-TECH		Place of Origin	China
Model Number	BPXZ-H

Product Description

AC Resonant Test System for Cables

Product Description

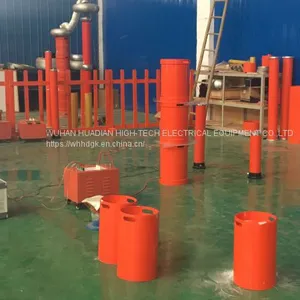

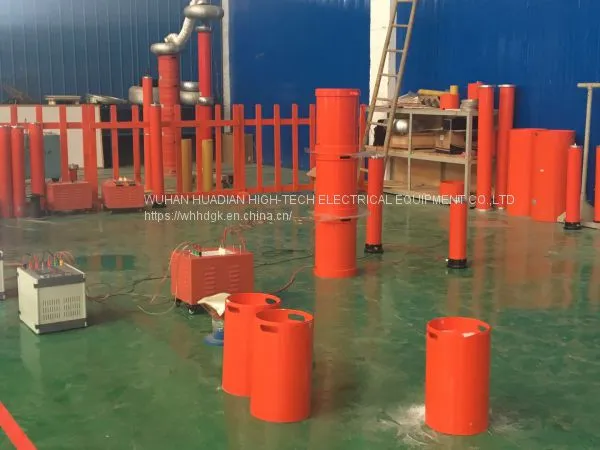

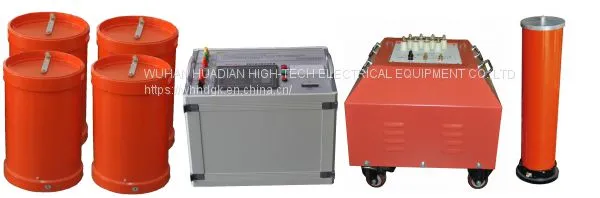

BPXZ Series AC Resonant Test System For Cables Are Composed Of Frequency/Voltage Adjustment Power,Exciting Transformers, Reactors, Capacitive Divider.The Power Frequency Can Be Adjustable,Which Make The Reactor And Tested Capacitor Resonance.

Features

· Small size, light weight, portable design.

· Suitable for 35kV or below cables.

· Single parts not more than 30kg, easy to carry.

· 220V or 380V single phase power supply,convenient for on-site power sourcing.

· Dry type epoxy cast for reactor,nice and reliable,suitable for various types of cables.

Specifications

· Rated output voltage: 0 - 66kV(effective value) or below.

· Output frequency: 20 -300Hz.

· Resonant voltage waveform: sine wave, THD ≤ 1%.

· Full load working time: continuous working time 60mins.

· Quality factor: max. load ≥ 20.

· Frequency adjustment: fineness 0.1Hz, instability ≤ 0.01%.

· Power supply: 220V or 380V single-phase.

Product Configuration

BPXZ-44/22
Input voltage (V)	380
Output voltage (kV)	0-22
Capacity (kVA)	44
Application scope	10kV cable ≤ 1km(300 mm² )
Main configurations	2.5kW Variable frequency source 1 se t
	2.5kVA Exciting transformer 1 set
	Reactors 22kV/1A 2 sets
	Capacitive divider 25 kV
BPXZ-88/22
Input voltage (V)	380
Output voltage (kV)	0-22
Capacity (kVA)	88
Application scope	10kV cable ≤ 2km(300 mm² )
Main configurations	4kW Variable frequency source 1 set
	4kVA Exciting transformer 1 set
	Reactors 22kV/2A 4sets
	Capacitive divider 25 kV
BPXZ-132/22
Input voltage (V)	380
Output voltage (kV)	0-60
Capacity (kVA)	132
Application scope	10kV (300 mm² ) cable 3km
Application scope	35kV (300 mm² ) cable 1km
Main configurations	6kW Variable frequency source 1 set
	6kVA Exciting transformer 1 set
	Reactors 22kV/2A 3 sets
	Capacitive divider 60kV
BPXZ- 176/22
Input voltage (V)	380
Output voltage (kV)	0-60
Capacity (kVA)	176
Application scope	10kV (300 mm² ) cable 4km
Application scope	35kV (300 mm² ) cable 1km
Main configurations	7.5 kW Variable frequency source 1 set
	7.5 kVA Exciting transformer 1 set
	Reactors 22kV/2A 4sets
	Capacitive divider 60kV
BPXZ-264/22
Input voltage (V)	380
Output voltage (kV)	0-60
Capacity (kVA)	264
Application scope	10kV (300 mm² ) cable 6km
Application scope	35kV (300 mm² ) cable 2km
Main configurations	10kW Variable frequency source 1 set
	10kVA Exciting transformer 1 set
	Reactor 22kV/2A 6 sets
	Capacitive divider 60kV
BPXZ-330/22
Input voltage (V)	380
Output voltage (kV)	0-60
Capacity (kVA)	330
Application scope	10kV (300 mm² ) cable 8 km
	35kV (300 mm² ) cable 2.5 km
	10-35kV switchgear, transformers
Main configurations	15kW Variable frequency source 1 set
	15kVA Exciting transformer 1 set
	Reactor 22kV/2.5A 6 sets
	Capacitive divider 60kV
BPXZ-640/32
Input voltage (V)	380
Output voltage (kV)	0-130
Capacity (kVA)	640
Application scope	10kV (300 mm² ) cable 10 km
	35kV (300 mm² ) cable 4 km
	110kV cable ≤ 1km(400 mm² )
	35-110kV GIS
Main configurations	25 kW Variable frequency source 1 set
	25 kVA Exciting transformer 1 set
	Reactor 32 kV/2.5A 8 sets
	Capacitive divider 130kV
BPXZ-1280/ 32
Input voltage (V)	380
Output voltage (kV)	0-130
Capacity (kVA)	1280
Application scope	10kV (300 mm² ) cable 20 km
	35kv (300 mm² ) cable 8km
	110kV cable ≤ 2km(400 mm ² )
	35- 110kV GIS
Main configurations	50kW Variable frequency source 1 set
	50kVA Exciting transformer 1 set
	Reactor 32kV/5A 8 sets
	Capacitive divider 130kV
BPXZ-1950/130
Input voltage (V)	380
Output voltage (kV)	0-520
Capacity (kVA)	1950
Application scope	110kV cable ≤ 2.5km
	220kv GIS
	110kV switchgear,transformers
Main configurations	100kW Variable frequency source 1 set
	100kVA Exciting transformer 1 set
	Reactor 130kV/3.75A 4sets
	Capacitive divider 520kV
BPXZ-3250/130
Input voltage (V)	380
Output voltage (kV)	0-520
Capacity (kVA)	3250
Application scope	110kV cable ≤ 5km
	110kV/220kV switchgear
	GIS,transformers
Main configurations	150kW Variable frequency source 1 set
	150kVA Exciting transformer 1 set
	Reactor 130kV/6.25A 4sets
	Capacitive divider 520kV
BPXZ-650 0/130
Input voltage (V)	380
Output voltage (kV)	0- 520
Capacity (kVA)	6500
Application scope	110kV cable ≤ 10km
	110kV/220kV switchgear
	GIS,transformers
Main configurations	300kW Variable frequency source 1 set
	300kVA Exciting transformer 1 set
	Reactor 130kV/ 12.5A 4sets
	Capacitive divider 520kV
