Brief introduction

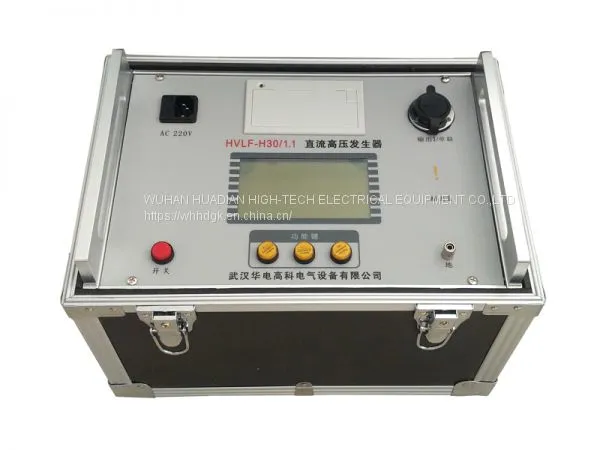

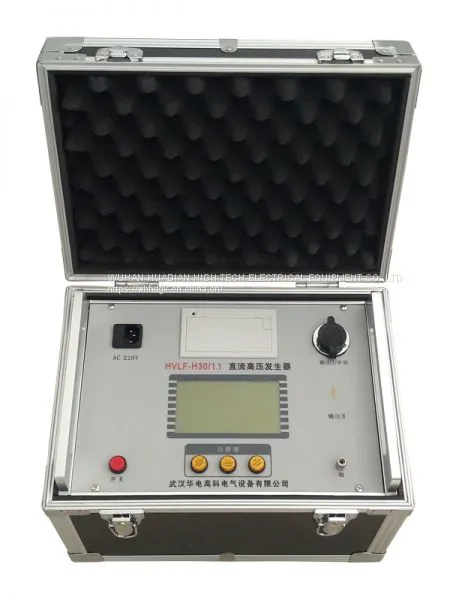

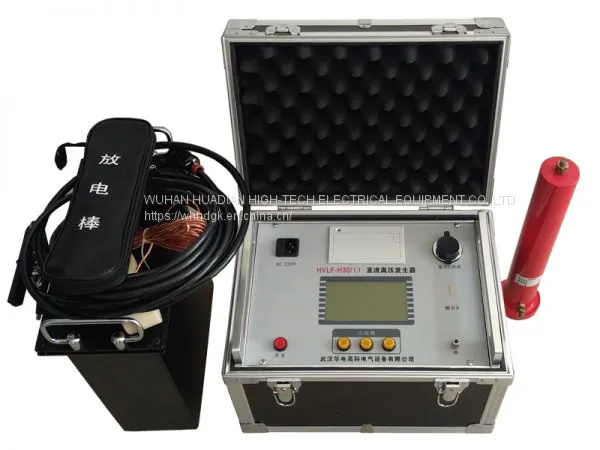

VLF-H series 0.1Hz programmable ultra-low frequency high voltage generator adopts modern advanced digital frequency technology, complete automation in microcomputer control, boost, buck, measurement, protection, manual intervention in the process of automatic voltage boosting. It is in small vollum, light weight, large screen liquid crystal display, clear and intuitive, output waveform displayed, and the printer output all reports. Parameters comply with >, convenient to use.
Product features
◆To get current, voltage, waveform through high voltage end, data is real and accurate.
◆Overvoltage protection: when output voltage exceeds the set voltage value, this equiment will stop to protection and action time less than 20 milliseconds.
◆Overcurrent protection: dual protection of high and low voltage, high voltage end can stop the equipment to protect according to the set value.
◆The equipment stop to protect if low voltage end current exceed the rated current. Action time less than 20 milliseconds.
◆High voltage output protection resistance is in boost body, do not need connect resistance outside the body.
◆As a result of the high and low voltage closed loop negative feedback control circuit, so the output without capacity rise effect.
Product parameters
Mode |
Rated Voltage |
Load Carrying Capacity |
Weight |
Application |
VLF-30/1.1 |
30kV(peak value) |
0.1Hz: ≤1.1%eF |
Controller: 4kg Boosting body: 25kg |
≤10kv cable, motor |
0.5Hz: ≤2.2%eF | ||||
0.2Hz: ≤5.5%eF | ||||
VLF-50/1.1 |
50kV(peak value) |
0.1Hz: ≤5%eF |
Controller: 5kg Boosting body: 60kg |
≤15.75kv cable, motor |
0.5Hz: ≤10%eF | ||||
0.2Hz: ≤25%eF | ||||
VLF-80/1.1 |
80kV(peak value) |
0.1Hz: ≤1.1%eF |
Controller: 5kg Boosting body: 45kg |
≤35kv cable, motor |
0.5Hz: ≤2.2%eF | ||||
0.2Hz: ≤5.5%eF |
