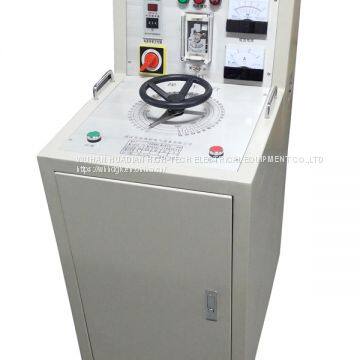

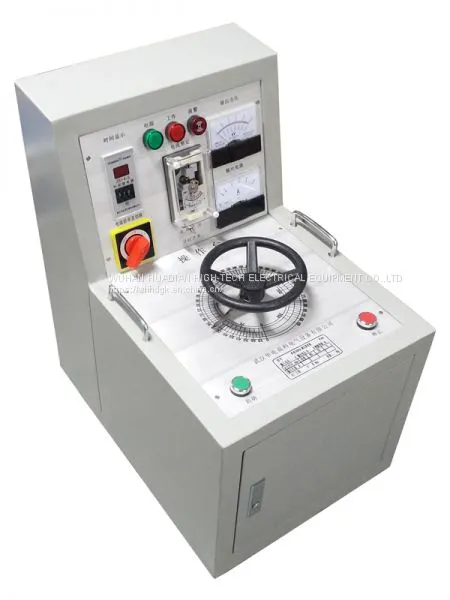

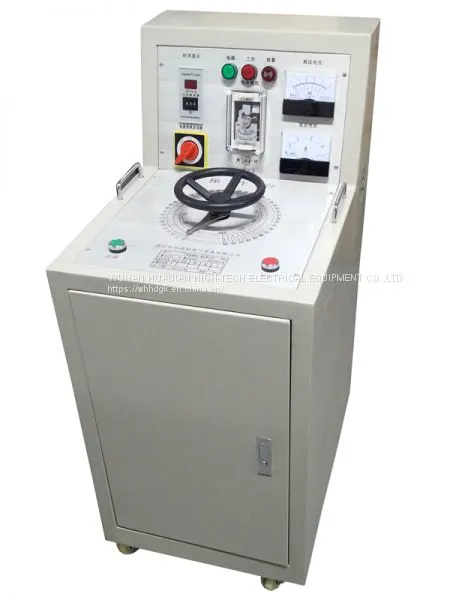

Help CenterManual/Auto Controlling Table
Related Products
-
Power Frequency Voltage Withstand Test DeviceNegotiableMOQ: 1 Set -
Programmable Ultra-Low Frequency High Voltage GeneratorNegotiableMOQ: 1 Set
-
Resistance-Capacitance Voltage DividerNegotiableMOQ: 1 Set
-
Capacitance Voltage DividerNegotiableMOQ: 1 Set
-
DC High Voltage GeneratorNegotiableMOQ: 1 Set
Brief introduction
HCT-Hseries manual/auto controlling table is the manual/auto boost type of power frequency withstand controlling boxes of our company. It with a number of monitoring and protection functions, specially match with light type test transformer and also can be used as ajustable power supply.
Product features
◆Monitoring function: output current/high voltage/zero indication/power indication/working indication/timing indication.
◆Protection function:over current protection and zero voltage start-up
◆Using new time relay, timing range is wider.
◆Using new current relay, more accuracy, more reliable, to ensure the safty of personal and equipment.
◆Reasonable structure,small vollume, light weight.
◆Date、voltage、current and time are simutaneously showed as 160 LCD with blue background light, read clear and intuitive.
◆According to the user needs can be equipped with printing function and RS232 mirocomputer communication function. Easy to operate.
◆All Chinese language interface, showing working state and easy to operate, widely applied.
◆The panel is light touching the key operate, all functions can be set through the key, improving the safty and reliability.
◆Digital tuning, Abandoned the old potentiometer adjustment method, easy to use in field.
◆Through key to directly set current and voltage ratio, applicated freely undder different ratio outputing.
◆Can freely achieve AC and DC two type showing throngh single key.
◆Adopted the combinated anti-interference technology of hardware and software, use optimized control mode of stepping motor, Speed fixed-point, stable performance, strong anti-interference ability.
◆Stop condition can be set easily when start uo time relay, setting range: 1-9999second.
◆Setting mode; light touch board the key and digital setup, the setting value keep permanently if power off.
Product parameters
|
Specification HZTC-101/102 |
Capacity kVA |
Power Supply |
Output |
HZTC-101/102 |
Weight |
Remark |
||||
phase |
(V) |
(A) |
(V) |
(A) |
||||||
10/220 |
10 |
1 |
220 |
23 |
0-250 |
40 |
Manual/Auto |
65 |
Overall structure |
|
15/380 |
15 |
2 |
380 |
39 |
0-430 |
35 |
Manual/Auto |
70 |
||
20/380 |
20 |
2 |
380 |
53 |
0-430 |
50 |
Manual/Auto |
80 |
||
25/380 |
25 |
2 |
380 |
66 |
0-430 |
47 |
Manual/Auto |
90 |
||
30/380 |
30 |
2 |
380 |
79 |
0-430 |
120 |
Manual/Auto |
100 |
||
50/380 |
50 |
2 |
380 |
132 |
0-430 |
116 |
Electric |
Auto/ Electric |
160 |
|
100/380 |
100 |
2 |
380 |
263 |
0-430 |
232 |
50 |
Split structure |
||
150/380 |
150 |
2 |
380 |
395 |
0-430 |
349 |
50 |
|||
200/380 |
200 |
2 |
380 |
526 |
0-430 |
465 |
50 |
|||
250/380 |
250 |
2 |
380 |
659 |
0-430 |
581 |
50 |
|||
300/380 |
300 |
2 |
380 |
789 |
0-430 |
698 |
50 |
|||
