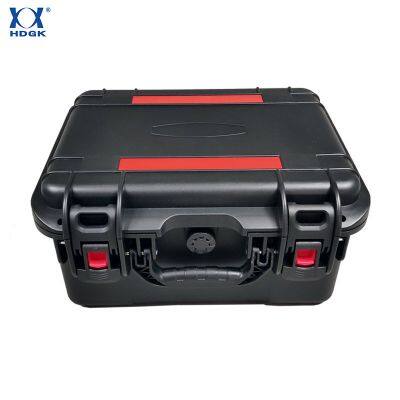

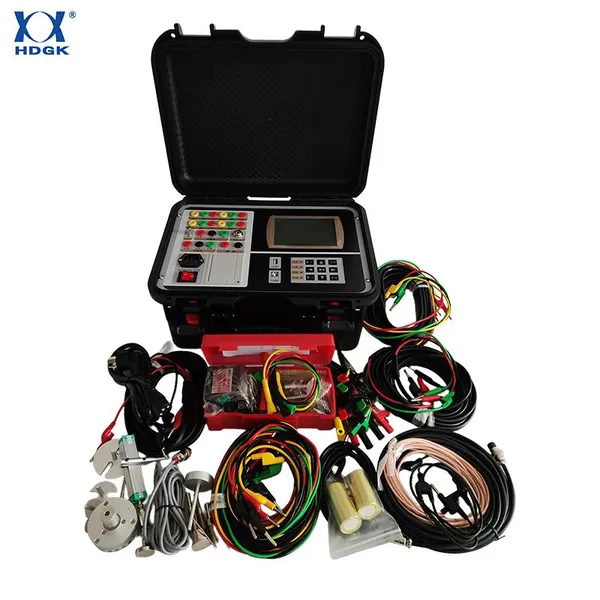

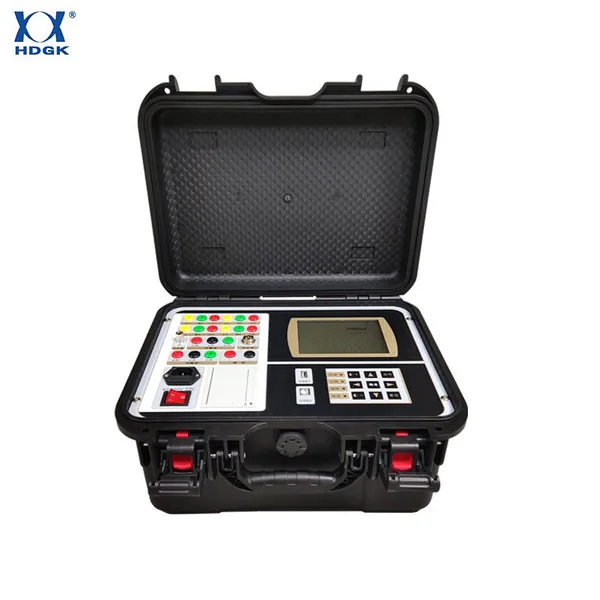

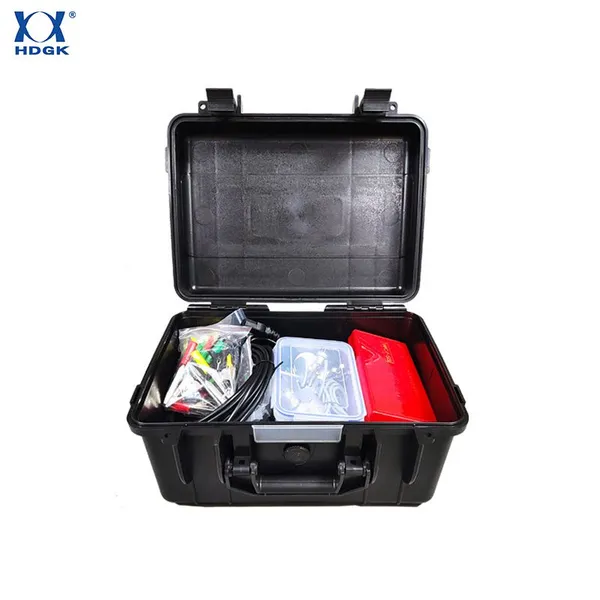

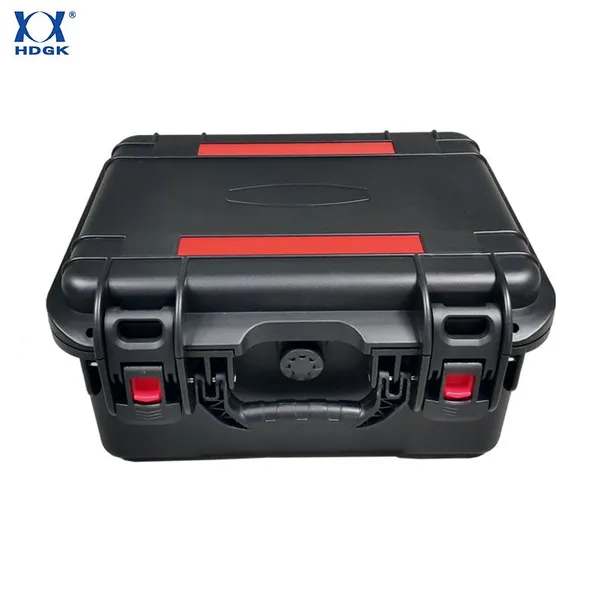

GKC-8001 Circuit Breaker Characteristic Tester
Features
·Waveform recording function
·Built-in anti-interference circuit
·Universal adjustable-angle rotating bracket
·PC-compatible upper-layer software
·Simultaneous measurement: 12 contact channels, 1 speed channel, 1 current channel
·Large-capacity storage (supports internal/external USB drives)
Overview
High-voltage circuit breakers are among the most critical control devices in power systems. Given their widespread deployment and complex operational requirements, their reliability directly impacts not only their own performance but also the stability of the entire grid. Traditional dynamic characteristic testing methods suffer from complex operation and low accuracy. To address these challenges, we developed the GDKC-6B High-Voltage Circuit Breaker Dynamic Characteristic Tester.
Technical Parameters:
Maximum speed |
20m/s,resolution：0.01m/s |
Measurement accuracy |
±1.0% reading ±0.05 |
Travel Measurement Range |
6mm～280mm（Extendable to 6～700mm upon request） |
Minimum Travel Resolution |
0.1mm，Distance Measurement Accuracy：±1.0% reading ±0.1mm |
Time Measurement Range |
10ms～15s |
Time Resolution |
0.1ms；Time Measurement Accuracy：±0.5% reading±0.2ms |
Minimum Action Synchronization Resolution |
0.1ms；Synchronization Measurement Accuracy：±0.5% reading±0.1ms |
Testing Channels (8 channels) |
6 channels for contact time measurement，1 channel for velocity，1 channel for coil current |
Operational Power Supply Output |
Voltage: Adjustable DC 30V-300V，Current: 20A，Digitally programmable control，Continuous operation duration: 3s |
