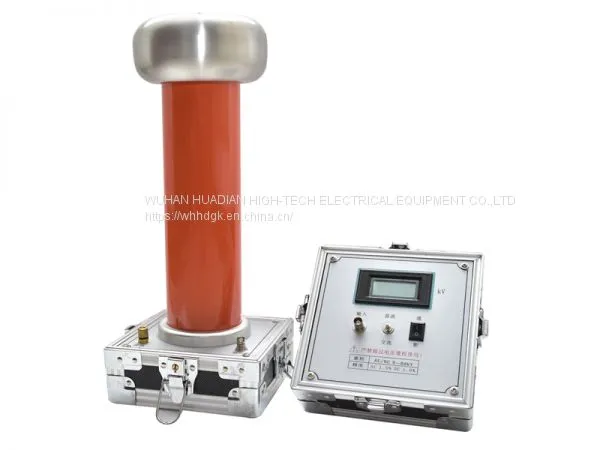

Resistance-capacitance Voltage Divider
Brief introduction
HFRC series voltage divider is resistance-capacitance equipotential shielding voltage divider high voltage measurement device., which is the first choice to instead of the high voltage electrostatic voltage meter, mainly used for power frequency high voltage measurement, with the features of simple operation, intuitive display, high accuracy, small volume and light weight.
Product features
◆Directly display the actual voltage value of the tested equipment.
◆Use shielding cable connect the display meter and voltage divider. People can read numbers outside the safty distance to avoid security risks.
◆High input impedance voltage divider, good linearity, use special shielding technology to reduce high voltage influence to display value, achieving high stability and linearity.
◆Use high accuracy linear resistance with good linearity and high accuracy.
Product parameter
Measurement Range |
AC/DC 0~500kV |
Capacitance |
200~1000pF |
Divider Ratio |
1000:1 |
Voltage Factor |
0.01%kV |
Measurement Accuracy |
AC±1% DC±0.5% |
High Voltage Impedance |
100~2000MΩ |
