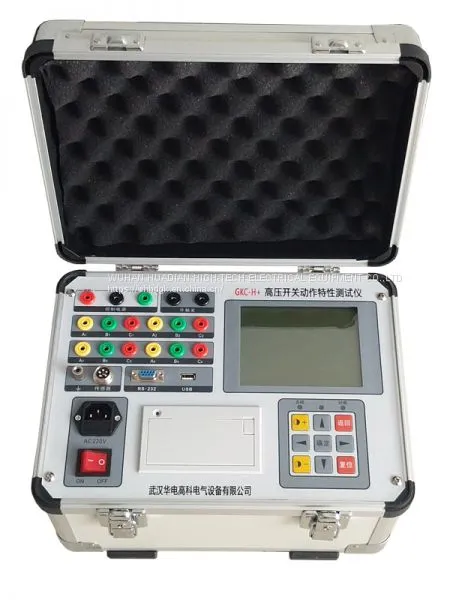

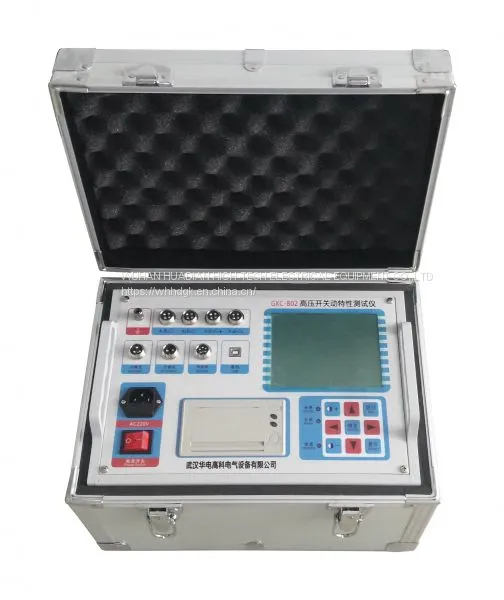

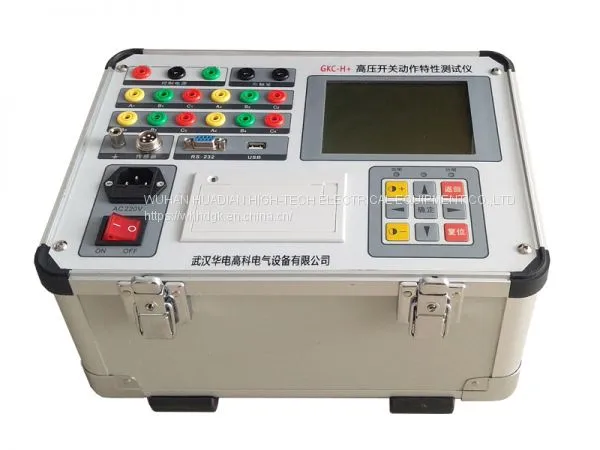

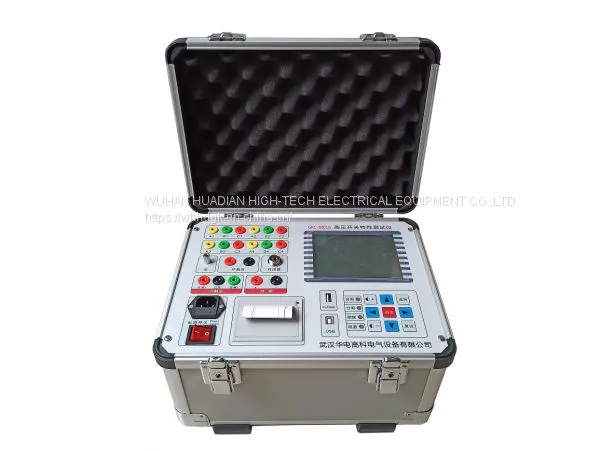

High Voltage Switch Dynamic Characteristic Tester
Brief introduction
GKC-H high voltage switch dynamic characteristic tester is a special equipment developed by our company to meet the needs of a variety of special high-voltage switching action characteristics test.
Product features
◆The master machine is industrial controlling computer.
◆Can test for SIEMENS graphite contact switch, can reliably test the dynamic resistance waveform of the 6 ports of the graphite contact switch.
◆Time: 12 ports inherent fracture points, closing time is synchronization in and between phase.
◆Spring: spring time, spring times, spring process, spring waveform.
◆Speed: opening and closing speed, maximum speed, speed waveform.
◆Stroke: over stroke, overshoot stroke.
◆Current: current value and waveform graph of opening and closing coil.
◆Reclosing: set interval time value of reclosing, metal short connection time, no current interval time.
◆Switch action one time, can get all data and graph.
◆With U disk interface, can directly save data to U disk.
◆Chinese menu, easy to use. Full Chinese built-in printer, can print all data and graphs.
Model classification
Model |
Measurement Range |
Sensor Configuration |
Built-in Power Supply |
Channels |
Printer |
GKC-H |
Oil, vacuum, SF6 |
Straight line, rotation |
Have |
6 |
Have |
GKC-7000 |
Vacuum, SF6 |
Straight line, rotation, displacement |
Have |
12 |
Have |
GKC-8000 |
Vacuum, SF6 |
Straight line, rotation |
Have |
12 |
Have |
Product parameters
Output Power Supply |
220V±10%; 50Hz±10% |
Time |
4000.0ms; resolution: 0.1ms |
Atmospheric Pressure |
86~106kP |
Speed |
20.0ms; resolution: 0.01ms |
Temperature |
-10~40℃ |
Route |
800mm; resolution: 0.1mm |
Humidity |
≤80%RH |
Current |
20A; resolution: 0.01A |
Built-in Power Supply |
220V/10A |
