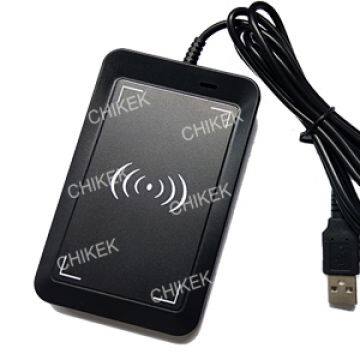

Help CenterDual Frequency LF & HF RFID Reader Writer, 125KHz& 134.2KHz and 13.56MHz, Smart Card Reader
Related Products
-
USB HID MIFARE Reader, RFID MIFARE DESFire NFC Desktop Reader, ISO14443ANegotiableMOQ: 1 Piece -
USB HID Keyboard Interface MIFARE Reader, ISO14443A MIFARE DESFire NFC TAG RFID ReaderNegotiableMOQ: 1 Piece
-
RS232 Port RFID Reader Writer, RS232 NFC Reader, 13.56MHz Smart Card Desktop ReaderNegotiableMOQ: 1 Piece
-
USB Port Contact/Contactless Smart Card RFID Reader Writer, 13.56MHz PSAM Card ReaderNegotiableMOQ: 1 Piece
-
USB Contactless IC Card RFID Reader, MIFARE DESFire Smart Card Desktop Reader, 13.56MHzNegotiableMOQ: 1 Piece
CHK302W-LF&HF Dual Frequency and Dual communication port RFID Reader/Writer
support 125KHz& 134.2KHz and 13.56MHz smart cards/tags Read/Write or Read only UID of data; Available to do different RFID data output working mode via software setup functions
Key Features:
Frequency supporting 125 kHz, 134 kHz and 13,56 MHz;
Compliant with ISO11784/11785, ISO/IEC14443 A/B, ISO/IEC15693, ISO18092 international Standard;
Dual-communication interface with USB virtual and USB HID keyboard emulation;
Working mode available with Read/Write or Read UID only;
Support to Read/Write contactless smart cards including MIFARE Classic, MIFARE Ultralight/Ultralight C, NFC NTAG tags, I CODE SLI/SLI S, Fujitsu MB89R112A metal tags, etc
Support DES / 3DES / AES / MAC encryption algorithm;
Full Support MIFARE® DESFire standard Data file, Back-up Data file, Value file, Linear Record file, Cyclic Record file and Transaction MAC file creating, etc;
Support KEY Authenticate,get KEY Version, change KEY, etc;
Available to do different RFID data output working mode via software setup functions;
Internal LED and BUZ indication for working status
Technical Parameters:
Electrical Specification | |
Power supply | DC 5V from USB, |
Power consumption | Max current:<50mA, Standby current: <1 mA |
Operation frequency | 125KHz& 134.2KHz and 13.56MHz |
Baudrate | 9600~115200 bit/s ( default 115200bps) |
Interface | USB Virtual and USB HID keyboard emulation |
Antenna | Internal |
Reading range | Up to 5 cm ~ 8 cm( depends on antenna and cards) |
Mechanical Specifications | |
Dimension | 110mmx70mmx18mm (LxWxH) |
Weight | 50g |
Material | ABS, Black gloss surface |
Environmental Conditions | |
Operation temperature | -20°C～ +80°C |
Storage temperature | -40°C～ +85°C |
Humidity | Relative humidity 5%～95% |
Supported Standard/ Tags | |
125 KHz | EM4100/EM4200 and compatible cards (read UID only) |
134.2 KHz | HITAG S256, HITAG S2048, HITAG 1 (read&write) |
ISO14443 A | Read/write or Read UID only: MIFARE® Classic 1K /4K, F08, MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE DESFire® EV1/EV2/EV3, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B | SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 | EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) , Fujitsu MB89R112A |
SDK information | |
Demo software | WINDOWS, C# language |
Files | Comprotocol document API document User Manual Demo.exe |
